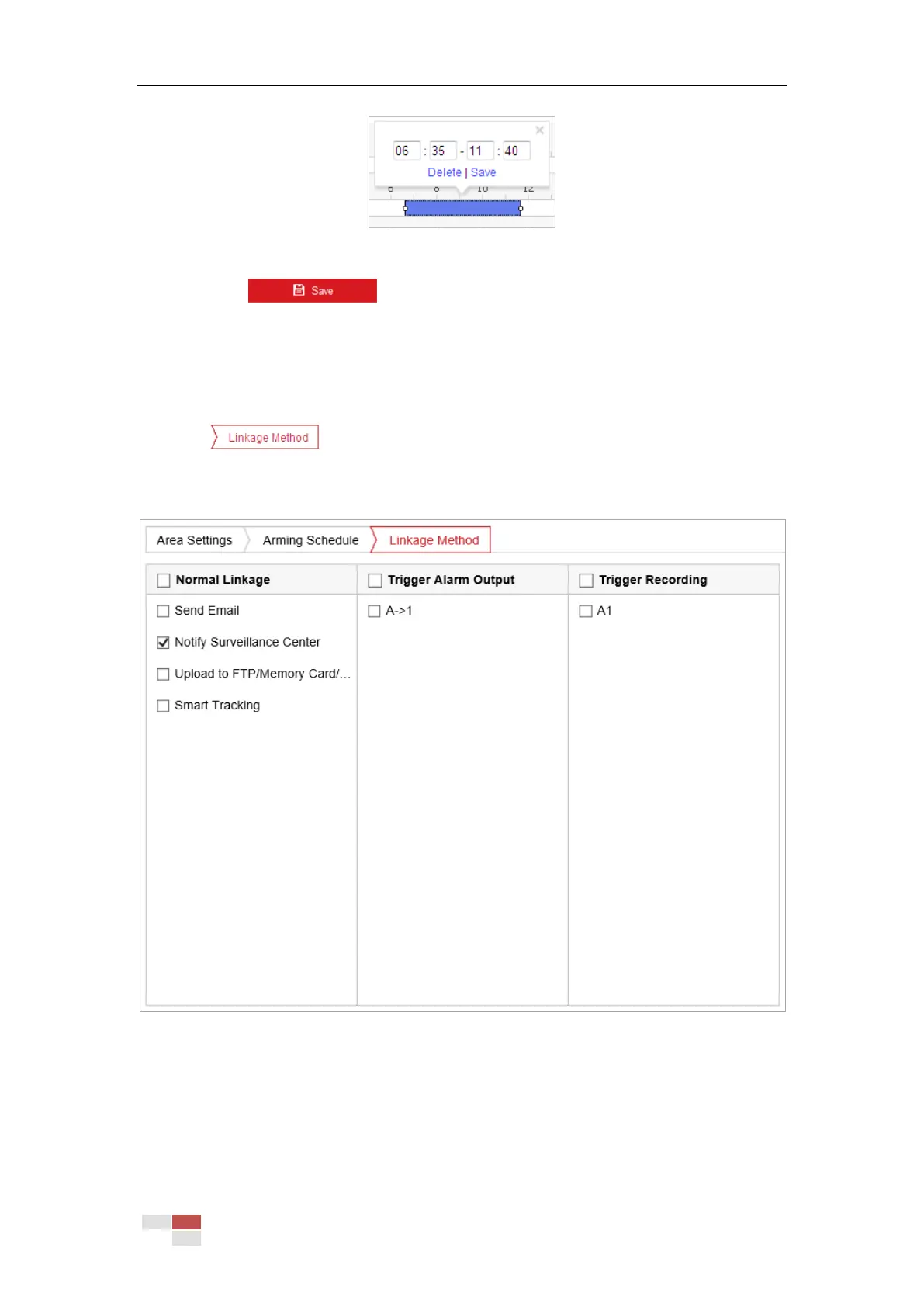

Figure 5-14 Segment Arming Settings
(5) Click to save the settings.
Note:
The time of each period cannot be overlapped. Up to 8 periods can be configured for each
day.
5. Set the Alarm Actions for Motion Detection.
Click tab to enter the Linkage Method interface.
You can specify the linkage method when an event occurs. The following contents are about
how to configure the different types of linkage method.
Figure 5-15 Linkage Method
Check the checkbox to select the linkage method. Send Email, Notify Surveillance Center,
Upload to FTP/Memory/NAS, Smart Tracking, White Light Flashing, Audible Warning,
Trigger Alarm Output, and Trigger Recording are selectable.
Send Email
Send an email with alarm information to a user or users when an event occurs.
