3.2 Connect to SFP Combo
1) Insert your optical module into the SFP port (G1-F/G2-F).

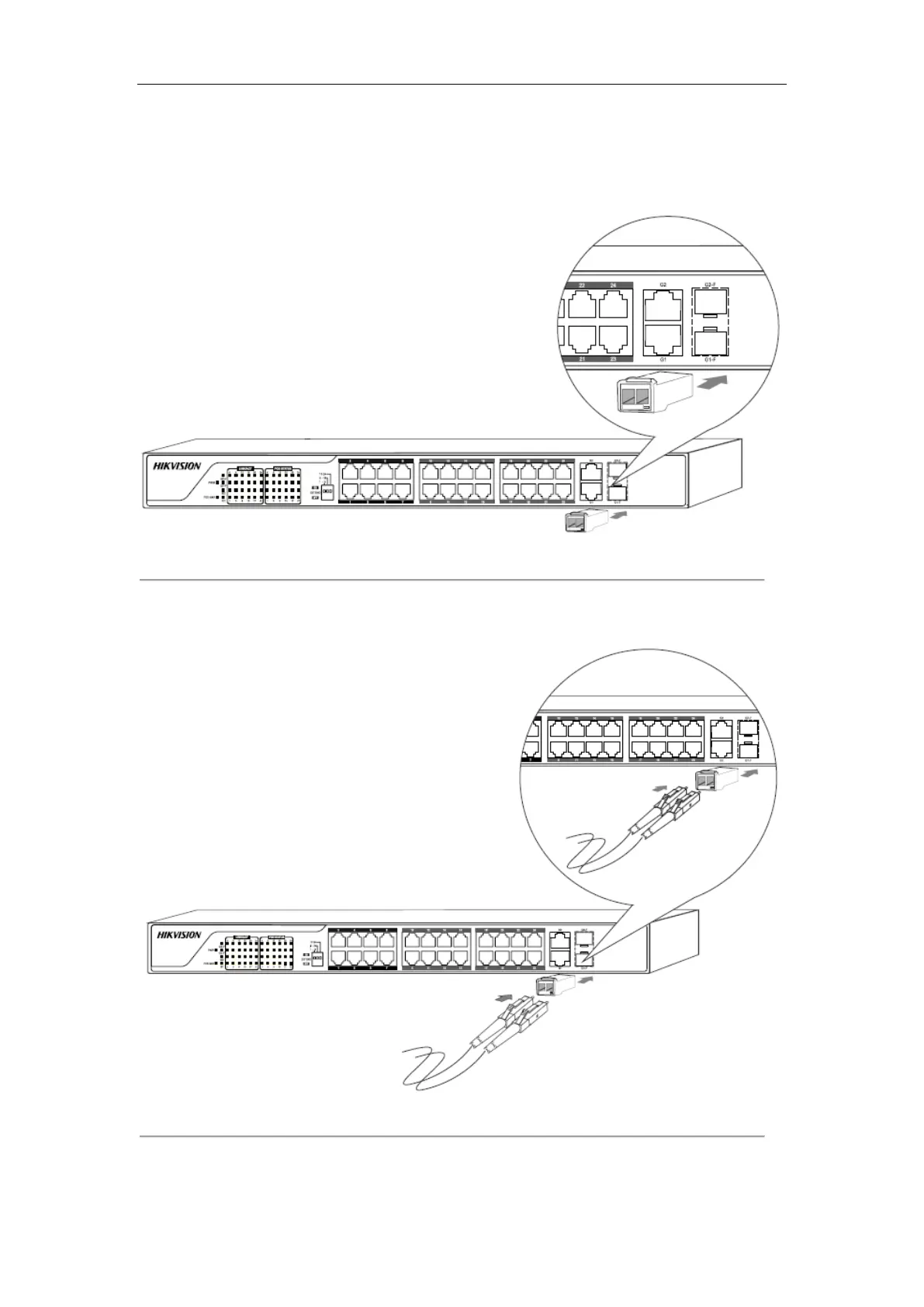

Figure 3.2 Insert optical module
2) Insert the remote optical fiber to the module correctly. (RX fiber into the port labeled RX on the module; and
TX fiber into the TX)
Figure 3.3 Insert optical fiber
