User Manual of Network Video Recorder
8

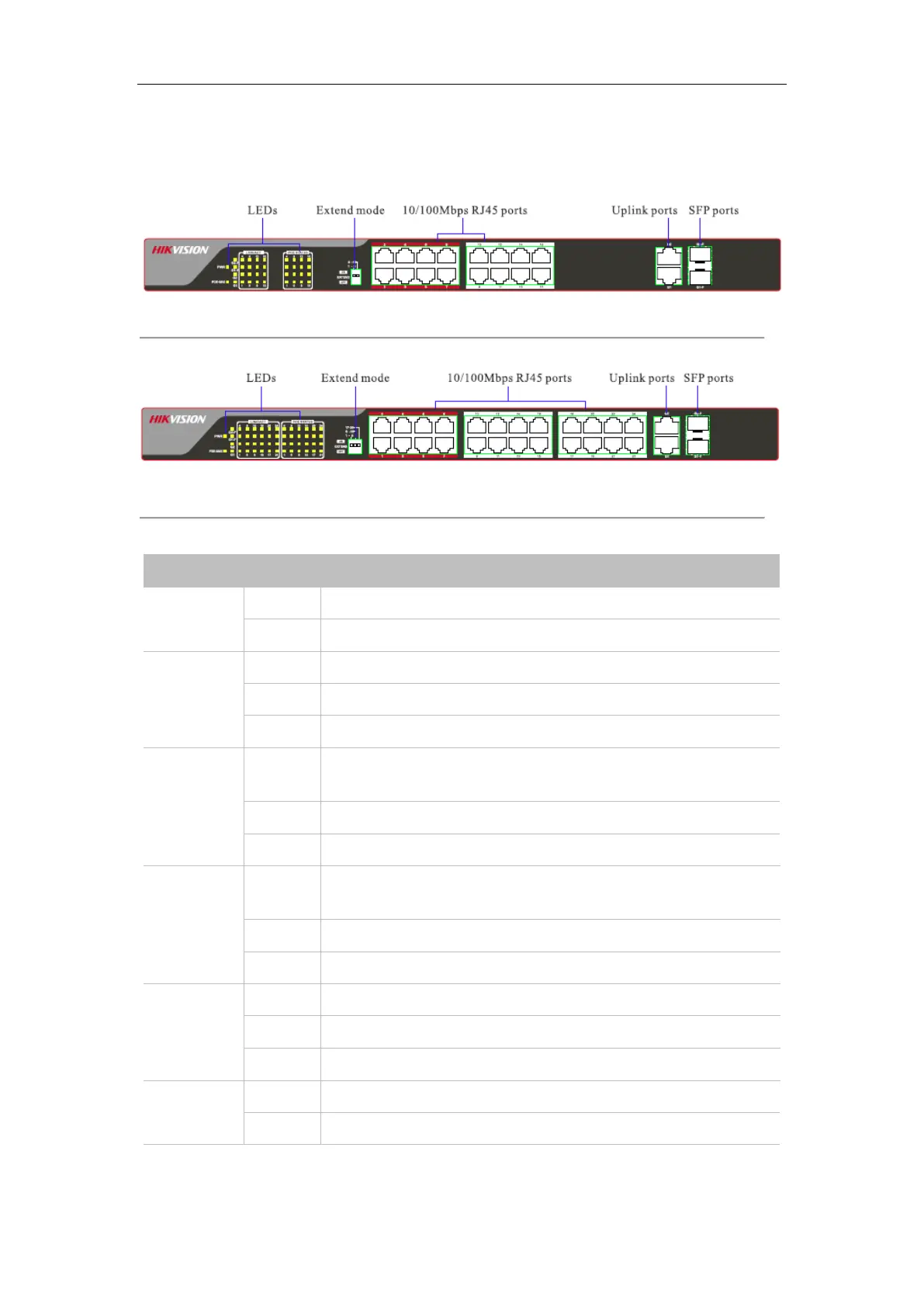

1.3 Front Panel
Figure 1.1 DS-3E0318P-E
Figure 1.2 DS-3E0326P-E
Table 1.1 Description of LEDs
LED Status Description
PWR
Solid The device is connected to the power supply properly.
Off The device is connected improperly or not connected to the power supply.
LINK/ACT
Solid The corresponding port is connected properly.
Blinking The corresponding port is transmitting data.
Off The corresponding port is connected improperly or not connected.
POE STATUS
Solid
The corresponding port is connected with a PD (Powered Device) and powers
the PD properly.
Blinking The PoE output of the corresponding port exceeds 30W.
Off The corresponding port is no PoE power output or no PD connected.
POE-MAX
Solid
The PoE power gets to the alarm value, and the available PoE power is less
than 6W.
Blinking The PoE power gets to the maximum.
Off The PoE power works properly, and the available PoE power is more than 6W.
G1/G2
Solid The corresponding port is connected.
Blinking The corresponding port is transmitting data…
Off The corresponding port is connected improperly or disconnected.
G1-F/G2-F
Solid The corresponding port is connected properly.
Off The corresponding port is connected improperly or not connected.
*If G-F port (G2-F/G2-F) is connected, LEDs of G (G1/G2) ports will not light.
