HIKVISION DS-3E1326P-EI User Manual

DS-3E1xxxP Series 100 Mbps PoE Switches Quick Start Guide
QSG DS-3E1xxxP Switch 012721NA 7
2 Introduction
2.1 Product Introduction
DS-3E1xxxP Series switches (hereinafter referred to as “the device”) are layer 2 PoE switches, providing
advanced PoE power supply technology on the basis of high-performance access. The switches support
client management, network topology management, link aggregation, port management, and so on. The
switches are suitable for small-scale LAN device access.
2.2 Packing List
DS-3E1x05/09P Series
DS-3E1318/26P Series
Switch
x 1
x 1
Power Adapter
x 1
-
AC Power Cord
x 1
x 1
Screw
-
x 4
L-Shaped Bracket
-
x 2
Quick Start Guide
x 1
x 1
2.3 Appearance
Different device models may have different appearances. The following pictures are for illustration only.
Front Panel

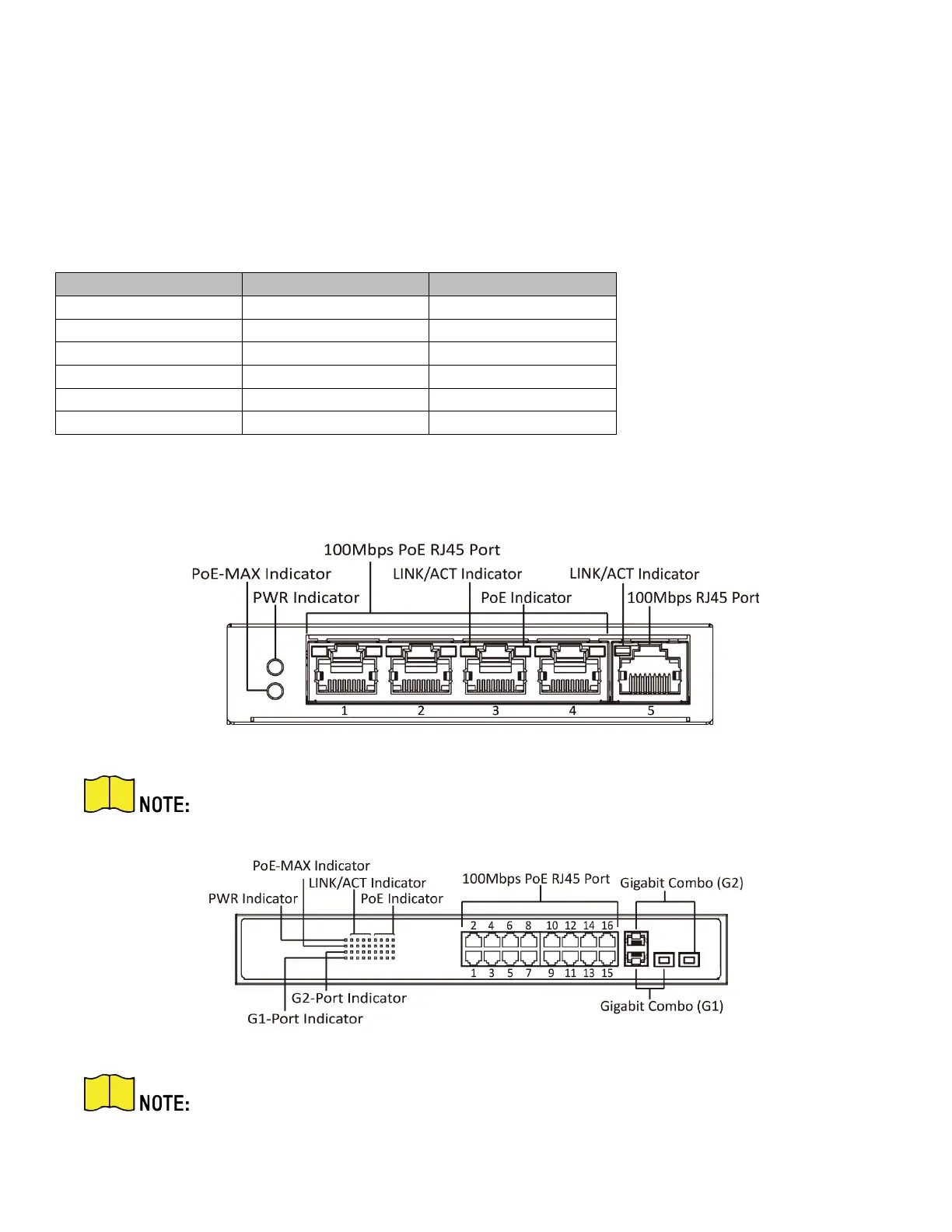

Figure 1-1 DS-3E1105P Series
The front panel of the DS-3E1309P switch is similar to that of the DS-3E1105P, with
differences on 8 100 Mbps PoE RJ-45 ports, and the No.9 port is a gigabit RJ-45 port.
Figure 1-2 DS-3E1318P Series
The front panel of the DS-3E1326P switch is similar to that of the DS-3E1318P, with
differences on the 24 100 Mbps PoE RJ-45 ports, 24 LINK/ACT, and 24 PoE indicators.

HIKVISION DS-3E1326P-EI Specifications

General

Switch type	-
Product color	Blue
Housing material	Metal
Combo SFP ports quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Forwarding rate	6.5472 Mpps
MAC address table	16000 entries
Input current	6.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	400 W
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) power per port	30 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	221 mm
Width	440 mm
Height	44 mm
Weight	2830 g
