HIKVISION DS-7100NI-K1/W/M Series Quick Start Guide

1) Connect one end of data cable to the device motherboard.
2) Connect the other end of data cable to HDD.
3) Connect one end of power cable to HDD.
4) Connect the other end of power cable to the device motherboard.

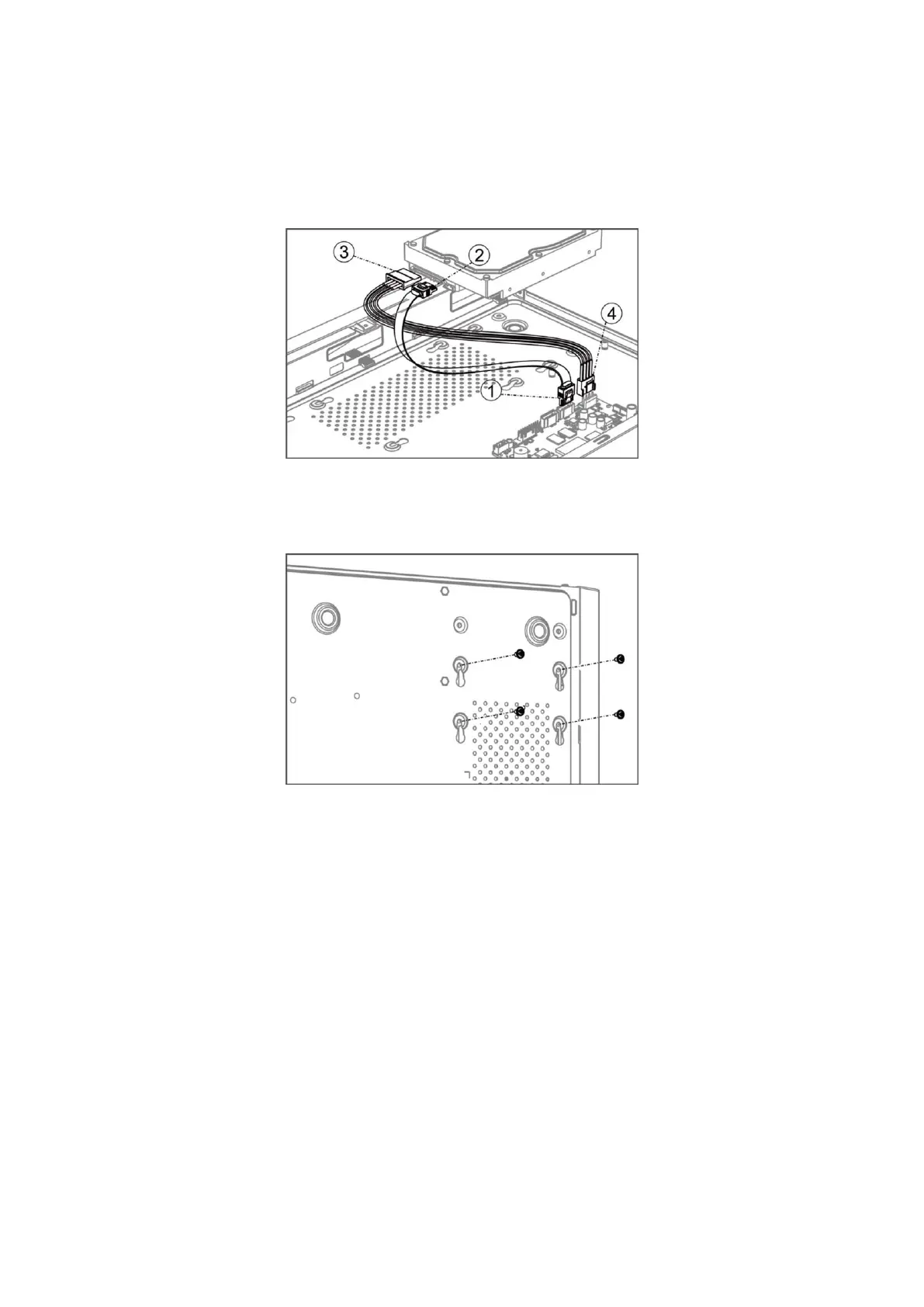

Figure 2-2 Connect Cables
3. Set the device up, match HDD screw threads with the reserved holes on the device bottom, and
fix HDD with screws.
Figure 2-3 Fix HDD to Device Bottom
4. Optional: Repeat the steps above to install other HDDs.
5. Reinstall the device cover and fasten screws.
