Network Video Recorder User Manual
104

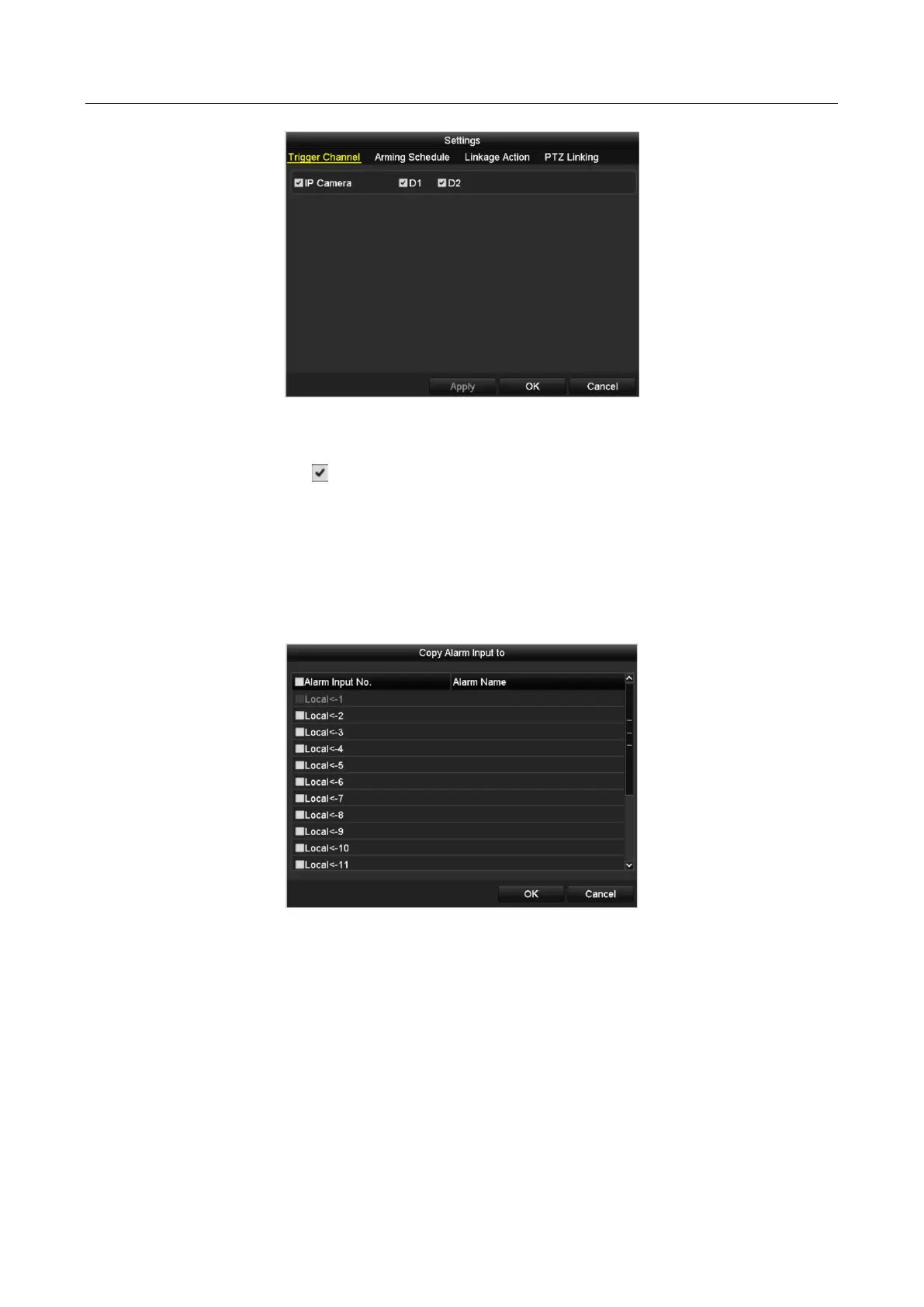

Figure 5-16 Alarm Settings
5) Choose the alarm triggered recording channel.
6) Check the checkbox to select channel.
7) Click Apply to save settings.
8) Click OK to back to the upper level menu.
Repeat the above steps to configure other alarm input parameters.
If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input
number.
Figure 5-17 Copy Alarm Input
Step 3 Edit the Alarm triggered record in the Record/Capture Schedule setting interface. For the
detailed information of schedule configuration, see Chapter Configuring Recording and
Capture Schedule.
