HIKVISION DS-7104NI-Q1/M User Manual

1.2 Login
1.2.1 Set Unlock Paern
Admin user can use the unlock paern to login. You can congure the unlock paern aer the
device is acvated.
Steps
1. Use the mouse to draw a
paern among the 9 dots on the screen. Release the mouse when the
paern is done.
Note
• The
paern shall have 4 dots at least.
• Each dot can be connected for once only.
2. Draw the same paern again to conrm it. When the two paerns match, the paern is
congured successfully.

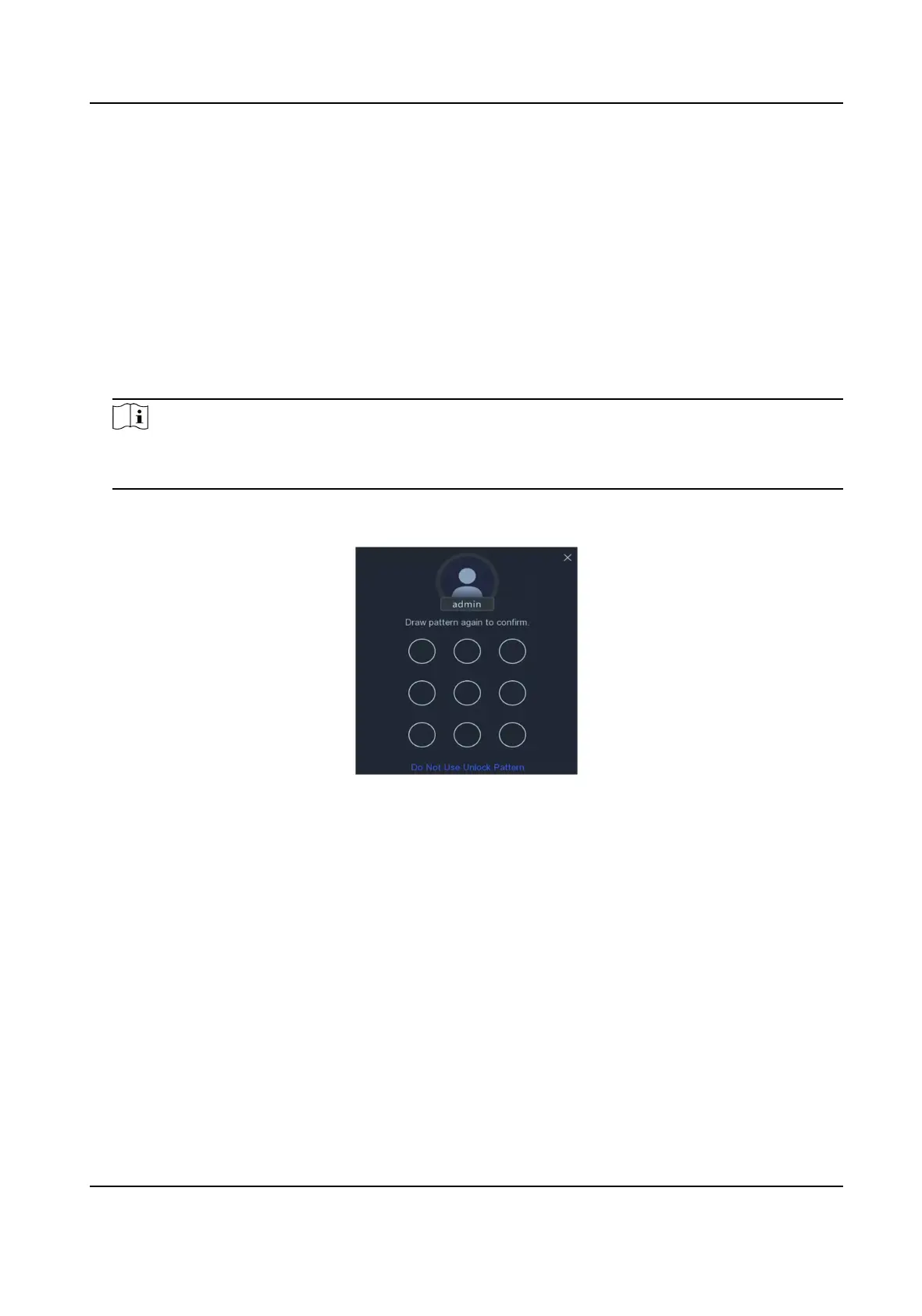

Figure 1-2 Set Unlock Paern
1.2.2 Log in via Unlock
Paern
Steps
1. Right click the mouse on live view interface.
Network Video Recorder User Manual
2

HIKVISION DS-7104NI-Q1/M Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+
HDMI output	Yes
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Product color	Black
Rack capacity	1U
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (max)	18 W

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
