HIKVISION DS-7104NI-Q1/M User Manual

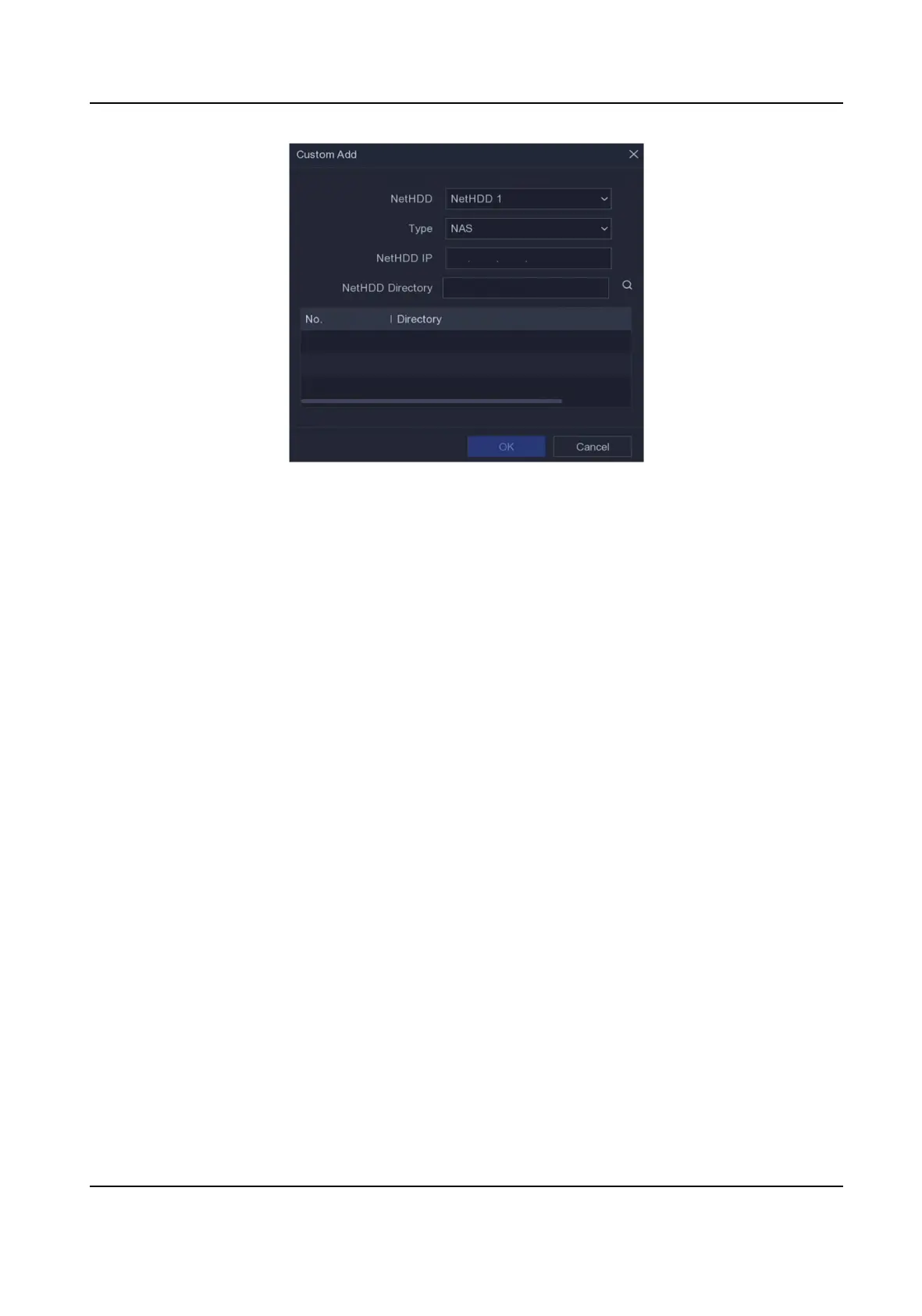

Figure 5-16 Add NetHDD
7. Select NAS disk from the list, or manually enter the directory in NetHDD Directory.
8. Click OK. The added NetHDD will be displayed in the storage device list.
5.4.2
Congure Recording Schedule
Video recorder will automacally start/stop recording according to the congured schedule.
Congure
Connuous Recording
Steps
1. Go to
Conguraon → Record → Parameter .
2. Set the connuous main stream/sub-stream recording parameters for the camera. Refer to
Congure Recording Parameter for details.
3. Go to
Conguraon → Record → Schedule .
4. Select recording type as Connuous. Refer to Edit Schedule for details.
Congure
Event Recording
You can congure the recording triggered by the moon detecon, line crossing detecon, and
intrusion detecon.
Steps
1. Go to
Conguraon → Event → Smart Event .
2. Congure the event detecon and select the channels to trigger the recording when an event
occurs. Refer to Smart Event for details.
3. Go to
Conguraon → Record → Parameter .
Network Video Recorder User Manual
32

HIKVISION DS-7104NI-Q1/M Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+
HDMI output	Yes
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Product color	Black
Rack capacity	1U
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (max)	18 W

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
