HIKVISION DS-7104NI-Q1/M User Manual

4. Set the
connuous main stream/sub-stream recording parameters for the camera. Refer to
Congure Recording Parameter for details.
5. Go to Conguraon → Record → Schedule .
6. Select recording type as Event. Refer to Edit Schedule for details.
Edit Schedule
Steps
1.
Go to
Conguraon → Record → Schedule .

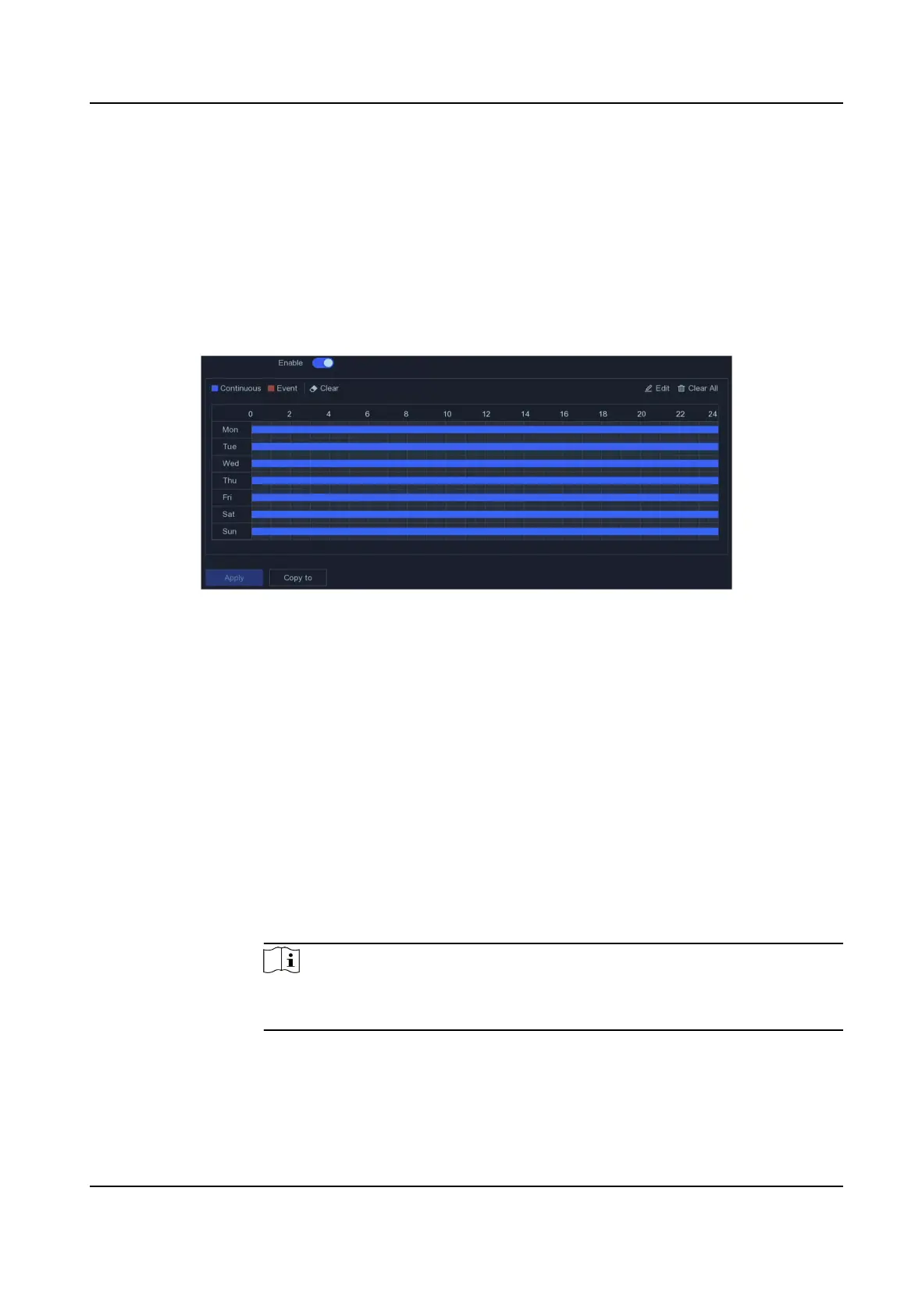

Figure 5-17 Recording Schedule
Connuous
Connuous recording.
Event
Recording is triggered by events.
2. Select a camera in Camera No..
3. Turn on Enable.
4.
Congure the recording schedule.
Edit
Schedule
a. Click Edit.
b. Select a day to congure in Weekday.
c. To set an all-day recording schedule, check All Day and select schedule type.
d. To set other schedules, uncheck All Day, and set Start/End Time and
schedule type.
Note
Up to 8 periods can be congured for each day. And the me periods
cannot be overlapped with each other.
e. Click OK to save the sengs and go back to upper level menu.
Network Video Recorder User Manual
33

HIKVISION DS-7104NI-Q1/M Specifications

General

Input bandwidth	40 Mbit/s
Output bandwidth	60 Mbit/s
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920x1080, 1280x1024, 1280x720, 1024x768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+
HDMI output	Yes
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Product color	Black
Rack capacity	1U
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (max)	18 W

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
