For remote web browser access. The default value is 80.
Mulcast IP
Mulcast can be congured to enable live view for cameras that exceed the maximum number
allowed through network. A mulcast IP address covers Class-D IP ranging from 224.0.0.0 to
239.255.255.255 and it is recommended to use the IP address ranging from 239.252.0.0 to
239.255.255.255.
When adding a device to the CMS
soware, the mulcast address must be the same as that of
the device.
RTSP Port
RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in
entertainment and communicaons systems to control streaming media servers. The port is 554
by default.
Output Bandwidth Limit
You can check the checkbox to enable output bandwidth limit.
Output Bandwidth
Aer enable the output bandwidth limit, input the output bandwidth.
Note
• The output bandwidth limit is used for the remote live view and playback.
• The default output bandwidth is the maximum limit.

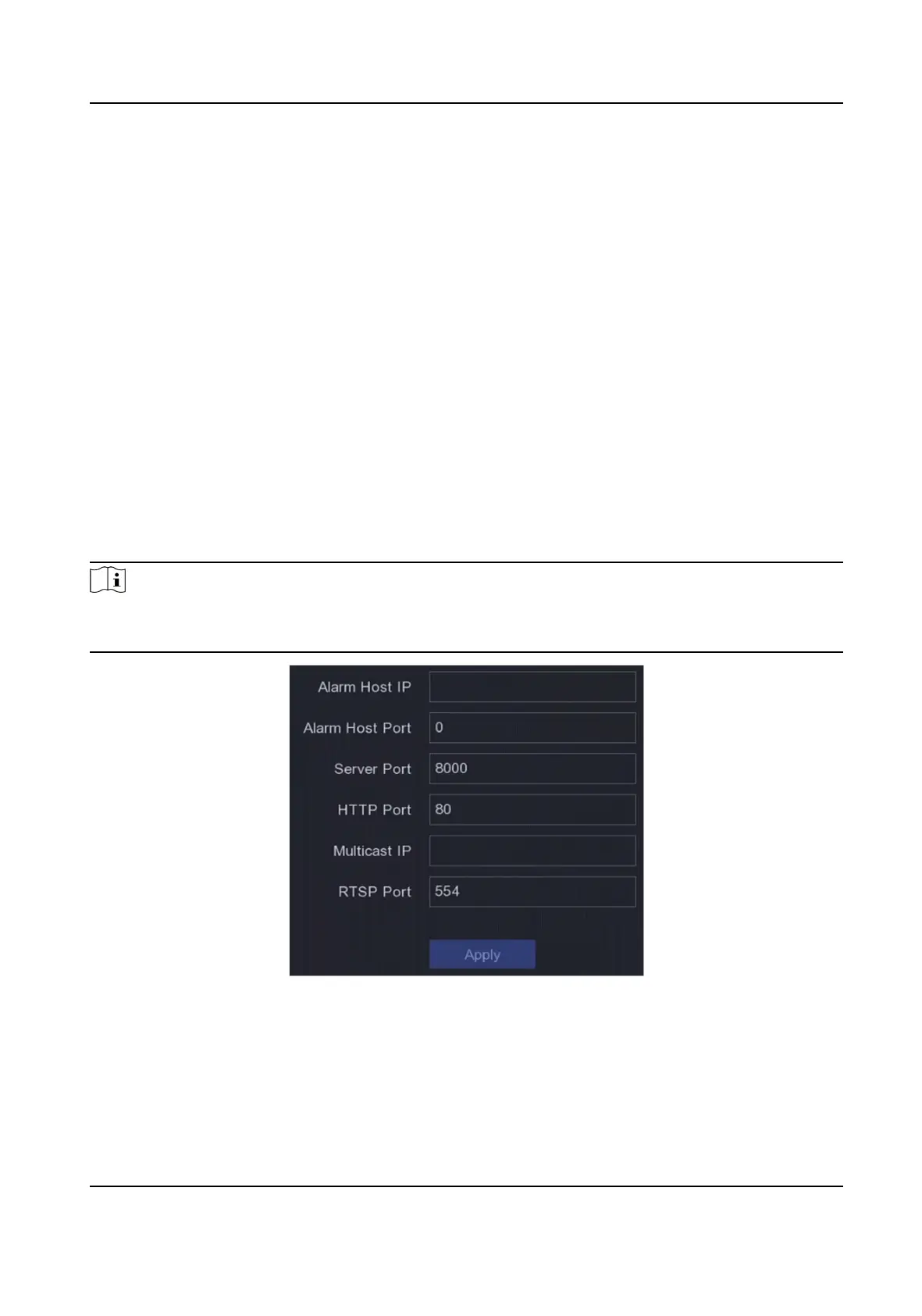

Figure 6-8 Port Sengs
Network Video Recorder User Manual
44

HIKVISION DS-7108NI-Q1/M Specifications

General

DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Video input channels	8 channels
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Maximum HDD capacity	6000 GB
Video compression formats	H.264, H.265

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
