DS-72xxHUI-Kx, DS-72xxHQI-Kx Digital Video Recorder (DVR) User Manual
UM DS-72xxHUI-Kx, DS-72xxHQI-Kx 062817NA 23
2.3.1 Configuring the Unlock Pattern
After the device is activated, enter the following interface to configure the device unlock pattern.

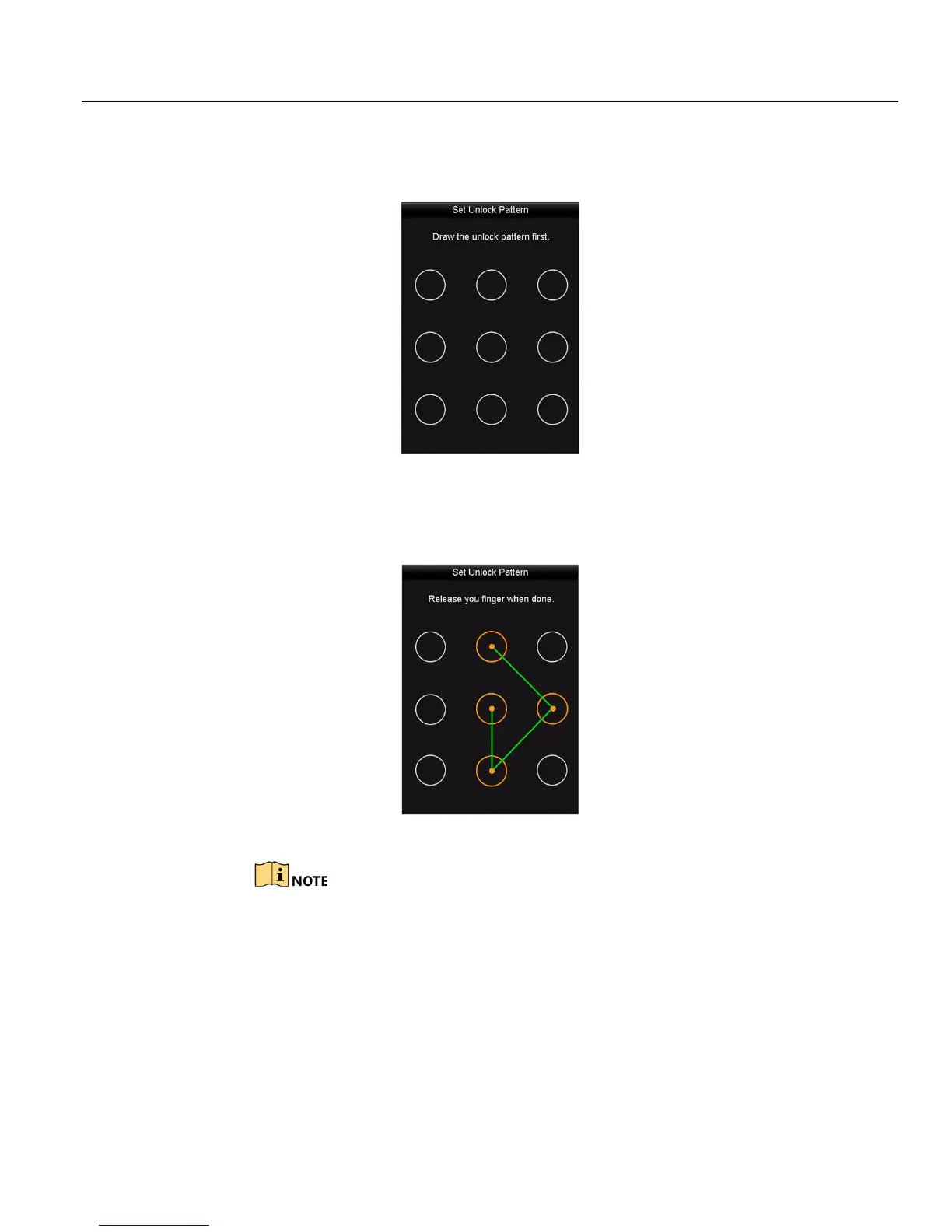

Figure 16, Set Unlock Pattern
1. Use the mouse to draw a pattern among the nine dots on the screen. Release the mouse when the
pattern is done.
Figure 17, Draw the Pattern
Connect at least four dots to draw the pattern.
Each dot can connect only once.
2. Draw the same pattern again to confirm it. When the two patterns match, the pattern is successfully
configured.
