HIKVISION DS-7208HVI-S & 7216HVI-S User‟s Manual
70

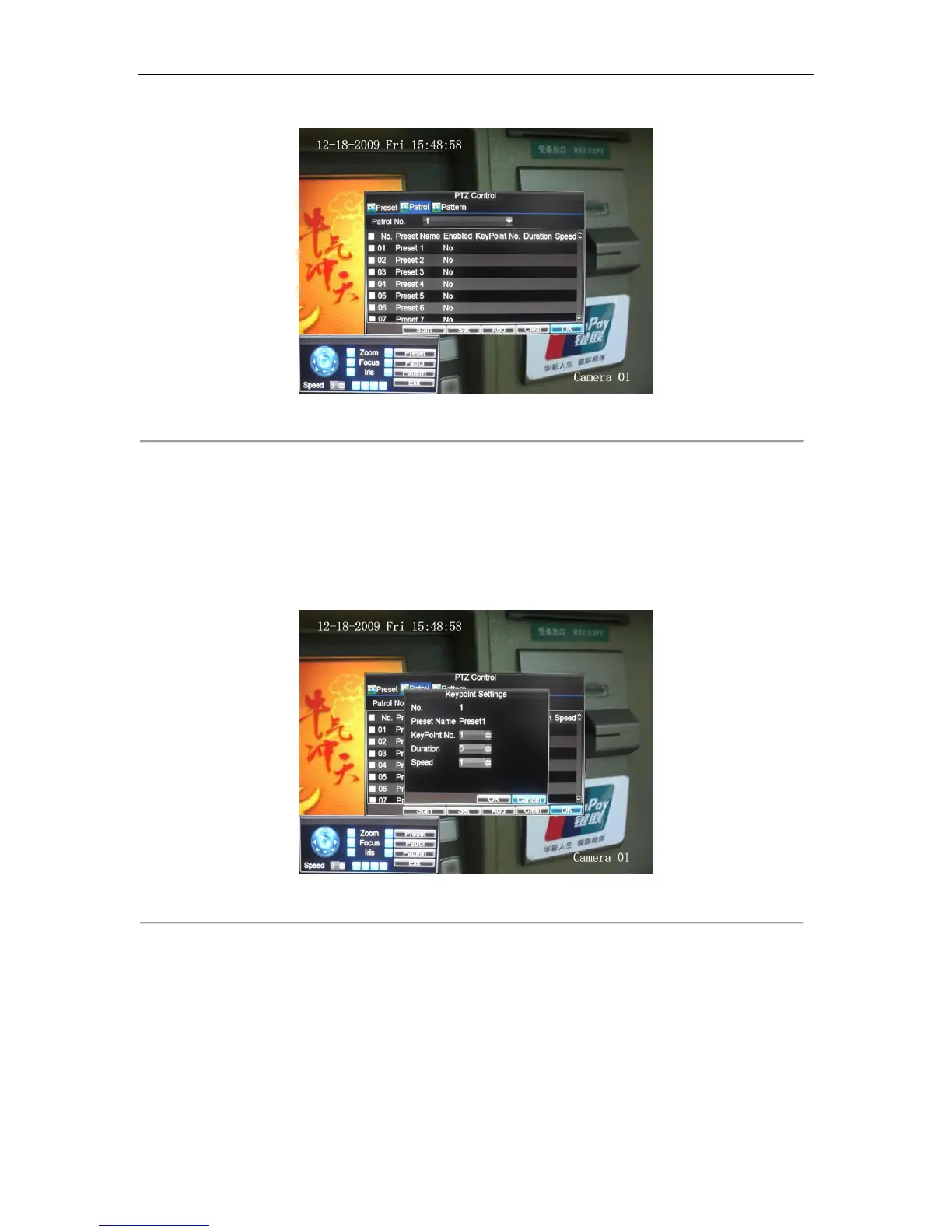

Figure 5. Patrol Management Menu
3. In the Patrol Management menu, you may:
• Configure Patrol:
1. Select a Patrol Number to set.
2. Select valid presets (See Customizing Presets) and click the Set button to enter the Patrol
configuration menu. A sequence should have at least 2 valid presets.
3. Set the Key Point No., Duration, and Speed (Figure 6). The Key Point No. determines
the order at which the PTZ will follow while cycling through the patrol. The Duration
refers to the time span to stay at the corresponding key point. The Speed defines the rate
at which the PTZ will move from one key point to the next.
Figure 6. Patrol Configuration Menu
4. Click OK to return to Patrol Management menu and repeat steps 2-3 to configure other
key points.
5. After all key points have been configured, click OK to save and exit menu.
• Clear Patrol:
1. Select a valid Patrol Number.
2. Click the Clear button to delete patrol.
• Call Patrol:
1. Select a valid Patrol Number.
2. Click the Start button to call the patrol, select the stop button to stop the patrol, as shown
in Figure 7.
