HIKVISION DS-7208HVI-S & 7216HVI-S User‟s Manual
92

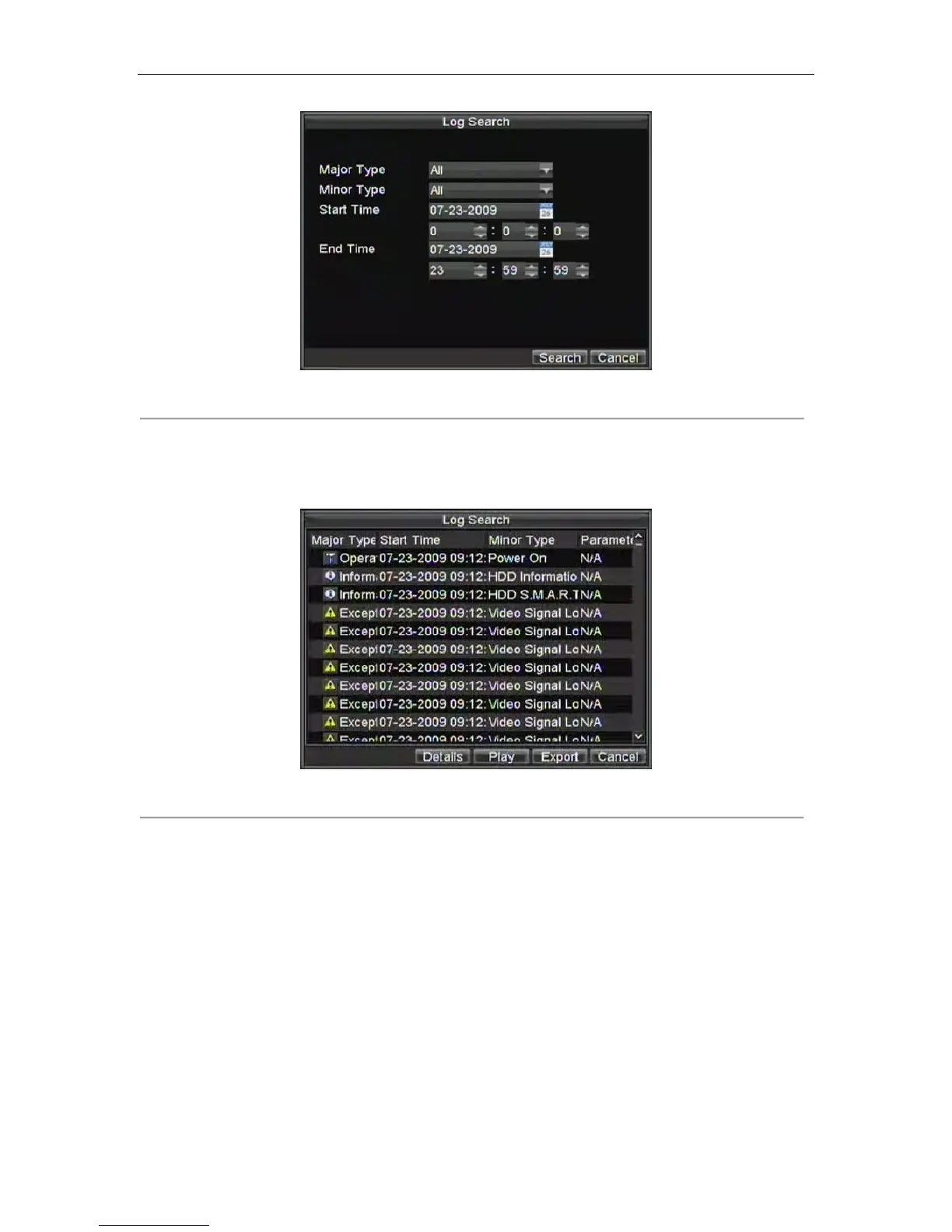

Figure 15. Log Search Menu
2. Set search parameters.
3. Click the Search button to begin search. If logs matching the search criteria are found, it will be
displayed in a list similar to that of Figure 16.
Figure 16. Log Search Results
4. To view more detail information about a particular log entry, select the entry and click the Details
button.
5. If applicable, you may also view the associated video to the selected log entry by clicking the Play
button.
6. Log files can also be exported onto a USB device. To export a log file, connect a USB device to the
DVR, select the log file to export and click the Export button. This will take you to the Log Search
Export menu, shown below in Figure 17. Click the Export button to export log onto USB device. The
exported file will be named according to the time it was exported (i.e. 2000062991627.txt).
