Step 3 Configure the schedule.
Please refer to the step 4 of Chapter 5.2 Configuring Recording and Capture Schedule , while
you may choose Motion as the record type.
5.4 Configuring Alarm Triggered Recording and Capture
Purpose
Follow the procedure to configure alarm triggered recording or capture.
Step 1 Enter the Alarm Setting interface.
Menu > Configuration > Alarm

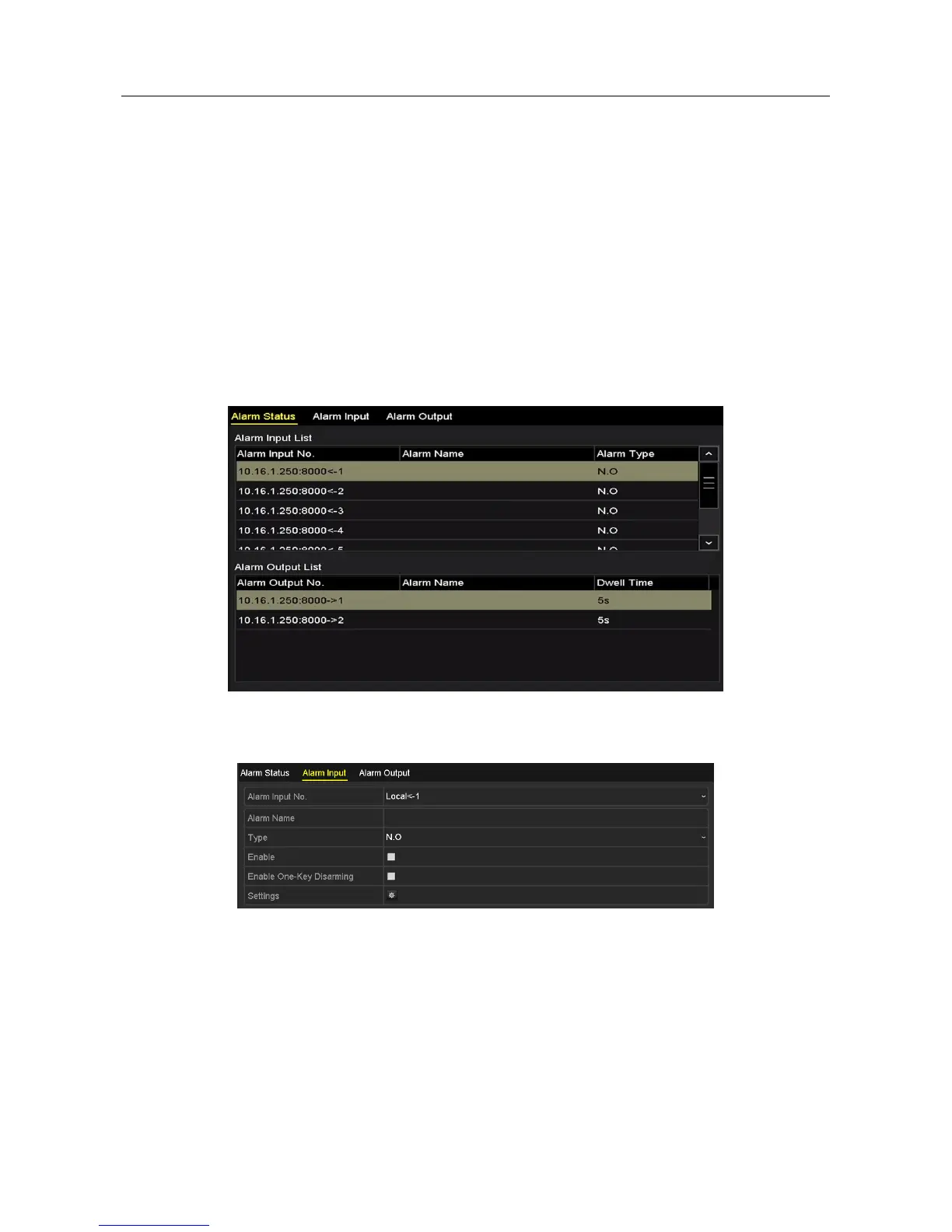

Figure 5-17 Alarm Settings
Step 2 Click Alarm Input tab.
Figure 5-18 Alarm Settings- Alarm Input
Step 3 Select Alarm Input No.
Step 4 Input Alarm Name.
Step 5 Select N.O (normally open) or N.C (normally closed) for alarm type.
Step 6 Check the checkbox of Enable to enable alarm.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
