HIKVISION DS-7216HQHI-F2/N User Manual

Digital Video Recorder User Manual
67

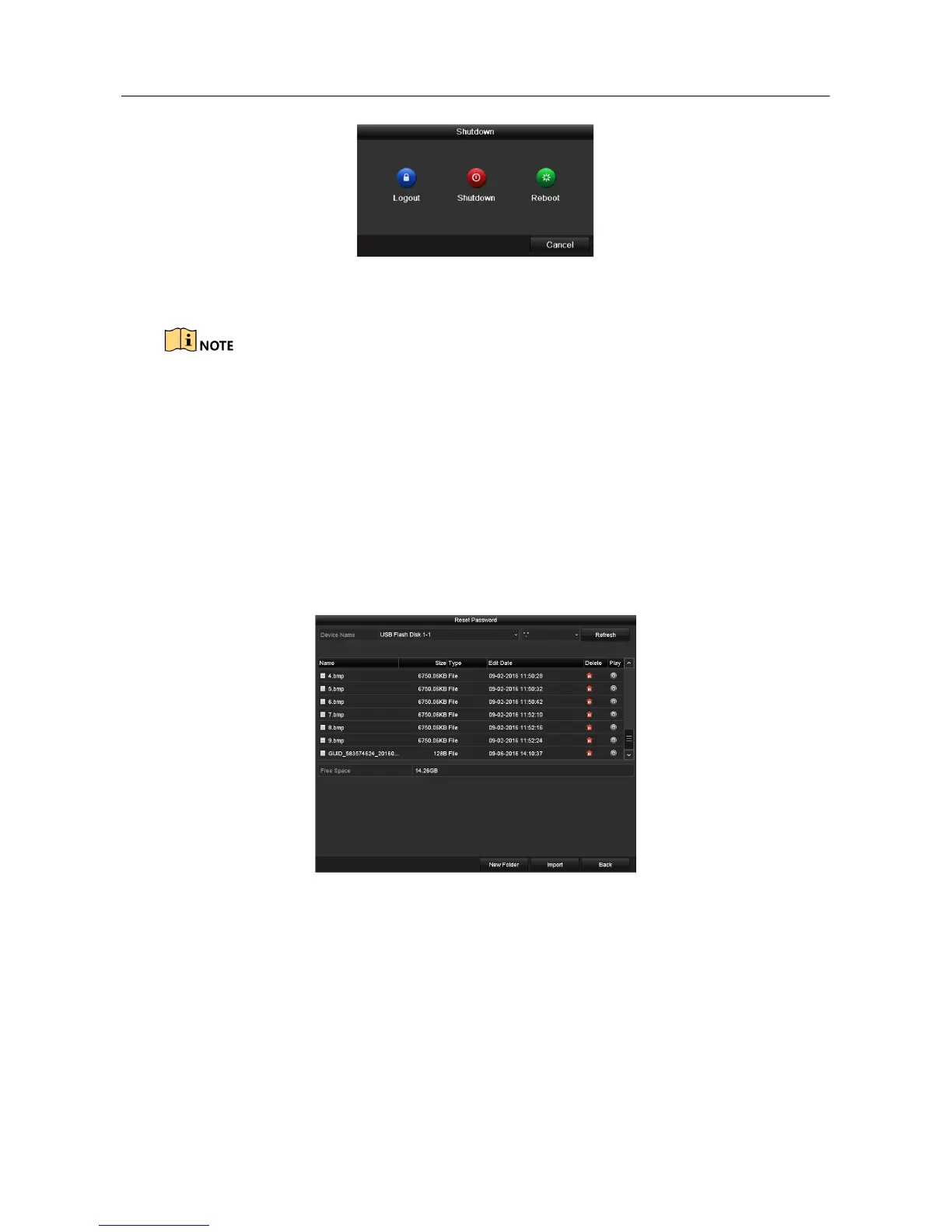

Figure 2-30 Logout
Step 2 Click Logout.
After you have logged out of the system, menu operation on the screen is invalid. It is required to
input a user name and password to unlock the system.
2.6 Resetting Your Password
Purpose
When you forget the password of the admin, you can reset the password by importing the GUID
file. The GUID file must be exported and saved in the local USB flash disk after you have activated
the device (refer to Chapter 2.2 Activating the Device).
Step 1 On the user login interface, click Forget Password to pop up the Import GUID interface.
Figure 2-31 Import GUID
Step 2 Select the GUID file from the USB flash disk and click Import button to pop up the Reset
Password interface.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
