HIKVISION DS-7216HQHI-F2/N User Manual

Digital Video Recorder User Manual
259

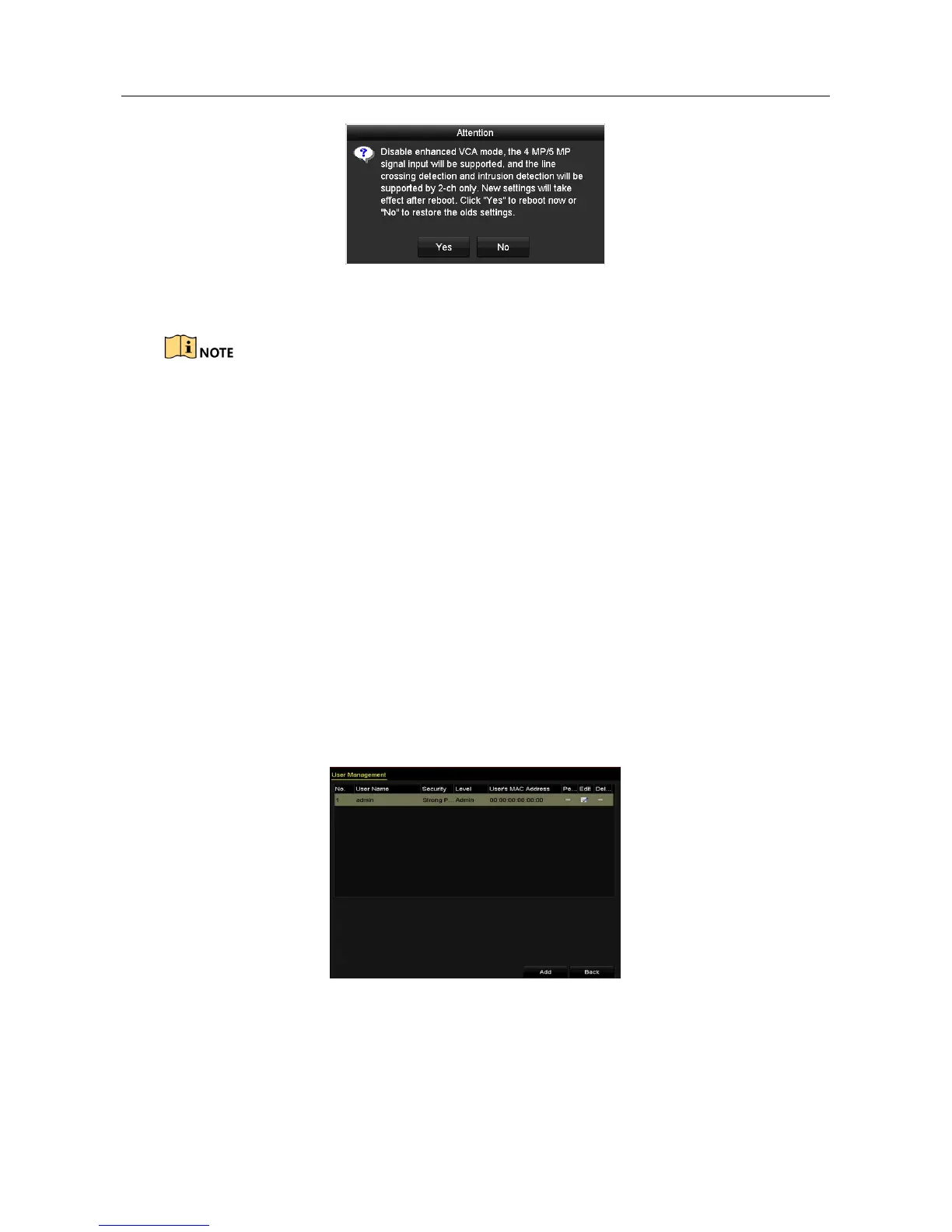

Figure 17-13 Disable Enhanced VCA Mode (2)
3) Click Yes to apply the function and reboot the device.
If you have configured 2K/4K output, or connected 4 MP/5 MP signal input already, when you
enable enhanced VCA mode and after the device reboots, the output resolution will decrease to
1080p, and the 4 MP/5 MP signal input will display no video.
Step 4 Click the Apply button to save the settings.
17.5 Managing User Accounts
Purpose
There is a default account in the DVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
17.5.1 Adding a User
Step 1 Enter the User Management interface.
Menu >Configuration>User
Figure 17-14 User Management Interface
Step 2 Click the Add button to enter the Add User interface.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
