Digital Video Recorder User Manual

198

Chapter 12 Network Settings

12.1 Configuring General Settings

Purpose

Network settings must be properly configured before you operate DVR over network.

Step 1 Enter the Network Settings interface.

Menu > Configuration > Network

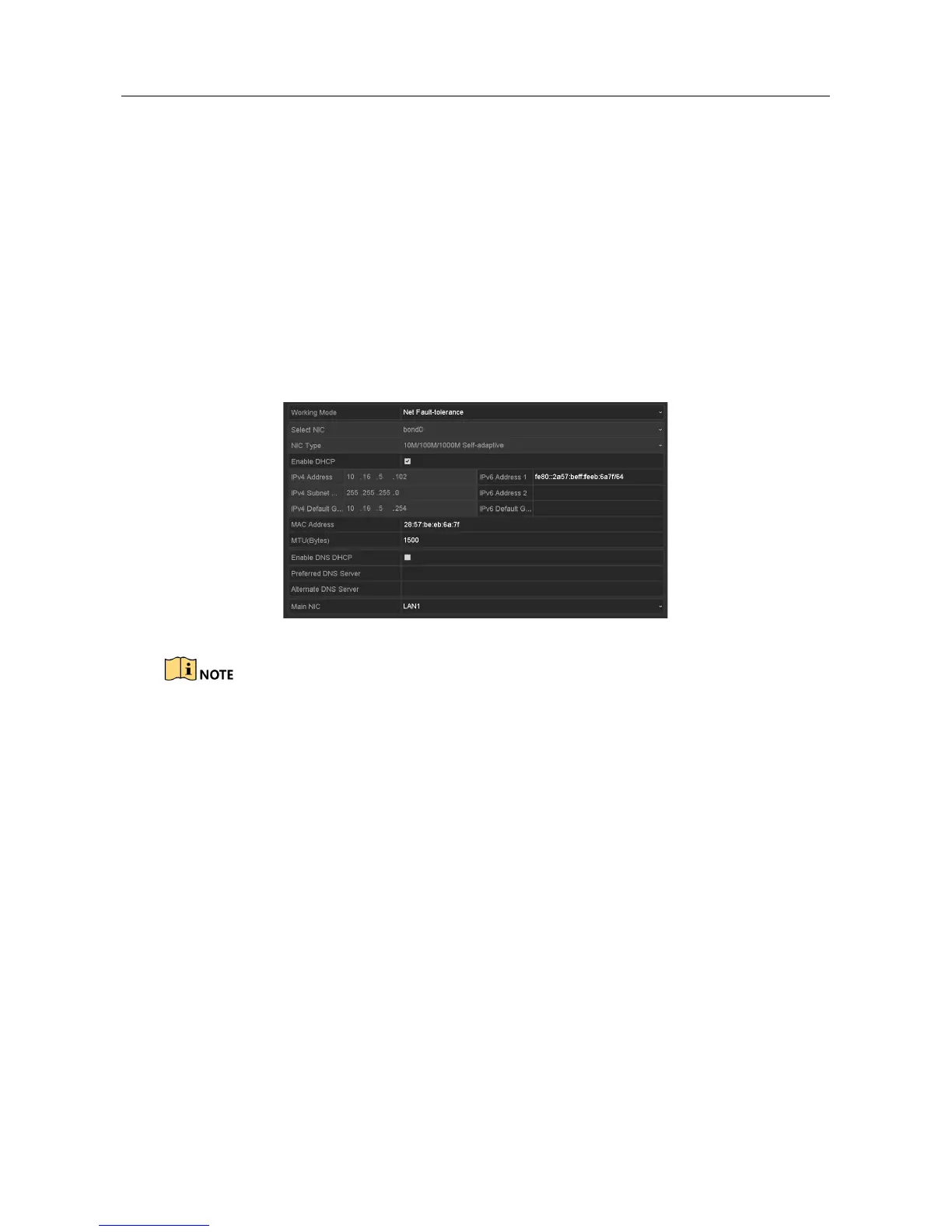

Figure 12-1 Network Settings Interface (1)

DS-8100HQHI-F/N and DS-7300/8100/9000HUHI-F/N series have 2 self-adaptive 10M/100M/1000M

network interfaces. For DS-8100HQHI-F/N series, three working modes are configurable:

multi-address, load balance and network fault tolerance. For DS-7300/8100/9000HUHI-F/N series,

only multi-address and network fault tolerance are configurable. Other models have 1

self-adaptive 10M/100M/1000M network interface or 1 self-adaptive 10M/100Mbps network

interface.

Step 2 Select the General tab.

Step 3 On the General Settings interface, you can configure the following parameters: Working

Mode (applicable for DS-8100HQHI-F/N and DS-7300/8100/9000HUHI-F/N series), NIC Type,

IPv4 Address, IPv4 Gateway, MTU, DNS Server and Main NIC.

Working Mode

There are two 10M/100M/1000M NIC cards provided by the DS-8100HQHI-F/N and

DS-7300/8100/9000HUHI-F/N series devices, and it allows the device to work in the

Multi-address, Load Balance and Net-fault Tolerance modes for DS-8100HQHI-F/N and

Multi-address and Net-fault Tolerance for DS-7300/8100/9000HUHI-F/N.
