2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Step 3 Enter the Record setting interface.
Menu> Record> Parameters
1) Select the Record tab.
2) Select Camera you want to configure.
3) Click More Settings button.

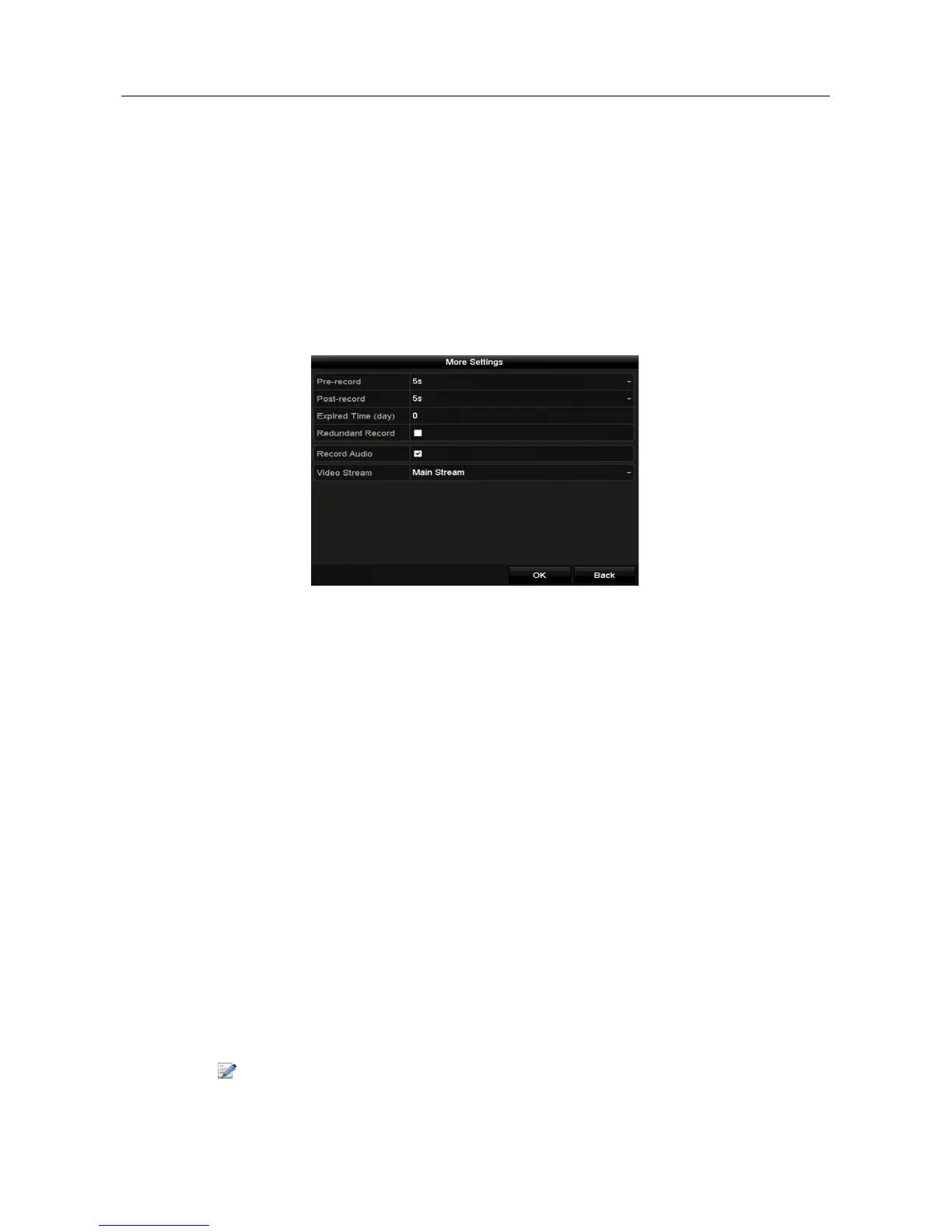

Figure 5-30 More Settings
4) Check the checkbox of Redundant Record.
5) Click OK to save the settings.
6) If the encoding parameters can also be used to other channels, click Copy and choose the
channel you want to apply the settings.
5.9 Configuring HDD Group
Purpose
You can group the HDDs and save the record files in certain HDD group.
Step 1 Enter HDD setting interface.
Menu>HDD>Advanced
Step 2 Select Storage Mode tab.
Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed
information, please refer to Chapter 14.3 Managing HDD Group.
Step 3 Select General in the left bar.
Click to enter editing interface.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
