HIKVISION DS-7216HQHI-F2/N User Manual

Digital Video Recorder User Manual
115

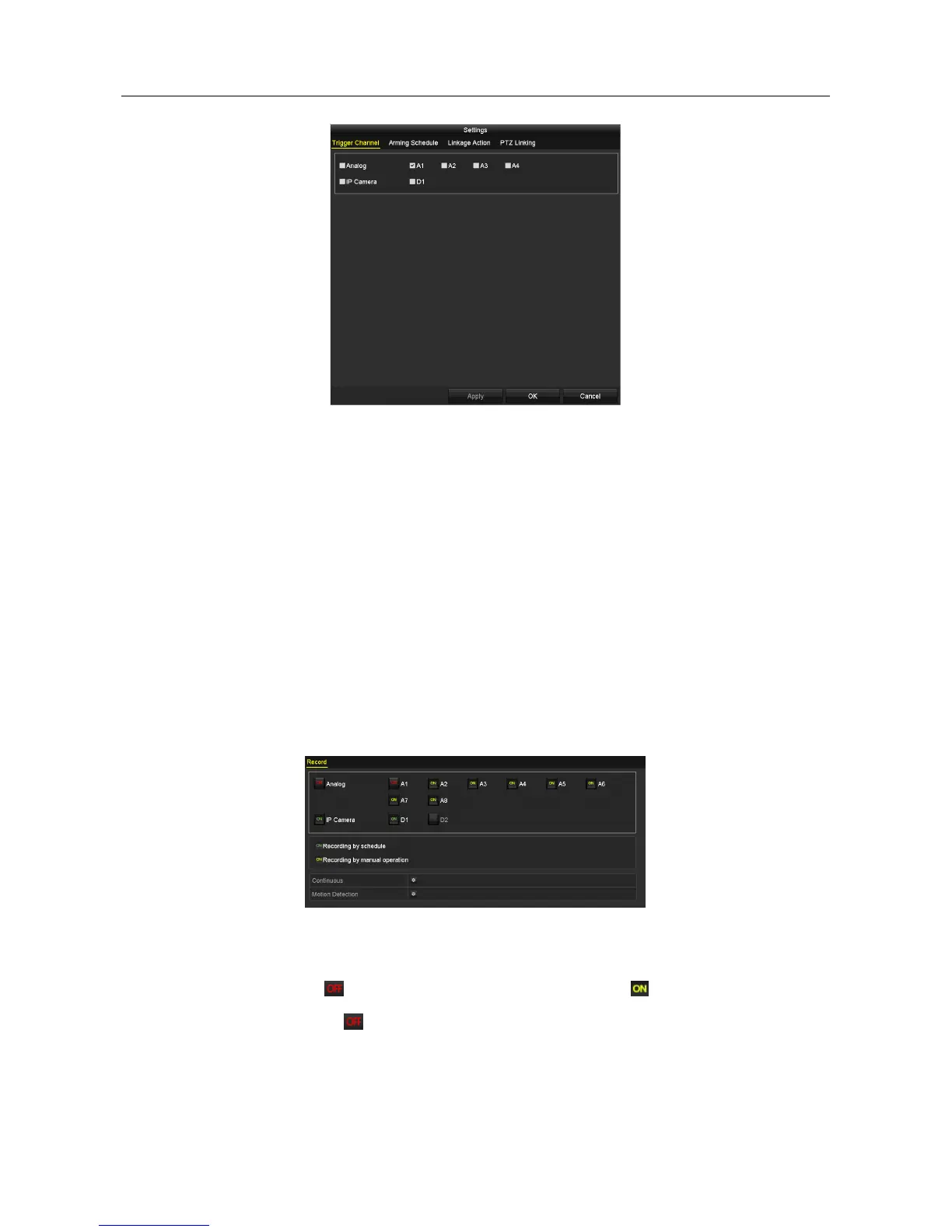

Figure 5-23 Set Triggered Camera of VCA Alarm
Step 5 Enter Record Schedule Settings interface (Menu> Record> Schedule>Record Schedule), and
then set Event as the record type. For details, see step 2 in Chapter 5.2 Configuring
Recording and Capture Schedule.
5.6 Configuring Manual Recording and Continous Capture
Purpose
Follow the steps to set parameters for the manual recording and continuous capture. Using manual
recording and continuous capture, you need to manually cancel the record and capture. The
manual recording and manual continuous capture is prior to the scheduled recording and capture.
Step 1 Enter the Manual Record interface.
Menu > Manual
Figure 5-24 Manual Record
Step 2 Enable manual record.
Click the status icon before camera number to change it to .
Or click the status icon of Analog to enable manual record of all channels.
Step 3 Disable manual record.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
