HIKVISION DS-7216HQHI-F2/N User Manual

Digital Video Recorder User Manual
139

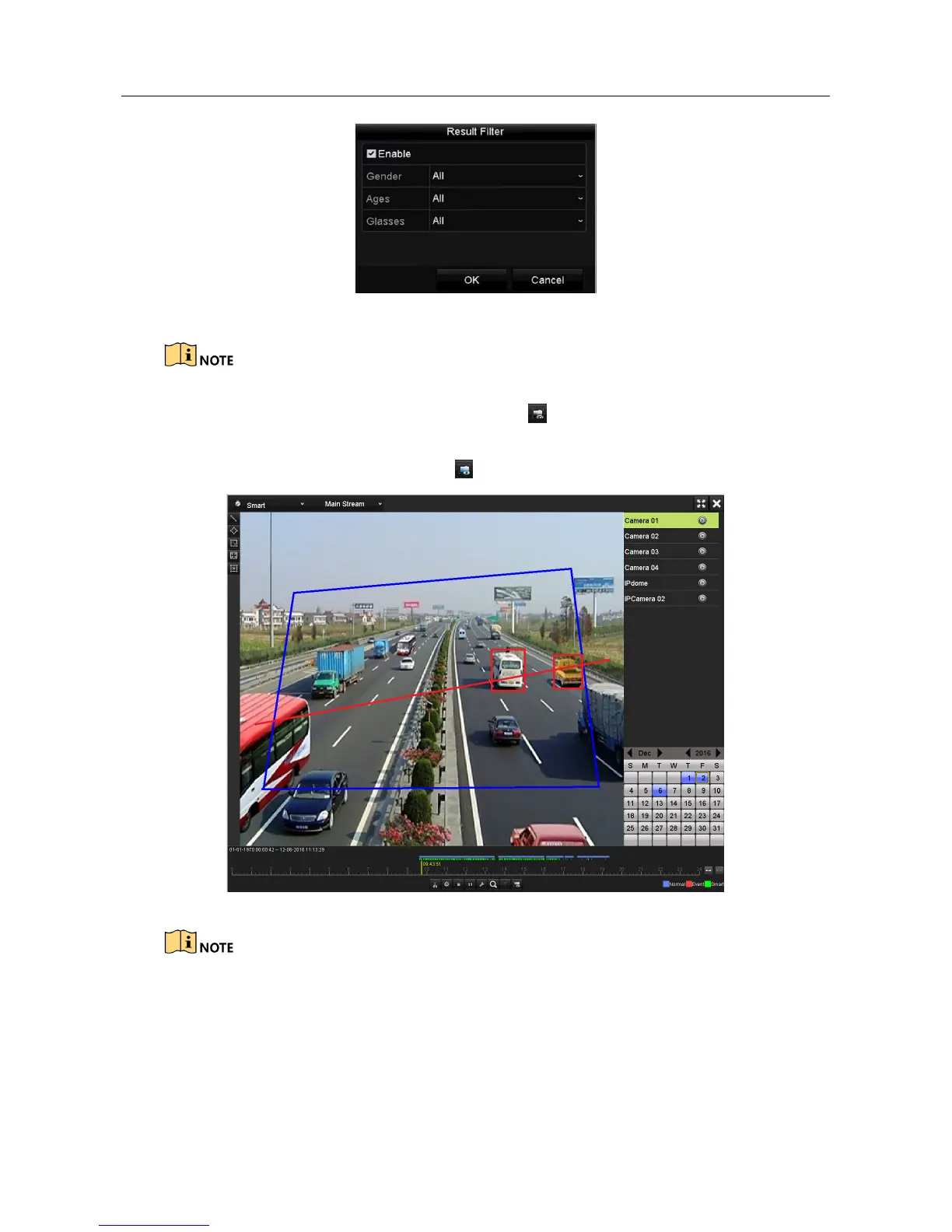

Figure 6-16 Set Result Filter
The Result Filter function is supported by the IP camera only.
Step 9 (Optional) For the cameras supporting VCA, click to show the VCA information.
Then the configured line or quadrilateral in VCA configuration and target frame(s) will be
shown on the playback interface. Click to hide the VCA information.
Figure 6-17 Show VCA Information

In smart playback, both the analog and IP cameras support VCA information overlay.

If the connected camera does not support VCA, the icon is grey and unavailable.

For the analog cameras, the VCA information includes line crossing detection and intrusion
detection. For the IP cameras, the VCA information includes all the VCA detections of smart
IP camera.

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
