Digital Video Recorder User Manual
43

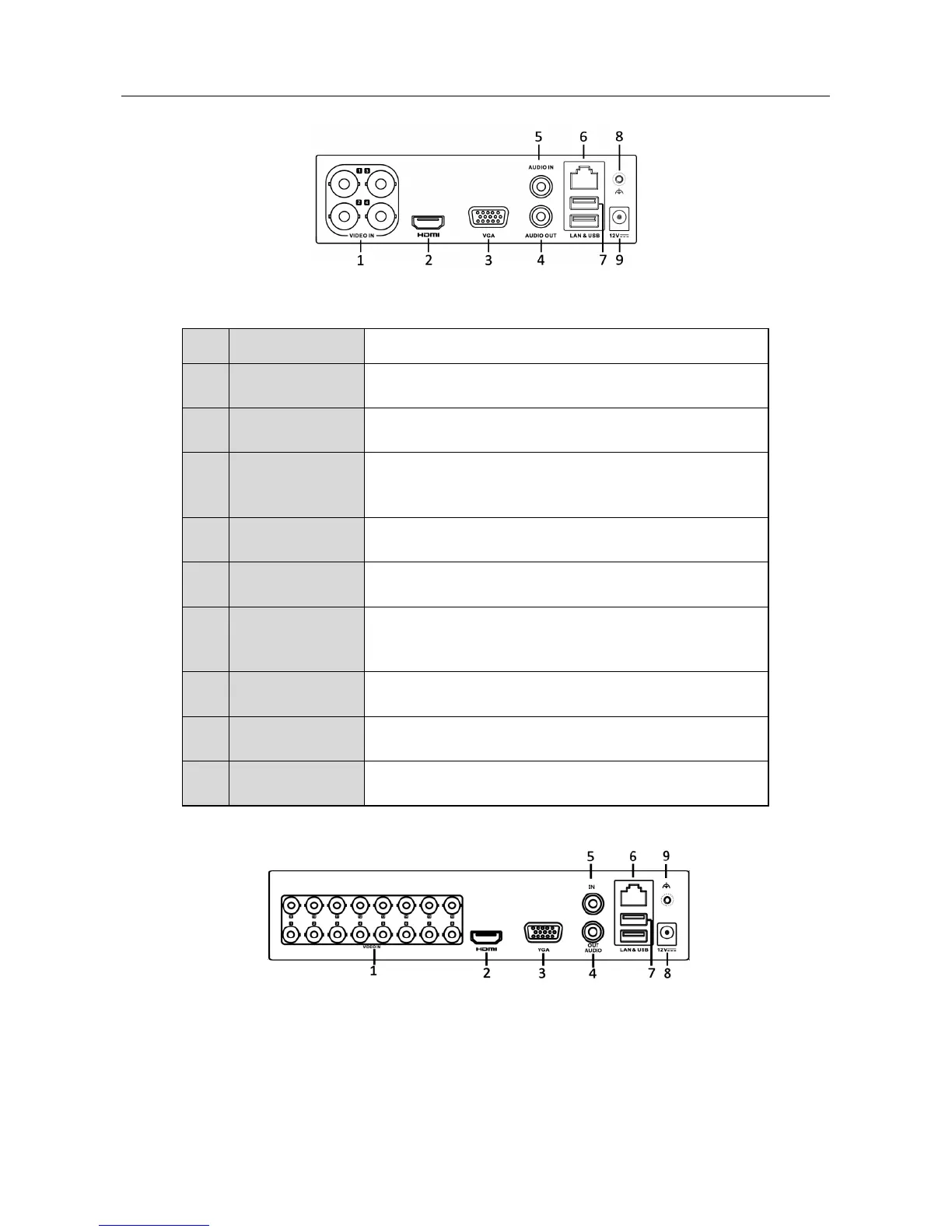

Figure 1-11 Rear Panel of DS-7100
Table 1-10 Description of Rear Panel
No.
Item Description
1 VIDEO IN BNC interface for Turbo HD, and analog video input.
2 HDMI HDMI video output connector.
3 VGA DB15 connector for VGA output. Display local video
output and menu.
4 AUDIO OUT RCA connector.
5 AUDIO IN RCA connector.
6 Network
Interface
Connector for network
7 USB Port Universal Serial Bus (USB) port for additional devices.
8 GND Ground
9 Power Supply 12 VDC power supply.
Rear Panel 2:
Figure 1-12 Rear Panel of DS-7200HGHI-F (/N)
Rear Panel 3:
