HIKVISION DS-7216HQHI-F2/N User Manual

Digital Video Recorder User Manual
46

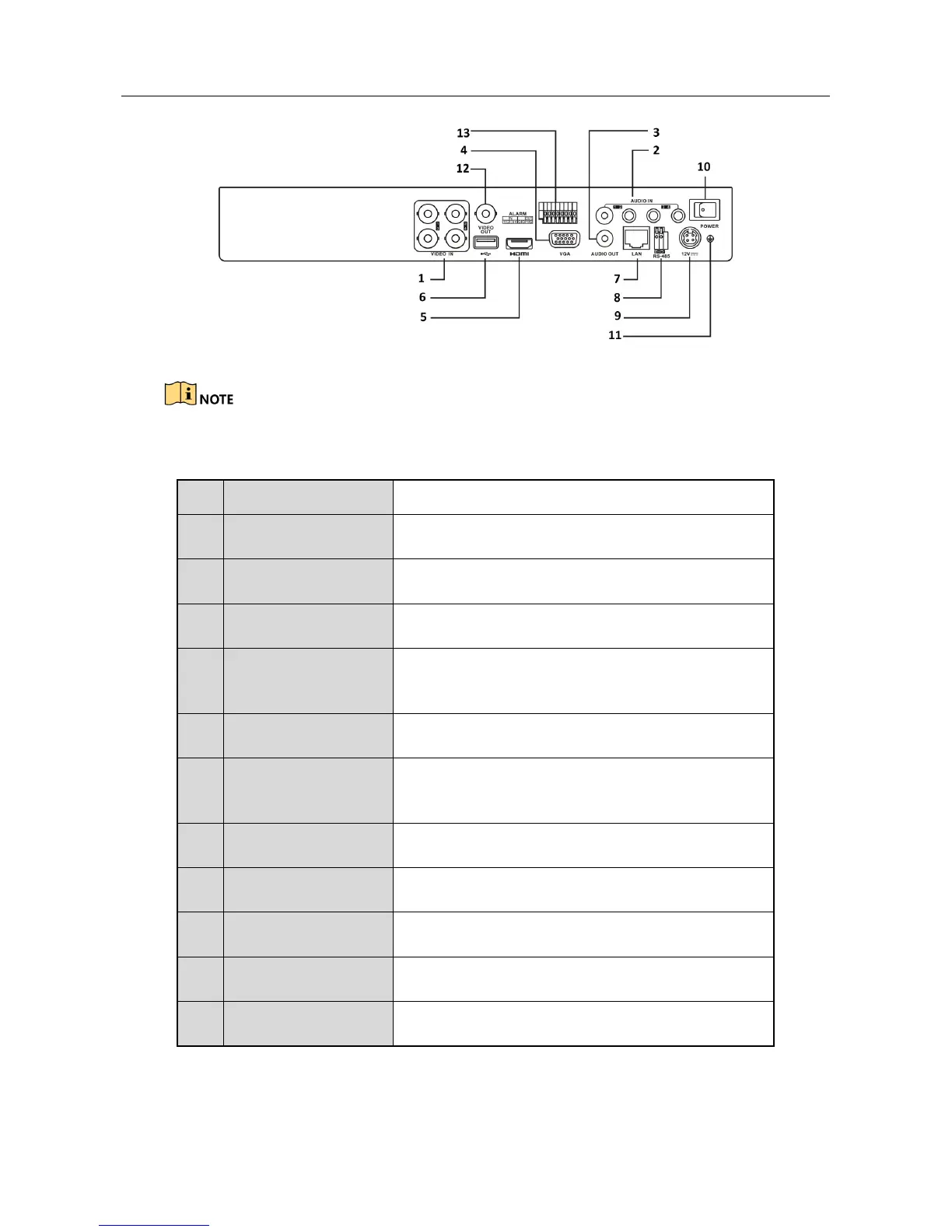

Figure 1-16 Rear Panel of DS-7200HUHI and 7600HUHI-F/N
The rear panels of DS-7208HUHI provide 8 video input interfaces. The rear panel of DS-7216HUHI
provides 16 video input interfaces.
Table 1-13 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector.
4
VGA DB15 connector for VGA output. Display local
video output and menu.
5 HDMI HDMI video output connector.
6
USB Port Universal Serial Bus (USB) port for additional
devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply 12VDC power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground

HIKVISION DS-7216HQHI-F2/N Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Rack capacity	1U
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (max)	30 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 45 mm
