HIKVISION DS-7216HUI-K2 Quick Start Guide



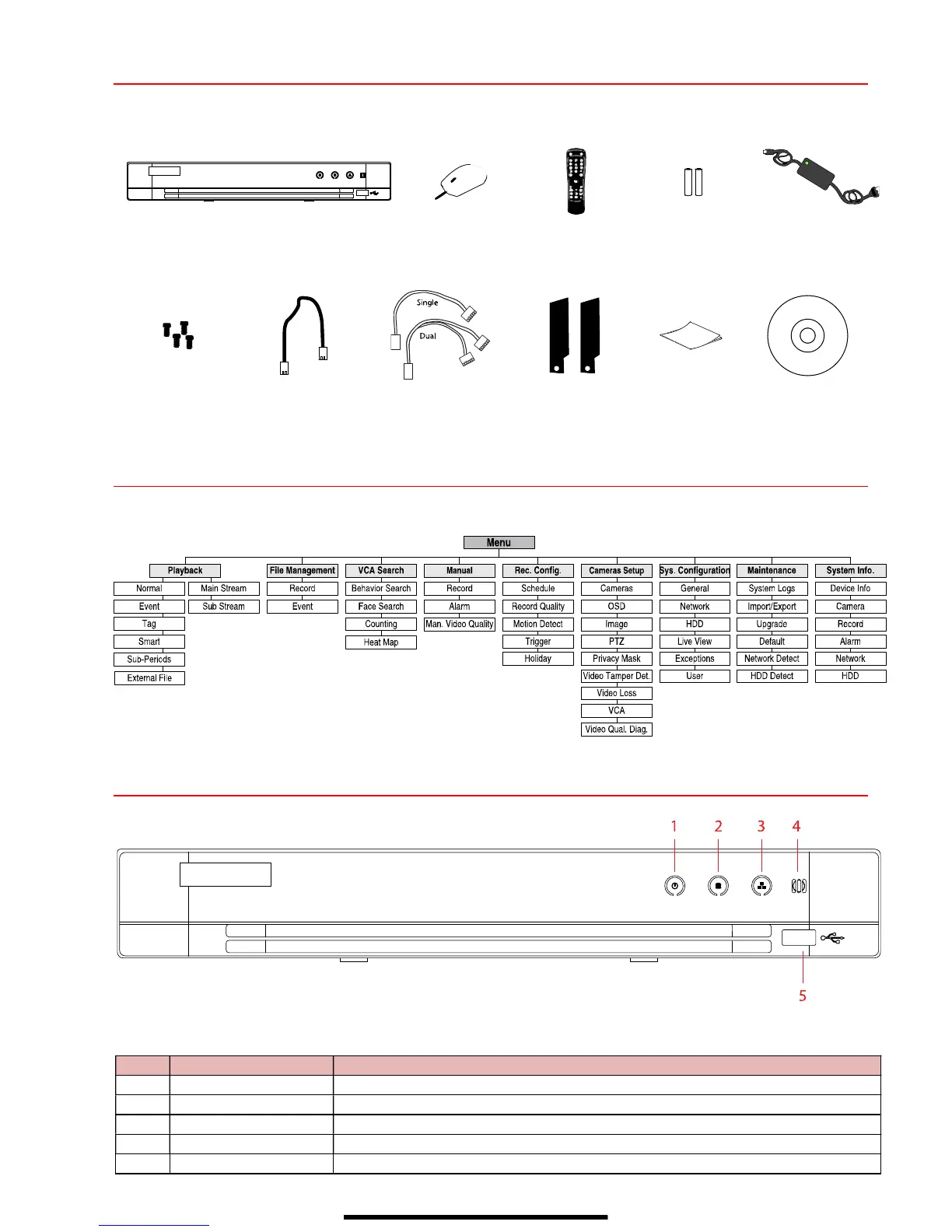

W H A T ’ S I N T H E B O X
Make sure the following items are in your box:
DVR

Mouse
Remote

AAA Cells
(x 2)
Power
Supply


HDD Screws
(-K1 = x 4)
(-K2 = x 8)
SATA Cable
(-K1 = x 1)
(-K2 = x 2)
HDD Power Cable
(-K1 = x 1 single)
(-K2 = x 1 dual)
Rack Ears
(8-, 16-ch = x 2)
QSG
DVD

M E N U T R E E
Use this menu tree to navigate the embedded menus.

F R O N T P A N E L
Figure 1, DS-72xxHUI-Kx(/P), DS-72xxHQI-Kx(/P) Front Panel
No.
Item
Description
1
Power
On
when power switch on rear panel is turned on
2
HDD
Flickers when reading from/writing to the HDD
3
Tx/Rx
Blinks when network connection is functioning properly
4
Remote Sensor
Receives signals from the remote control
5
USB Port
Connec
ts
to USB devices

HIKVISION DS-7216HUI-K2 Specifications

General

DC voltage	48 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
USB connectivity	Yes
Channels quantity	16 channels
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Alarm input channels	16
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, S ADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD capacity	3000 GB
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	2

Weight and Dimensions

Depth	320 mm
Width	380 mm
