HIKVISION DS-7600 Series Quick Start Guide

To startup your DVR:
2. Connection
3. Startup and Shutdown
1. Plug power cord into DVR and electrical outlet. It is HIGHLY recommended to use a surge
protector. The Power indicator LED on the front panel will turn red.
2. Connect a VGA monitor and mouse into the DVR. NOTE: Monitor and mouse need to be
plugged in before starting.
3. Switch the POWER button on the back rear panel. The Power indicator LED will turn blue.
The unit will begin to start.
NOTE: Each HDD will start separately to conserve power
NOTE: Default password is 12345
NOTE: The DVR’s Menu is only shown on VGA monitor

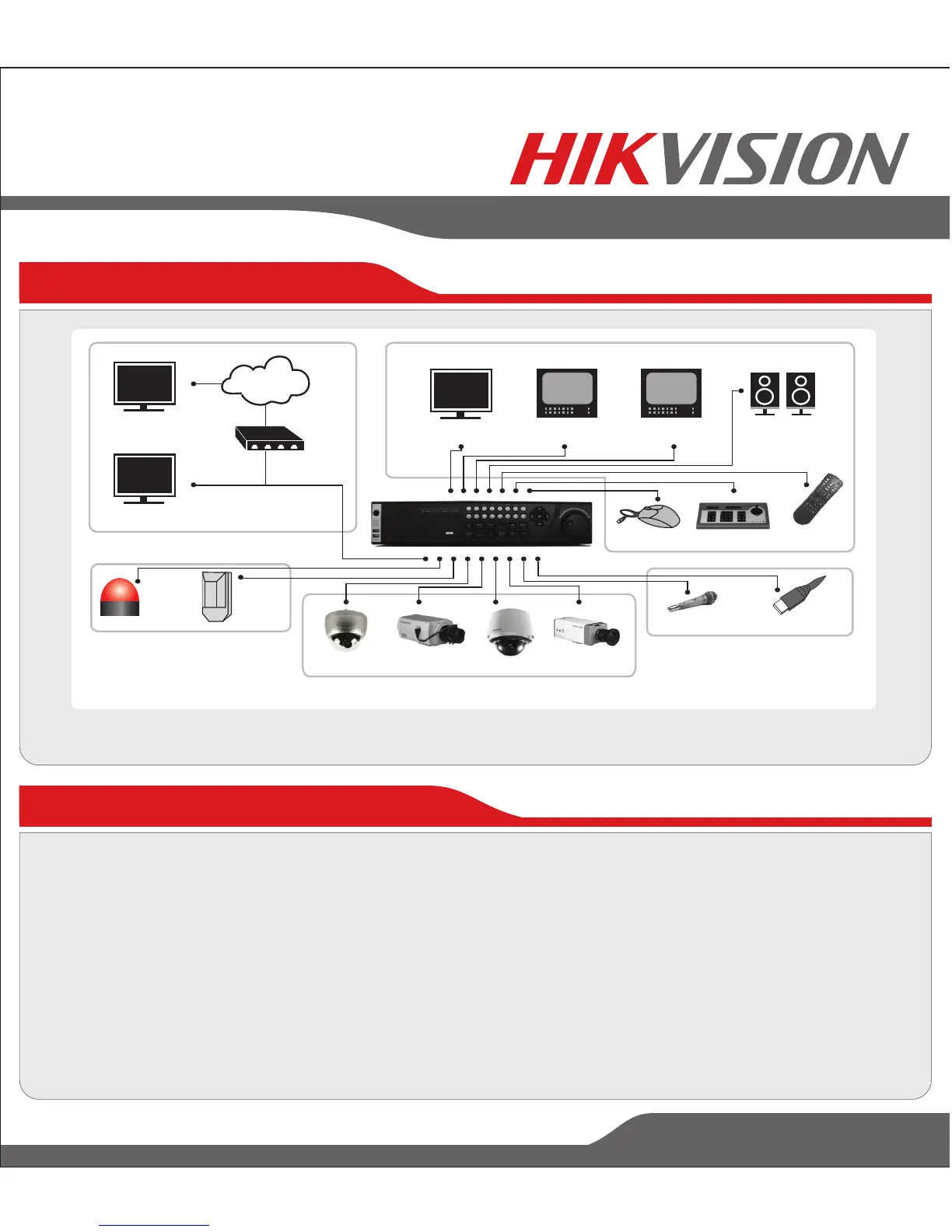

Internet
Router
Ethernet
PC
VGA Monitor Main Monitor Aux/Spot Monitor
Speaker
PC
Alarm
Output
Alarm
Input
Audio Input USB Device
USB Mouse
Note: DS-9000 Series Hybrid DVR and DS-7600 Series Hybrid DVR support both Analog and IP cameras.
DS-9600 Series NVR supports only IP cameras
Keyboard IR Remote
Analog Dome
Analog Camera
IP Dome IP Camera
First Choice For Security Professionals
www.hikvisionusa.com

HIKVISION DS-7600 Series Specifications

General

Video Output	BNC
Compression	H.264
Network Interface	RJ-45
USB Interface	2 × USB 2.0
VGA Output	1 channel, up to 1920x1080 resolution
Operating Temperature	-10 °C ~ +55 °C (14 °F ~ +131 °F)
Operating Humidity	10% ~ 90%
