HIKVISION DS-7604NI-K1 Quick Start Guide

Network Video Recorder Quick Start Guide
14
DS-7600NI-K1 and DS-7600NI-K1/4P

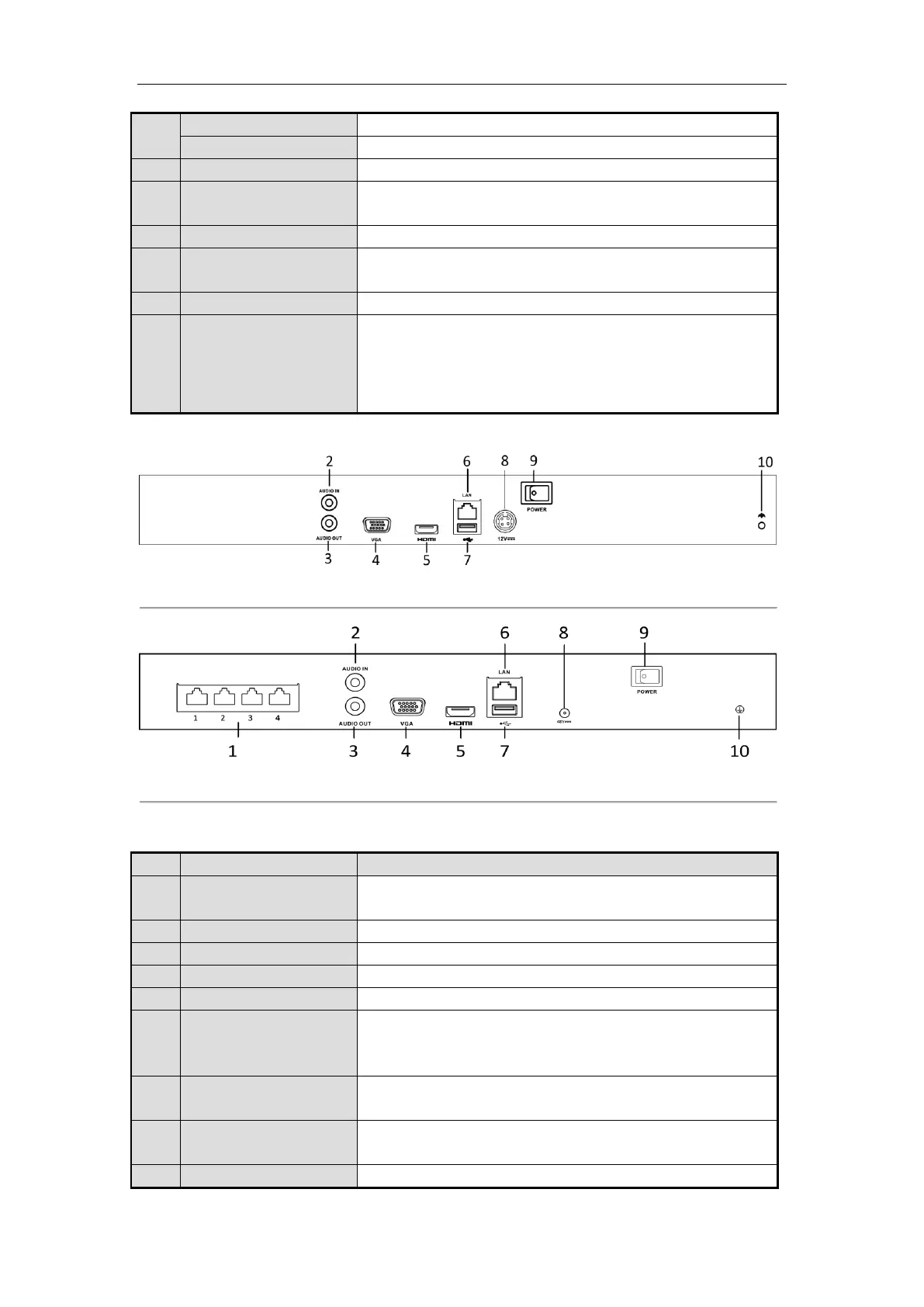

Figure 1. 12 DS-7600NI-K1 Series
Figure 1. 13 DS-7604NI-K1/4P Series
Table 1. 7 Panel Description
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and DS-7600NI-K4, and 100
to 240 VAC for DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces with
PoE function
(supported by
DS-7600NI-I2/P)
Network interfaces for the cameras and to provide power over Ethernet.
No.
Name
Description
1
Network Interfaces with
PoE function
Network interfaces for the cameras and to provide power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet interface for
DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and 48 VDC power supply
for DS-7600NI-K1/4P.
10
Ground
Ground (needs to be connected when NVR starts up).

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
