3.10 One-Touch RAID Configuration
The RAID is supported by DS-9600NI-I8 and DS-9600NI-I16 series NVR only.
Purpose:
The device supports the RAID storage function. Through one-touch configuration, you can quickly create the disk
array. By default, the array type to be created is RAID 5.
Before you start:
As the default array type is RAID 5, at least 3 HDDs must be installed in you device. And if more than 10 HDDs
are installed, 2 arrays can be configured.
Steps:
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID

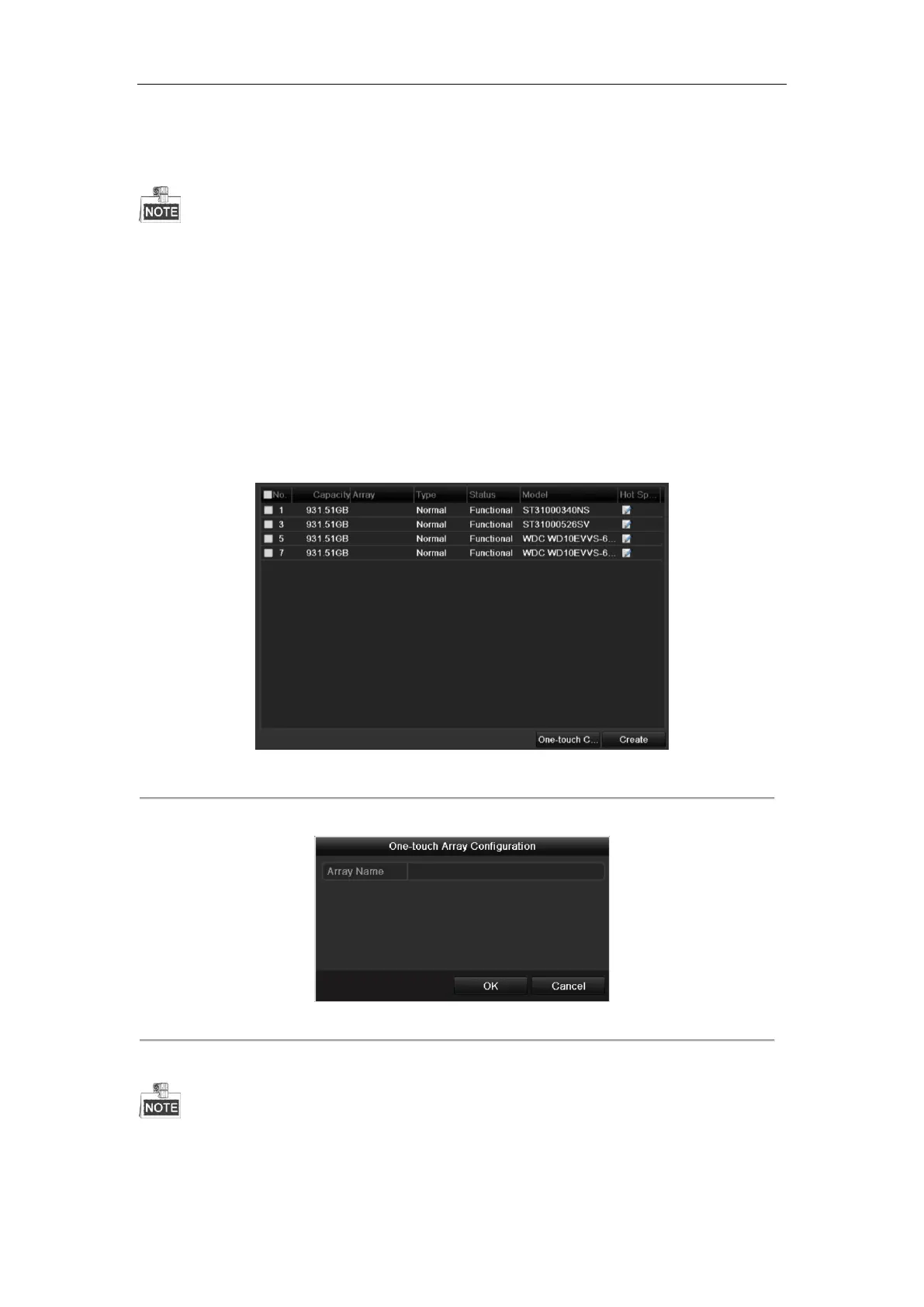

Figure 3. 13 RAID Settings Interface
2. Click One-touch Configuration to enter the One-touch Array Configuration interface.
Figure 3. 14 One-touch Array Configuration
3. Edit the array name in the Array Name text field and click OK button to start configuring array.
If you install 4 HDDs or more for one-touch configuration, a hot spare disk will be set by default. It is
recommended to set a hot spare disk for automatically rebuilding the array when the array is abnormal.
4. When the array configuration is completed, click OK button in the pop-up message box to finish the settings.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
