Network Video Recorder Quick Start Guide
13
No.
Name
Description
DS-7700NI-K4.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
7
VGA
DB9 connector for VGA output. Display local video output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts up).
11
AC 100V ~ 240V
100V to 240VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces with
PoE function (supported
by DS-7700NI-I4/P and
DS-7700NI-K4/P)
Network interfaces for the cameras and to provide power over Ethernet.
1.2.3 DS-7600NI Series
DS-7600NI-I2(/P) and DS-7600NI-K2 (/P)

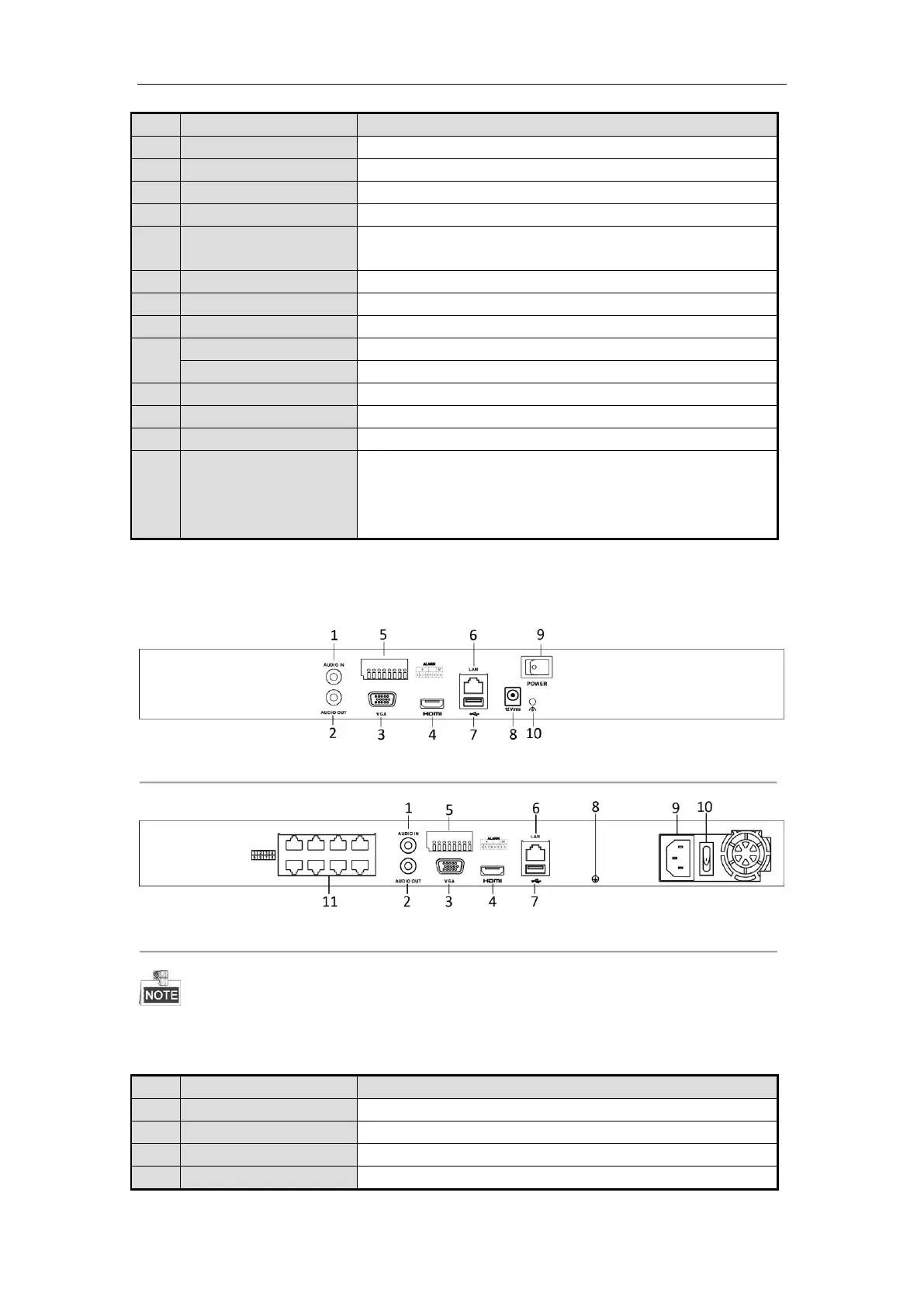

Figure 1. 10 DS-7600NI-I2 and DS-7600NI-K2 Series
Figure 1. 11 DS-7600NI-I2/8P and DS-7600NI-K2/8P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1. 6 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
4
HDMI
Interface
HDMI video output connector.

Other manuals for HIKVISION DS-7604NI-K1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-K1 and is the answer not in the manual?

HIKVISION DS-7604NI-K1 Specifications

General IconGeneral
PTZ controlYes
Display modesFull screen, Live view, Playback, Split scren
Maximum frame rate60 fps
Maximum resolution3840 x 2160 pixels
Throughput data rate40 Mbit/s
Video input channels4 channels
Supported resolutions3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supportedH.264, H.264+, H.265, MPEG4
Resolution at capture speed1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in displayNo
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Number of HDDs installed0
Product colorBlack
Rack capacity1U
Operating temperature (T-T)-10 - 55 °C
Output voltage12 V
Weight and Dimensions IconWeight and Dimensions
Depth225 mm
Width260 mm
Height48 mm
Weight1000 g
