Network Video Recorder User Manual
123

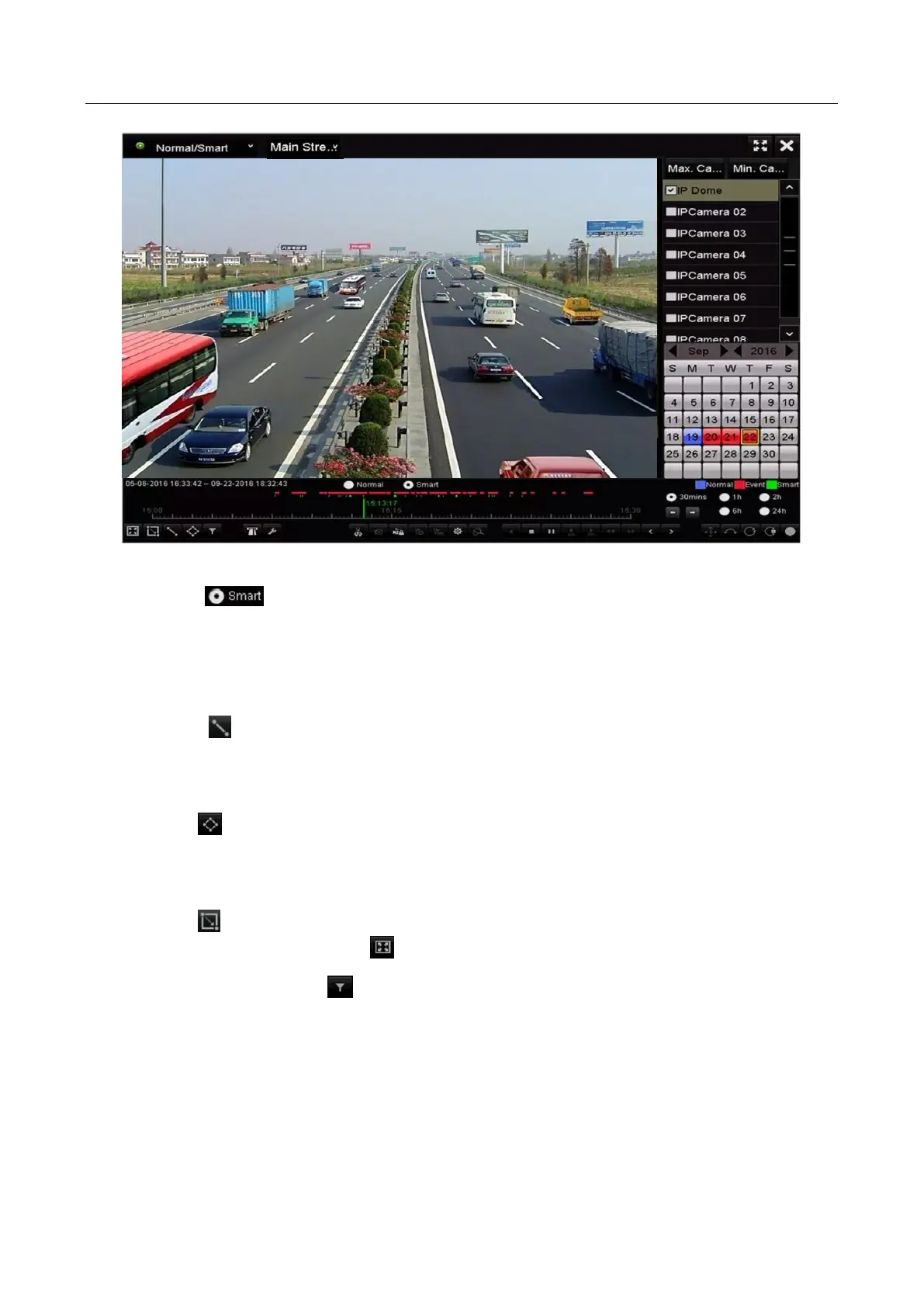

Figure 6-6 Playback by Smart Search
Step 6 Click the radio button to switch to the playback by smart search.
Step 7 Set the rules and areas for smart search of line crossing detection, intrusion detection or
motion detection event triggered recording.
 Line Crossing Detection
Select the button, and click on the image to specify the start point and end point of the
line.
 Intrusion Detection
Click the button, and specify 4 points to set a quadrilateral region for intrusion detection.
Only one region can be set.
 Motion Detection
Click the button, and then hold the mouse on the image to draw the detection area
manually. You can also click the button to set the full screen as the detection area.
Step 8 (Optional) You can click to filter the searched video files by setting the target
characters, including the gender and age of the human and whether he/she wears glasses.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
