HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
45

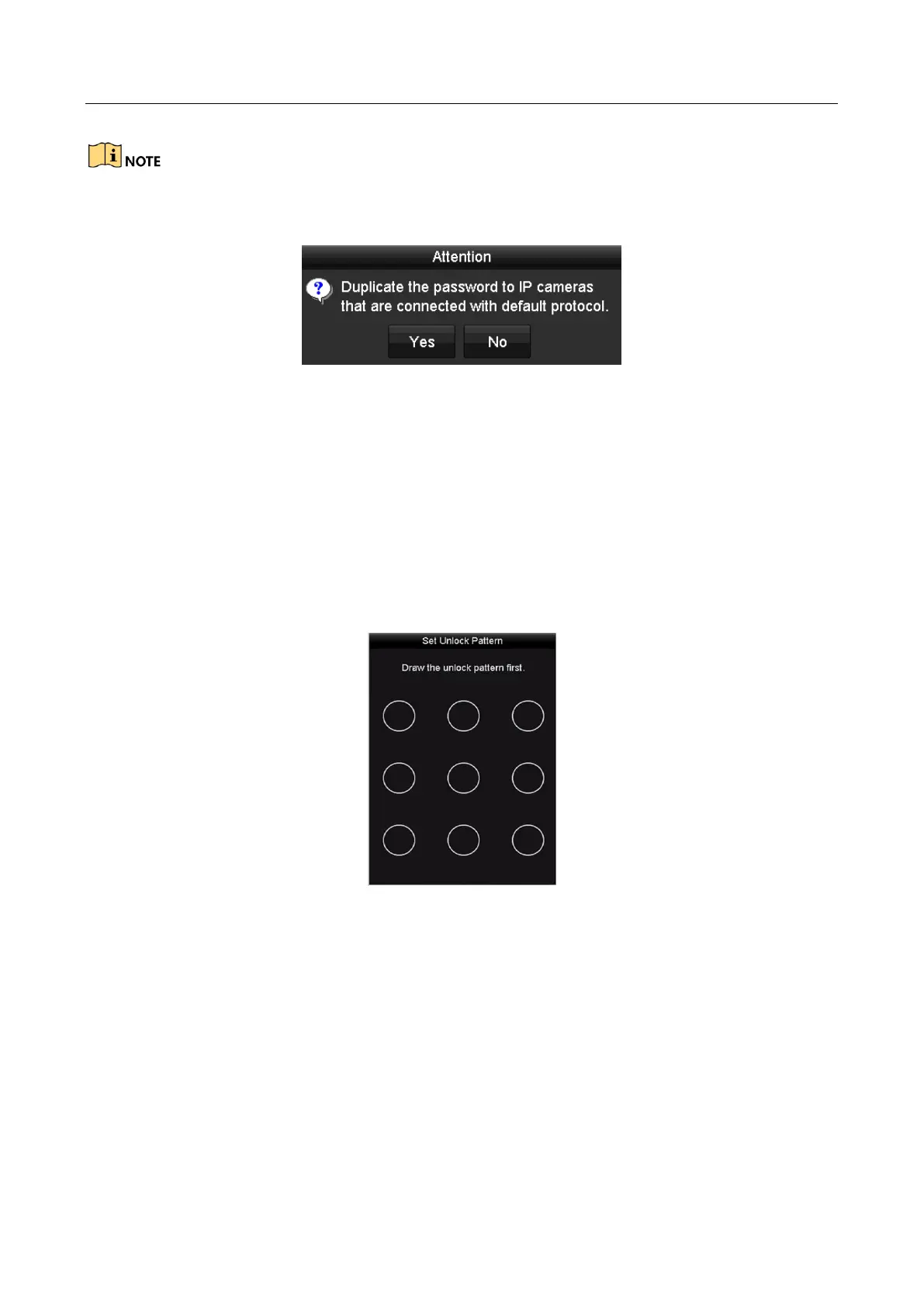

If Admin’s password is modified, the following menu pops up. Optionally, click the Yes button to
duplicate the password to IP cameras that are connected with default protocol.
Figure 2-5 Attention Interface
2.1.3 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
Configuring the Unlock Pattern
Step 1 After the device is activated, you can enter the following interface to configure the device
unlock pattern.
Figure 2-6 Set Unlock Pattern
Step 2 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when
the pattern is done.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
