HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
206

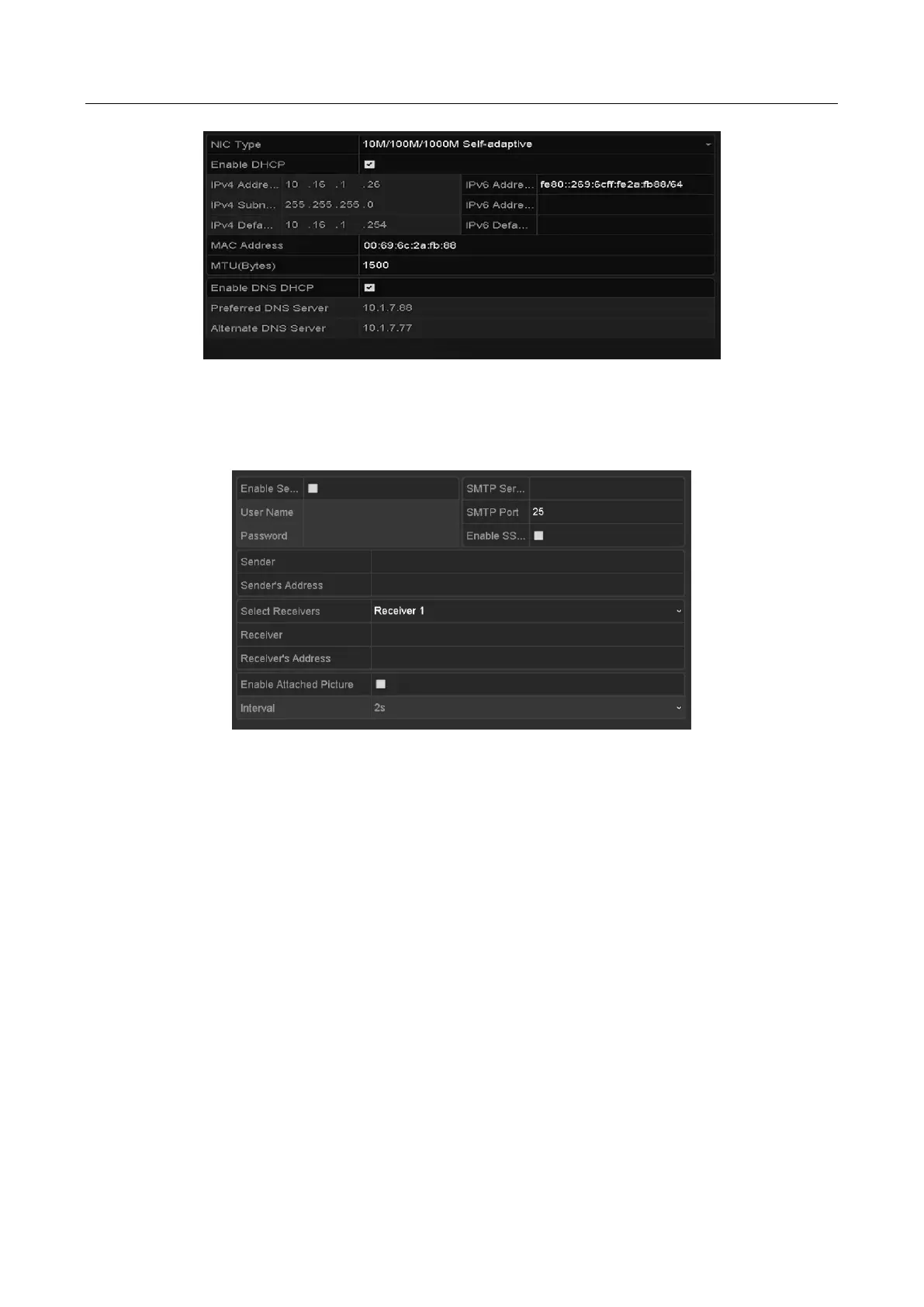

Figure 12-16 Network Settings Interface
Step 3 Click Apply to save the settings.
Step 4 Select the Email tab to enter the Email Settings interface.
Figure 12-17 Email Settings Interface
Step 5 Configure the following Email settings:
Enable Server Authentication (optional): Check the checkbox to enable the server
authentication feature.
User Name: The user name of sender’s account registered on the SMTP server.
Password: The password of sender’s account registered on the SMTP server.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
Enable SSL/TLS (optional): Click the checkbox to enable SSL/TLS if required by the SMTP
server.
Sender: The name of sender.
Sender’s Address: The Email address of sender.
Select Receivers: Select the receiver. Up to 3 receivers can be configured.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
