Network Video Recorder User Manual
52

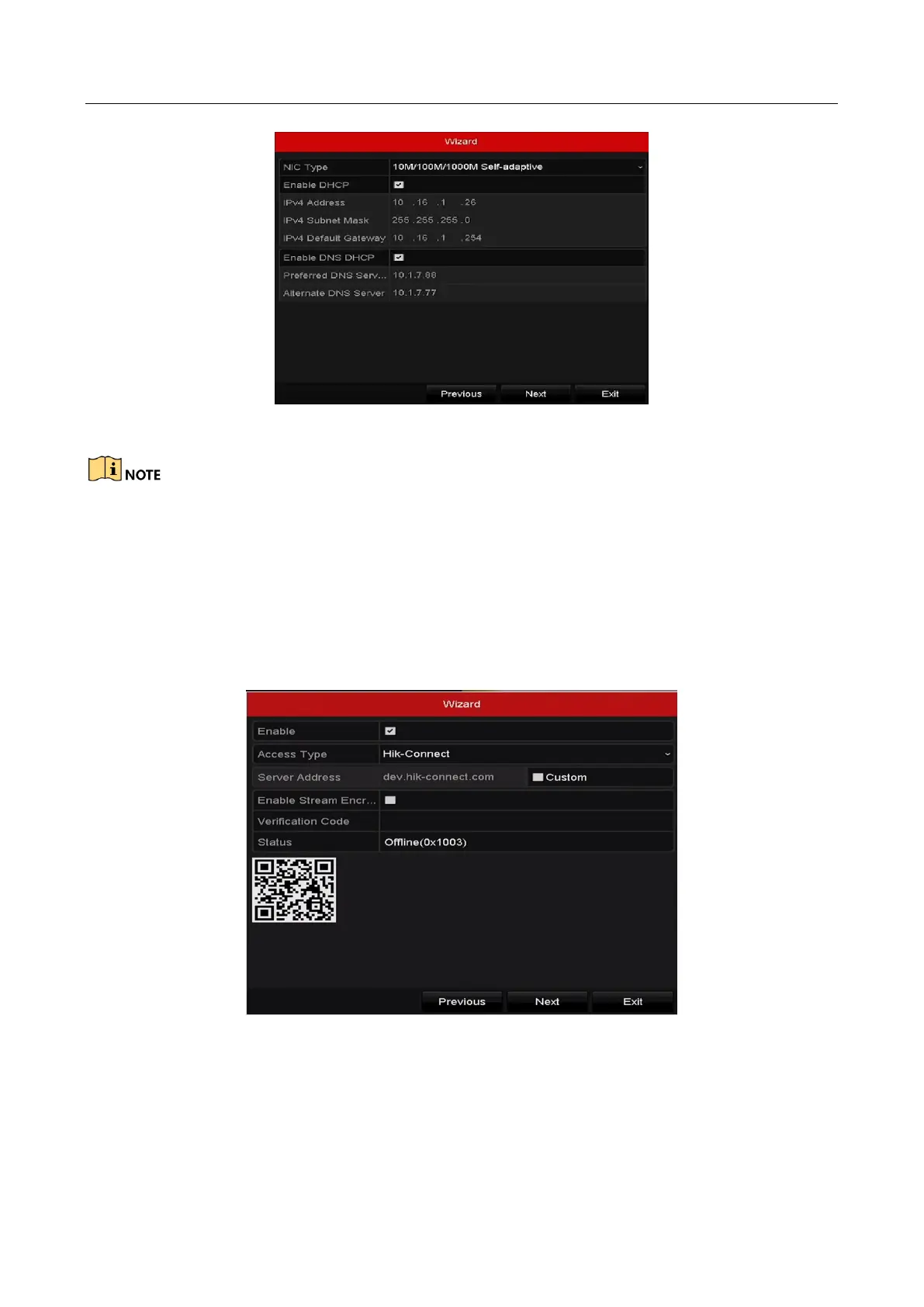

Figure 2-17 Network Settings
Two self-adaptive 10M/100M/1000M network interfaces provided for DS-9600NI, DS-8600NI,
DS-7700NI-I4 and DS-7700NI-K4, and two working modes are configurable: multi-address and
network fault tolerance. And one self-adaptive 10M/100M/1000M network interface for DS-7600NI,
DS-7700NI-I4/P and DS-7700NI-K4/P.
Step 4 Click Next button after you configured the basic network parameters. Enter the Hik-Connect
interface to configure the parameters. Please refer to Chapter 12.2.1 Configuring
Hik-Connect12.2.1 for detailed instructions.
Figure 2-18 Hik-Connect Settings
Step 5 Click Next button after you configured the basic network parameters. Then you will enter
the Advanced Network Parameter interface. You can enable UPnP, DDNS and set other
ports according to your need.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
