HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
67
edited in the Network Configuration interface, see Chapter 11.1 Configuring General
Settings for detailed information.

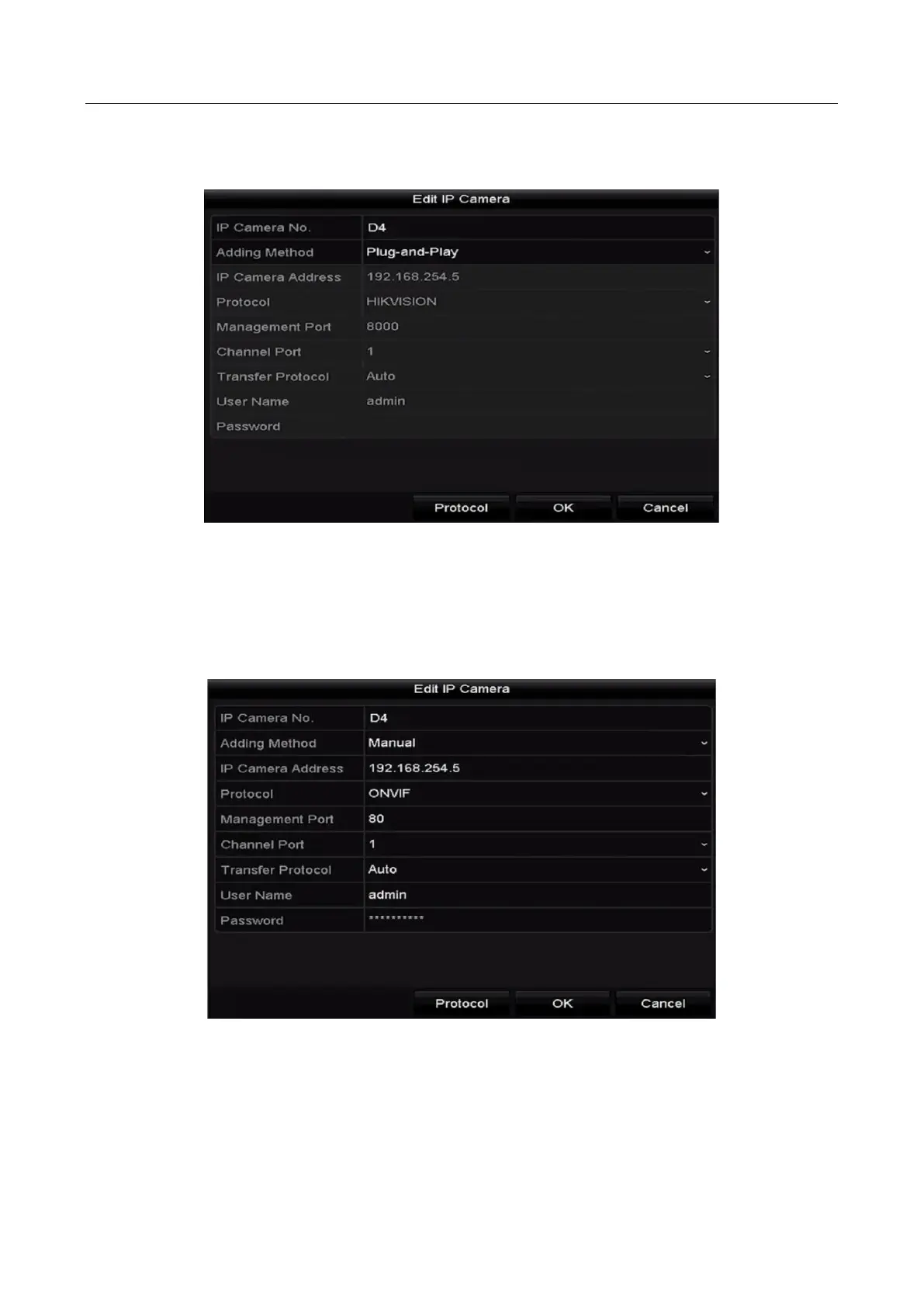

Figure 2-41 Edit IP Camera Interface - Plug-and-Play
• Manual: You can disable the PoE interface by selecting the manual while the current
channel can be used as a normal channel and the parameters can also be edited.
Input the IP address, the user name and password of administrator manually, and click OK
to add the IP camera.
Figure 2-42 Edit IP Camera Interface - Manual

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
