HIKVISION DS-7608NI-Q1 User Manual

Network Video Recorder User Manual
185

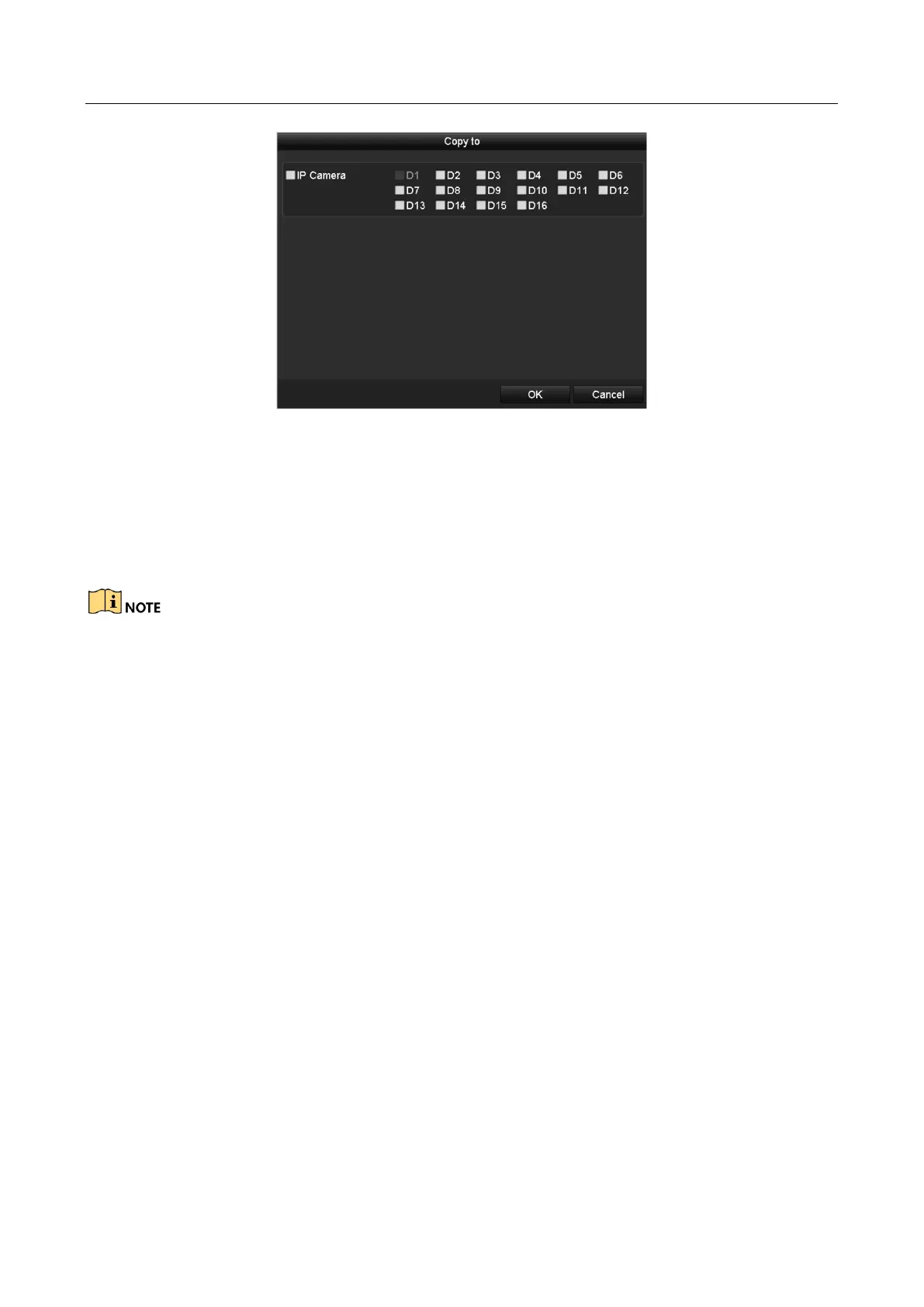

Figure 12-18 Copy Settings to Other Camera(s)
Step 6 Select the camera (s) to be configured with the same quota settings. You can also click the
checkbox of IP Camera to select all cameras.
Step 7 Click the OK button to finish the Copy settings and back to the Storage Mode interface.
Step 8 Click the Apply button to apply the settings.
If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for record and
picture capture.

HIKVISION DS-7608NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Number of HDDs supported	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Output voltage	12 V
Power consumption (typical)	10 W
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
