HIKVISION DS-7616NI-E2/16P User Manual

Network Video Recorder User Manual
112

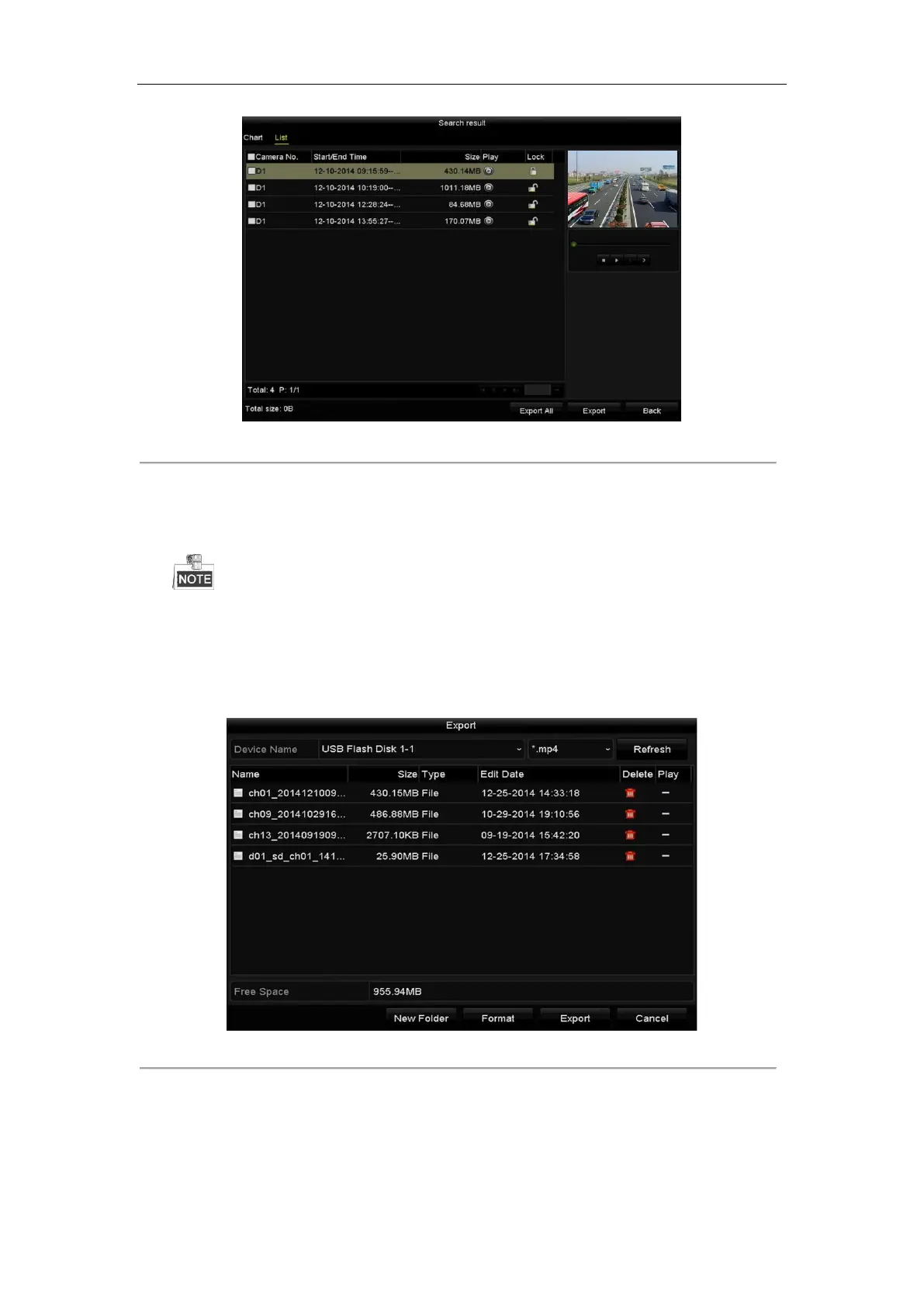

Figure 7. 6 Result of Normal Video Search for Backup
5. Export the video files or picture files.
Click Export All button to export all the files.
Or you can select recording files you want to back up, and click Export button to enter Export interface.
If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.
Figure 7. 7 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.

HIKVISION DS-7616NI-E2/16P Specifications

General

Model	DS-7616NI-E2/16P
Channel Input	16
Max. Incoming Bandwidth	160 Mbps
Video Compression	H.265+/H.265/H.264+/H.264
Decoding Format	H.265/H.264
USB Interface	2 USB 2.0
Alarm In/Out	16/4
Operating Humidity	10% to 90%
Type	Network Video Recorder
IP Video Input	Up to 16 IP cameras
Audio Compression	G.711
HDMI Output	1 HDMI
VGA Output	1
Audio Output	1
Recording Resolution	1080p/720p/4CIF/DCIF/2CIF/CIF/QCIF
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface	16
Supported Standard	ONVIF
Power	100-240V AC
Power Supply	100 to 240 VAC, 50 to 60 Hz
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Weight	3.5 kg
Synchronous Playback	16
Capability	16-ch
