HIKVISION DS-7616NI-E2/16P User Manual

Network Video Recorder User Manual
192
13.1 Configuring OSD Settings
Purpose:
You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc.
Steps:
1. Enter the OSD Configuration interface.
Menu > Camera > OSD
2. Select the camera to configure OSD settings.
3. Edit the Camera Name in the text field.
4. Configure the Display Name, Display Date and Display Week by clicking the checkbox.
5. Select the Date Format, Time Format and Display Mode.

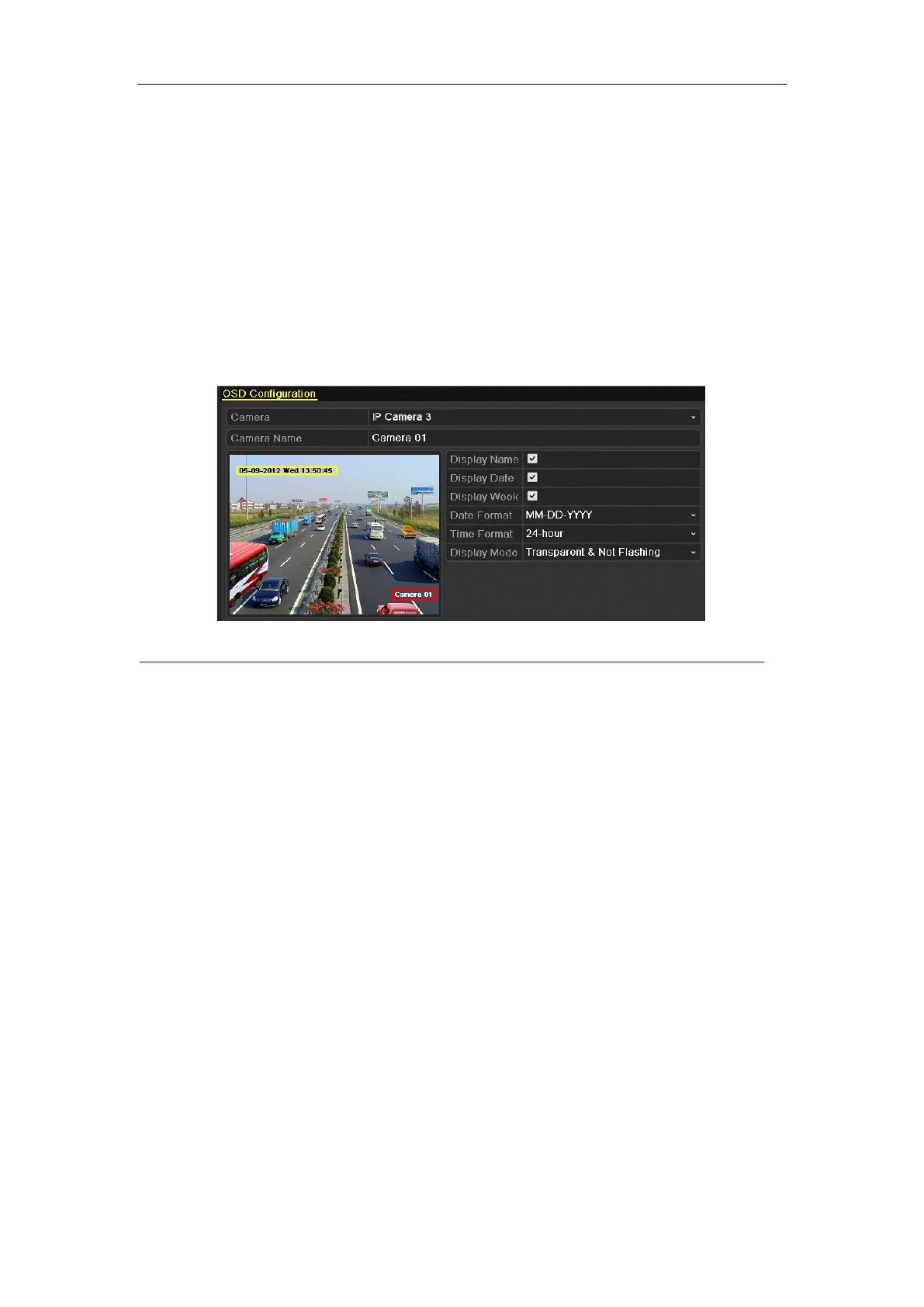

Figure 13. 1 OSD Configuration Interface
6. You can use the mouse to click and drag the text frame on the preview window to adjust the OSD position.
7. Click the Apply button to apply the settings.

HIKVISION DS-7616NI-E2/16P Specifications

General

Model	DS-7616NI-E2/16P
Channel Input	16
Max. Incoming Bandwidth	160 Mbps
Video Compression	H.265+/H.265/H.264+/H.264
Decoding Format	H.265/H.264
USB Interface	2 USB 2.0
Alarm In/Out	16/4
Operating Humidity	10% to 90%
Type	Network Video Recorder
IP Video Input	Up to 16 IP cameras
Audio Compression	G.711
HDMI Output	1 HDMI
VGA Output	1
Audio Output	1
Recording Resolution	1080p/720p/4CIF/DCIF/2CIF/CIF/QCIF
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface	16
Supported Standard	ONVIF
Power	100-240V AC
Power Supply	100 to 240 VAC, 50 to 60 Hz
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Weight	3.5 kg
Synchronous Playback	16
Capability	16-ch
