Network Video Recorder User Manual
79
5.4 Configuring Alarm Triggered Recording
Purpose:
Follow the procedure to configure alarm triggered recording.
Steps:
1. Enter the Alarm setting interface.
Menu > Configuration > Alarm

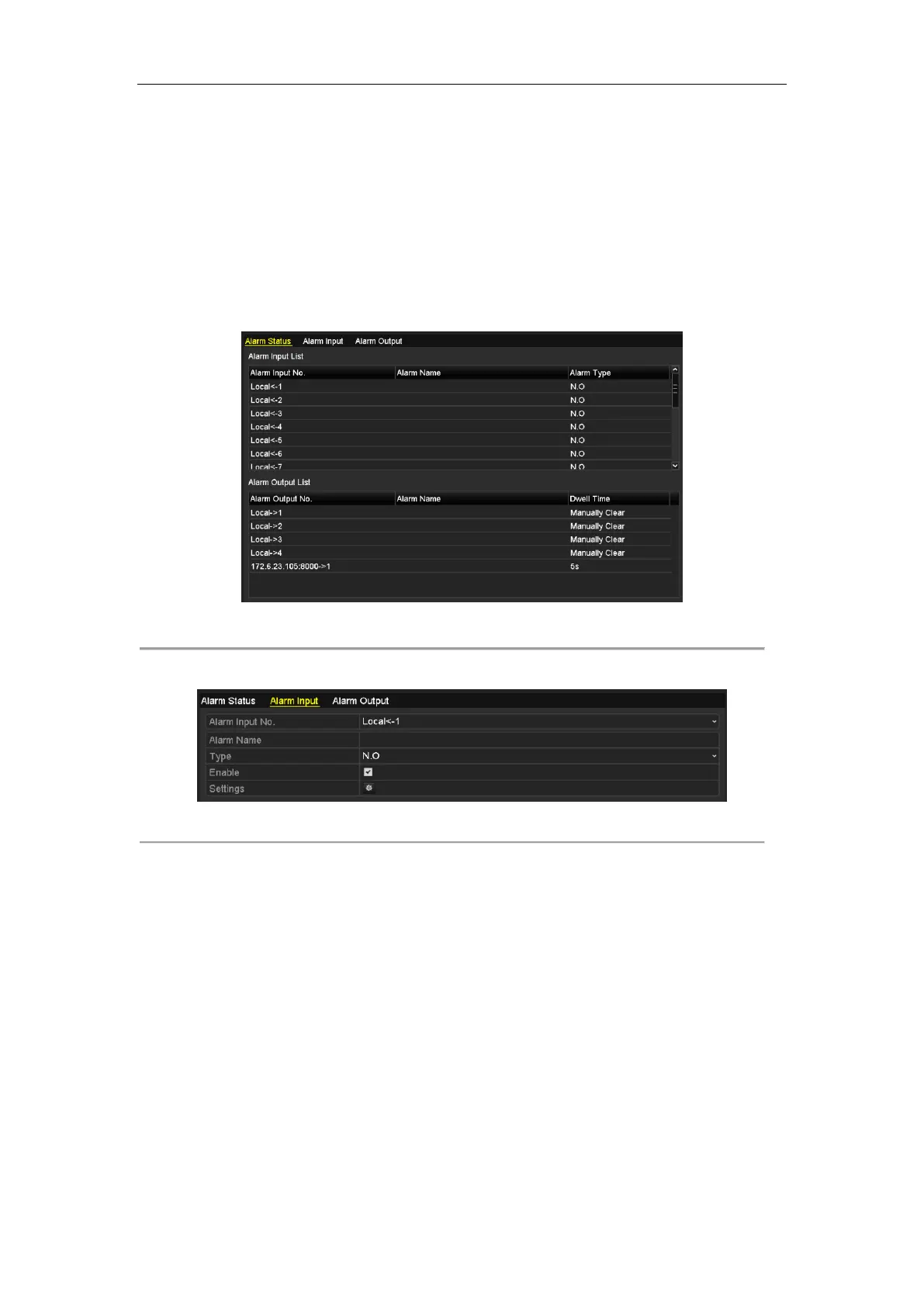

Figure 5. 13 Alarm Settings
2. Click Alarm Input tab and set the alarm parameters.
Figure 5. 14 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox for Enable.
4) Click Settings.
To Next Page
