HIKVISION DS-7616NI-E2/16P User Manual

Network Video Recorder User Manual
185

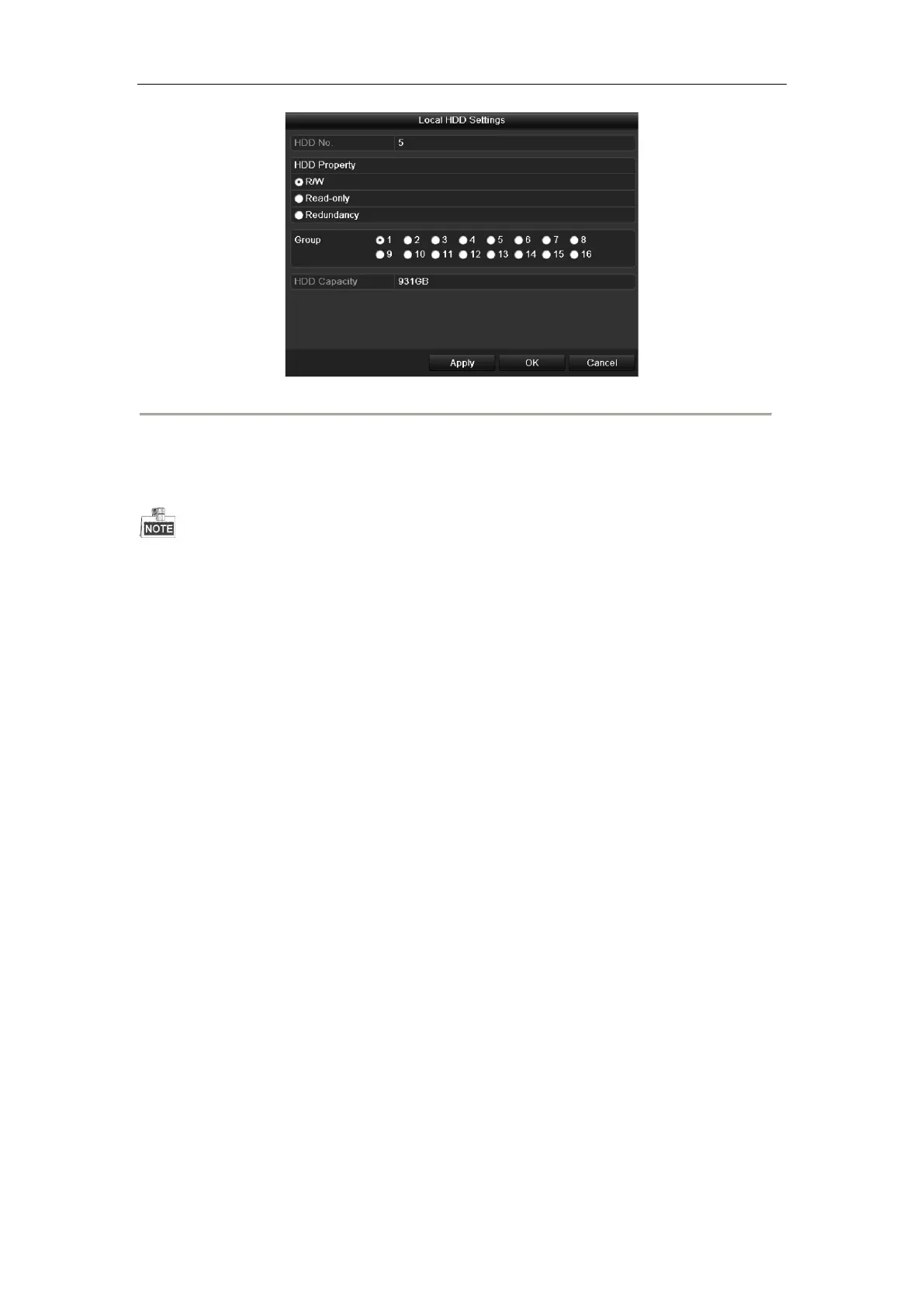

Figure 12. 15 Set HDD Property
3. Set the HDD property to R/W, Read-only or Redundancy.
4. Click the OK button to save the settings and exit the interface.
5. In the HDD Information menu, the HDD property will be displayed in the list.
At least 2 hard disks must be installed on your NVR when you want to set a HDD to Redundancy, and there is one
HDD with R/W property.

HIKVISION DS-7616NI-E2/16P Specifications

General

Model	DS-7616NI-E2/16P
Channel Input	16
Max. Incoming Bandwidth	160 Mbps
Video Compression	H.265+/H.265/H.264+/H.264
Decoding Format	H.265/H.264
USB Interface	2 USB 2.0
Alarm In/Out	16/4
Operating Humidity	10% to 90%
Type	Network Video Recorder
IP Video Input	Up to 16 IP cameras
Audio Compression	G.711
HDMI Output	1 HDMI
VGA Output	1
Audio Output	1
Recording Resolution	1080p/720p/4CIF/DCIF/2CIF/CIF/QCIF
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface	16
Supported Standard	ONVIF
Power	100-240V AC
Power Supply	100 to 240 VAC, 50 to 60 Hz
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Weight	3.5 kg
Synchronous Playback	16
Capability	16-ch
