Network
V
ideo Recorder User Manual
76
Figure 5. 9

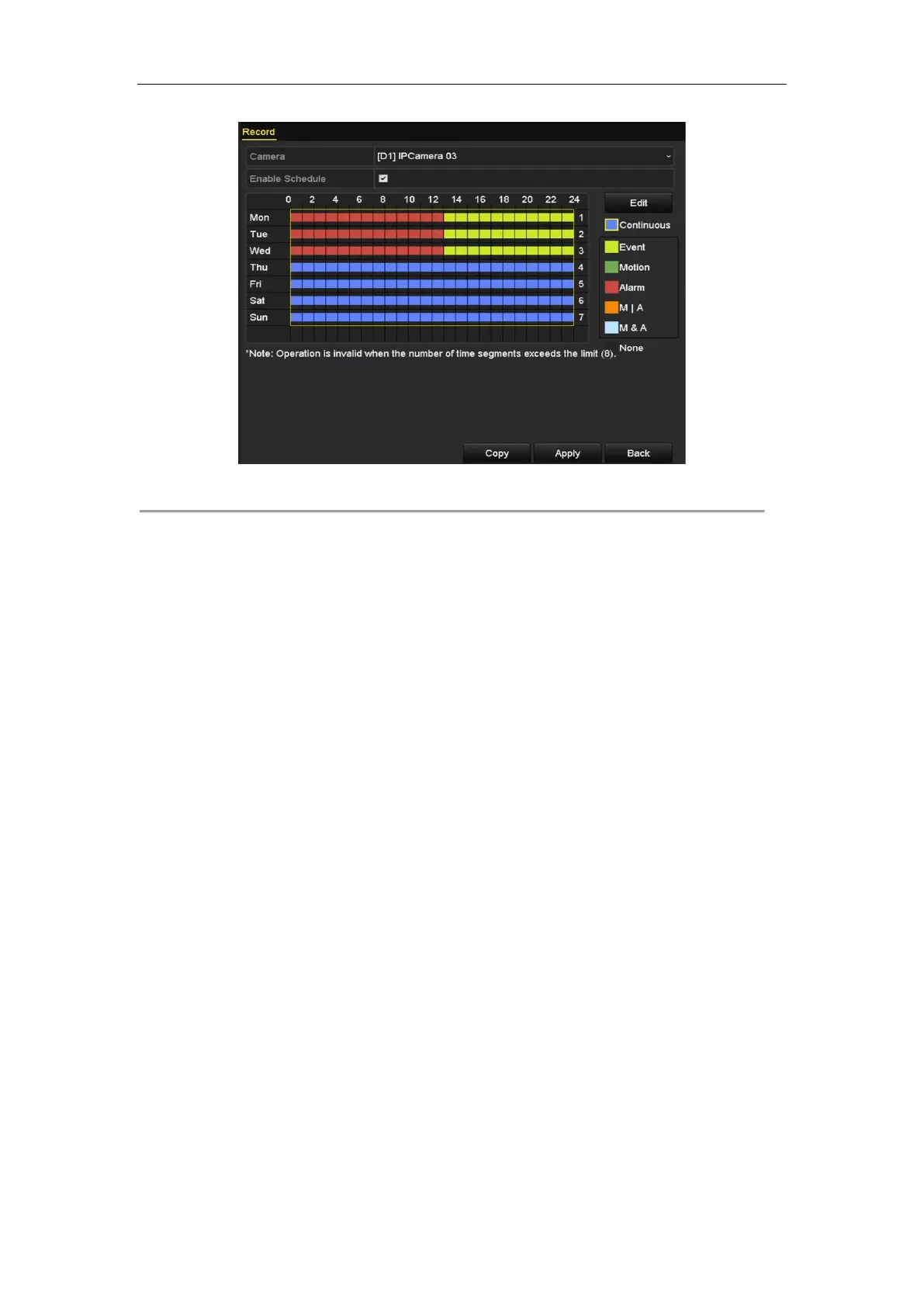

Draw the Schedule
II.
Click the
Apply
button to validate the settings.
3.
(Optional)
If
the
settings
can
also
be
used
to
o
ther
channels,
click
Copy
,
and
then
choose
the
channel
to
which you want to copy
.
4.
Click
Apply
to save the settings.
