Network Video Recorder Quick Start Guide
7
Chapter1 Panels Description

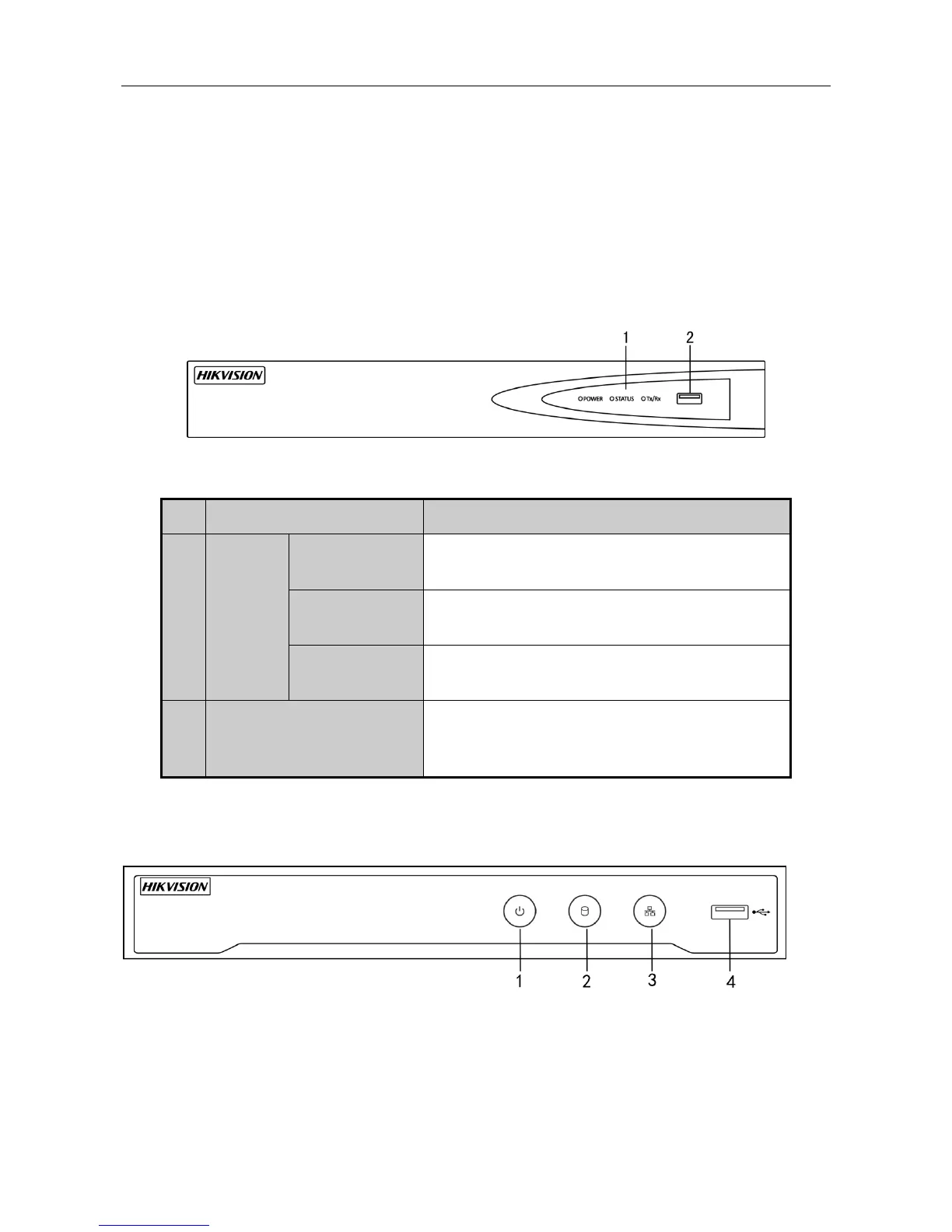

1.1 Front Panel
DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series
Figure 1-1 DS-7600NI-Q1 (/P) and DS-7600-K1(/P) (B) Series
Table 1-1 Panel Description
Power indicator turns green when system is
running.
Status indicator blinks red when data is being
read from or written to HDD.
Tx/Rx indictor blinks green when network
connection is functioning properly.
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
DS-7600NI-Q2 (/P) Series
Figure 1-2 DS-7600NI-Q2 and DS-7600NI-Q2/P Series
