13.3 Configuring Video Parameters
Purpose:
You can customize the image parameters including the brightness, contrast, saturation, image
rotate and mirror for the live view and recording effect.
Step 1 Enter the Image Settings interface.
Menu > Camera >Image

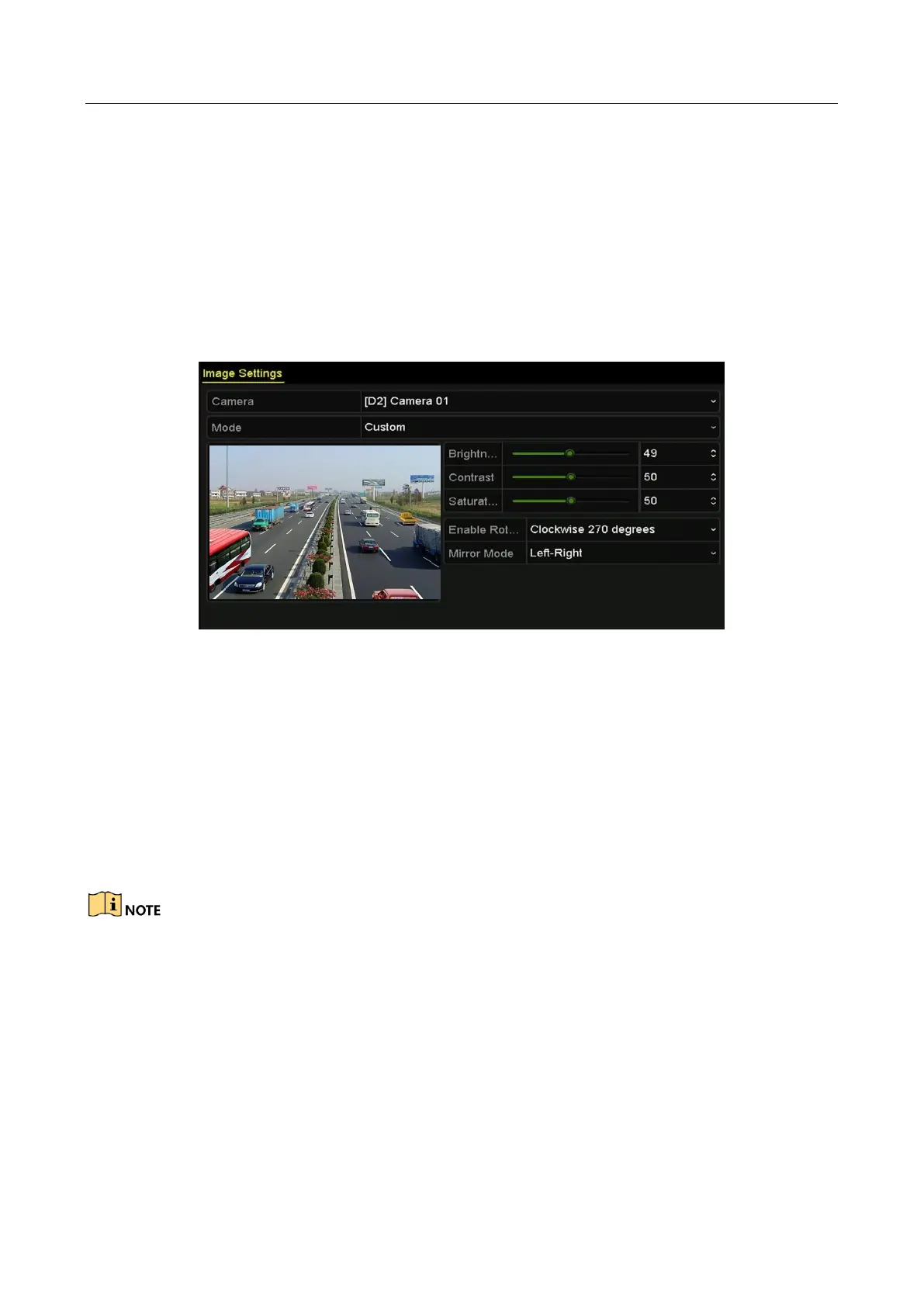

Figure 13-4 Image Settings Interface
Step 2 Select the camera to set image parameters.
Step 3 Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast or
saturation.
Step 4 Select the Enable Rotate function to Clockwise 270 degrees or OFF. When OFF is selected,
the image is restored to original.
Step 5 Select the Mirror Mode to Left-Right, Up-Down, Center or OFF. When OFF is selected, the
image is restored to original.

The Rotate and Mirror functions must be supported by the connected IP camera.

The image parameters adjustment can affect both the live view and the recording quality.
Step 6 Click the Apply button to save the settings.

HIKVISION DS-7616NI-Q1 Specifications

General

Two-way talk	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	4096 x 2160 pixels
Video input channels	16 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Video recording modes	720p, 1080p
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:
Product color	Black
Rack capacity	1U
Audio RCA outputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Wi-Fi	No
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
