HIKVISION DS-7700NI-K4/P - Page 15

Network Video Recorder Quick Start Guide
14
DS-7600NI-K1 and DS-7600NI-K1/4P

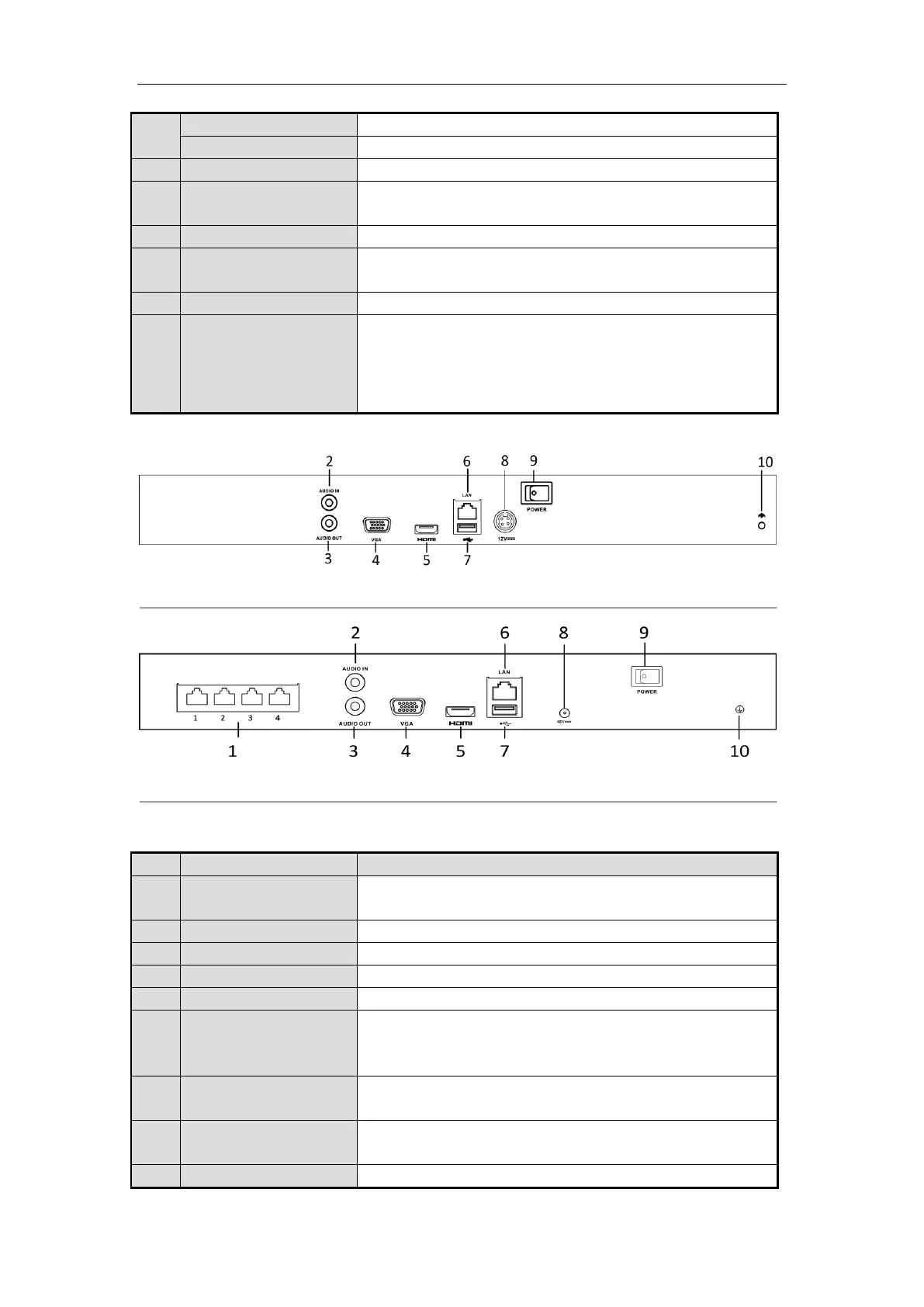

Figure 1. 12 DS-7600NI-K1 Series
Figure 1. 13 DS-7604NI-K1/4P Series
Table 1. 7 Panel Description
5
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet interface
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Supply
12 VDC power supply for DS-7600NI-I4 and DS-7600NI-K4, and 100
to 240 VAC for DS-7600NI-I4/P and DS-7600NI-K4/P.
10
Power Switch
Switch for turning on/off the device.
11
Network Interfaces with
PoE function
(supported by
DS-7600NI-I2/P)
Network interfaces for the cameras and to provide power over Ethernet.
No.
Name
Description
1
Network Interfaces with
PoE function
Network interfaces for the cameras and to provide power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network Interface
1 10/100/1000 Mbps self-adaptive Ethernet interface for
DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB 3.0) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and 48 VDC power supply
for DS-7600NI-K1/4P.
10
Ground
Ground (needs to be connected when NVR starts up).
