Network Video Recorder User Manual
136

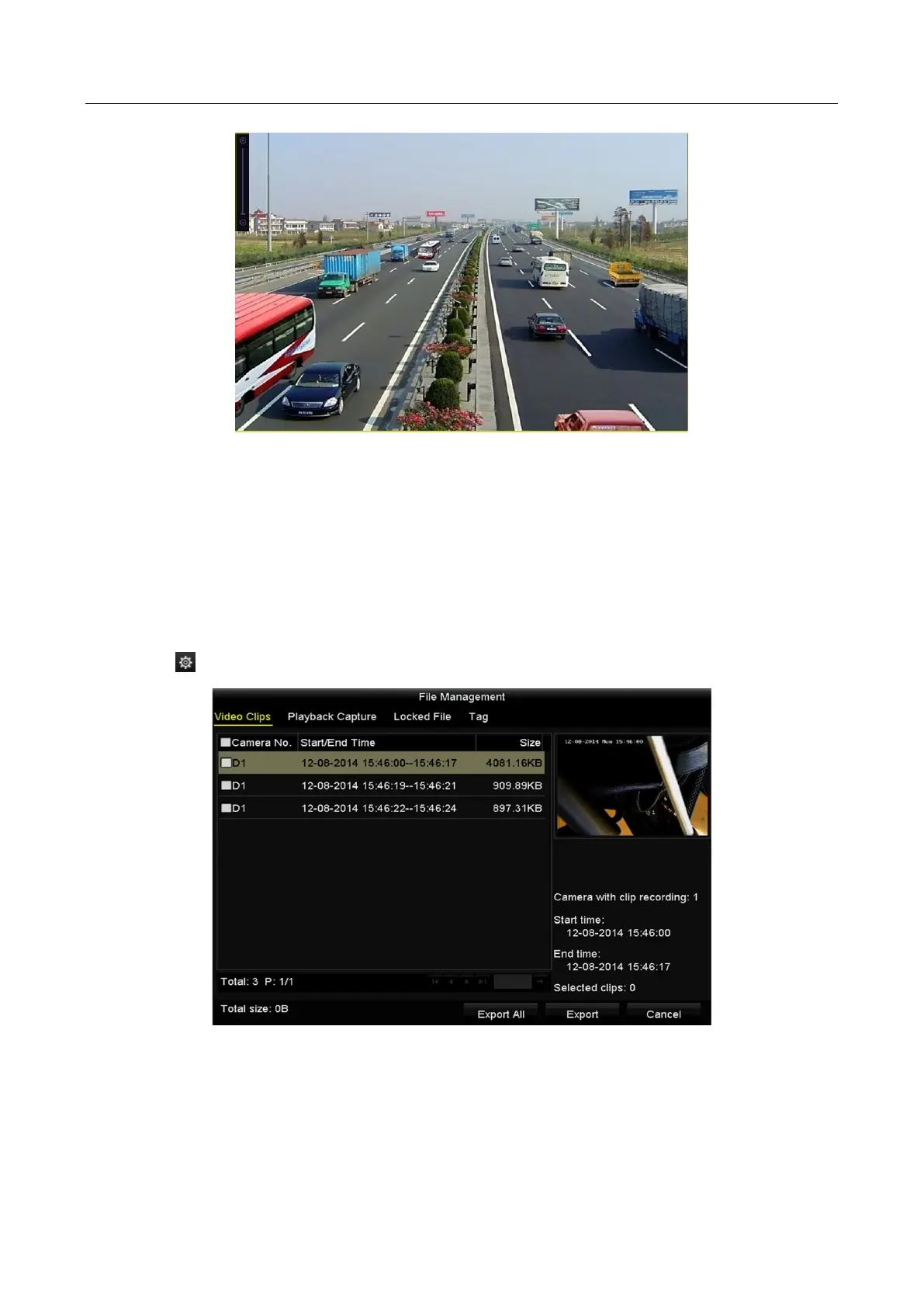

Figure 6-23 Draw Area for Digital Zoom
Step 3 Right-click the image to exit the digital zoom interface.
6.2.5 File Management
You can manage the video clips, captured pictures in playback, locked files and tags you have
added in the playback mode.
Step 1 Enter the playback interface.
Step 2 Click on the toolbar to enter the file management interface.
Figure 6-24 File Management
Step 3 You can view the saved video clips, captured playback pictures, lock/unlock the files and edit
the tags which you added in the playback mode.
Step 4 If required, select the items and click Export All or Export to export the
clips/pictures/files/tags to local storage device.

HIKVISION DS-7732NI-K4/16P Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.265, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
