HIKVISION DS-7732NI-K4/16P User Manual

Network Video Recorder User Manual
140

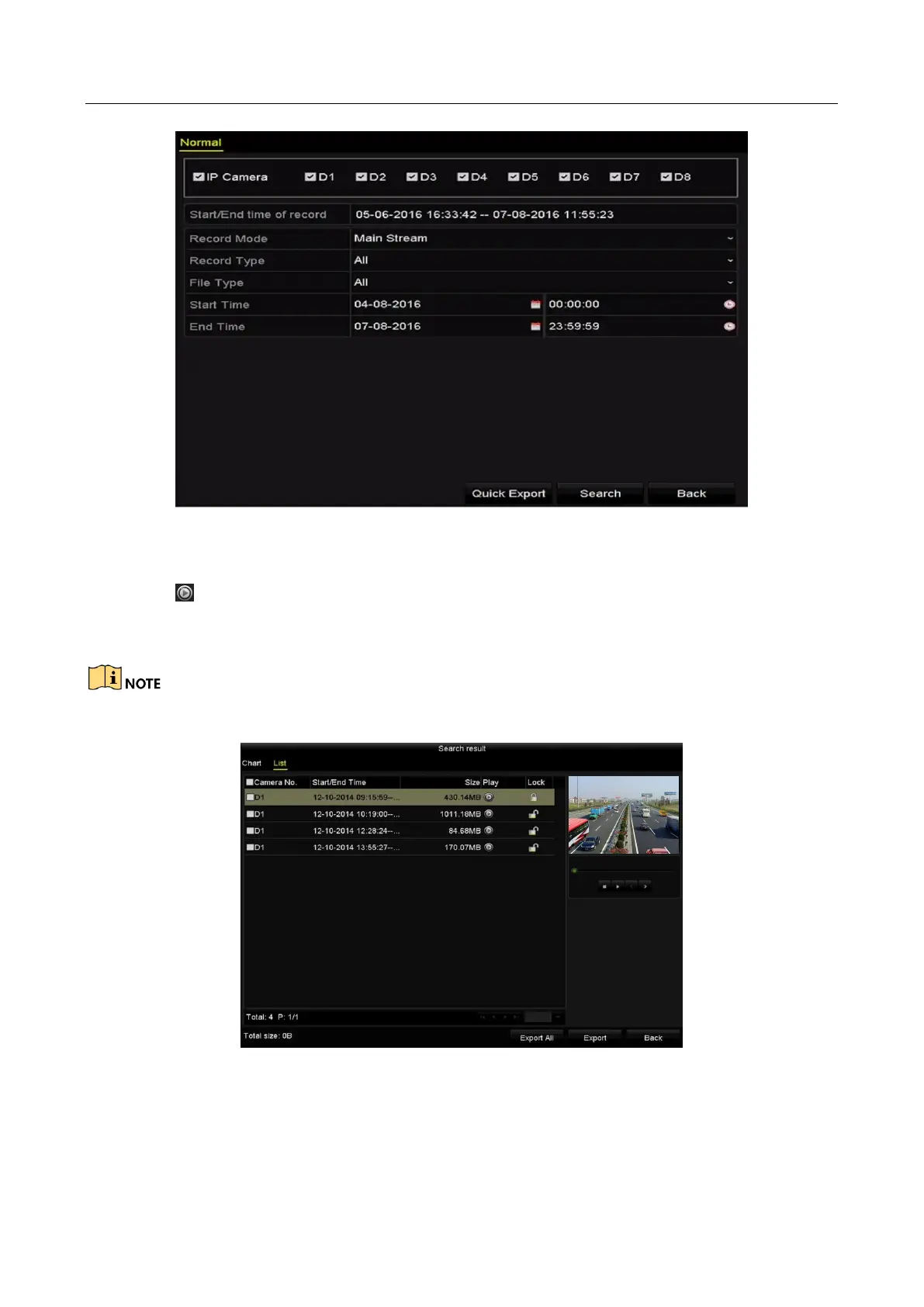

Figure 7-5 Normal Video Search for Backup
Step 4 Select video files or pictures from the Chart or List to export.
Click to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7-6 Result of Normal Video Search for Backup
Step 5 Export the video files or picture files.
Click Export All button to export all the files.

HIKVISION DS-7732NI-K4/16P Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.265, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
