HIKVISION DS-8000 Series User Manual

User Manual of Embedded Net DVR
Page 13 Total 113

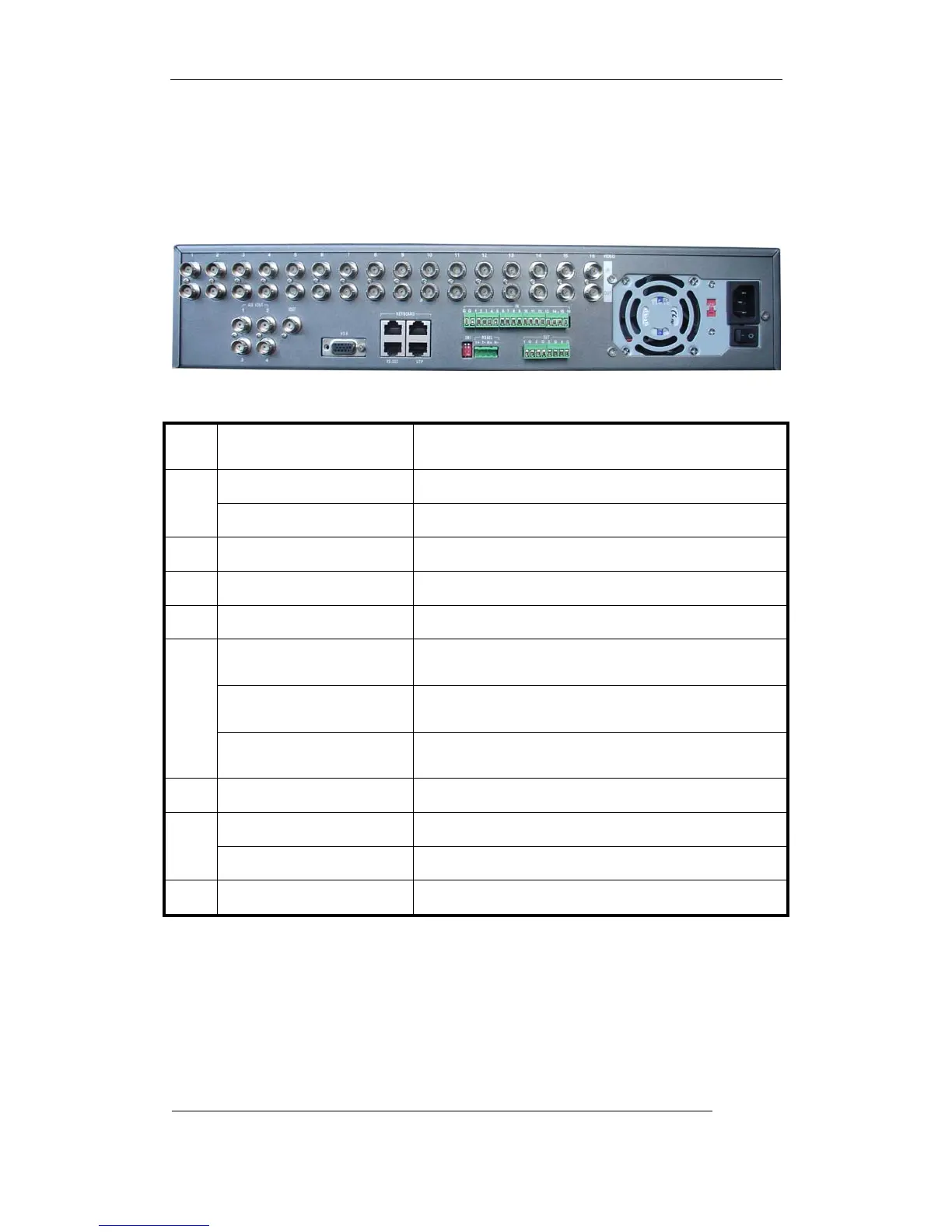

2.3.2 DS-8000HSI Rear Panel
Notice: This picture is for DS-8016HSI.
n
o p q r s t u
Index Physical Interface Description
Video Input
Standard BNC
1
Video Loop Output
Standard BNC, loop out.
2
AUX Video Output
4 Aux video outputs, only for DS-8016HSI.
3
Video Output
Connect monitor, output video and menu.
4
VGA Interface
VGA display.
Keyboard Interface
One is for Hikvision keyboard, and one is for DVR
cascade.
RS-232
Connect RS-232 devices. Refer to Appendix B for pin
definition.
5
UTP Network Interface
Connect network devices. Refer to Appendix B for pin
definition.
6
RS-485
PTZ connection. Refer to Appendix B for pin definition.
External Alarm Input
4/12/16 Alarm in
7
Relay Output
2/4 Alarm out
8
AC Input
Use switch to change AC voltage 220/110V.
