User Manual of Embedded Net DVR
Page 61 Total 113
5.10 Motion Detection Alarm
If you enable this function, when there is motion detected, DVR will make alarm.

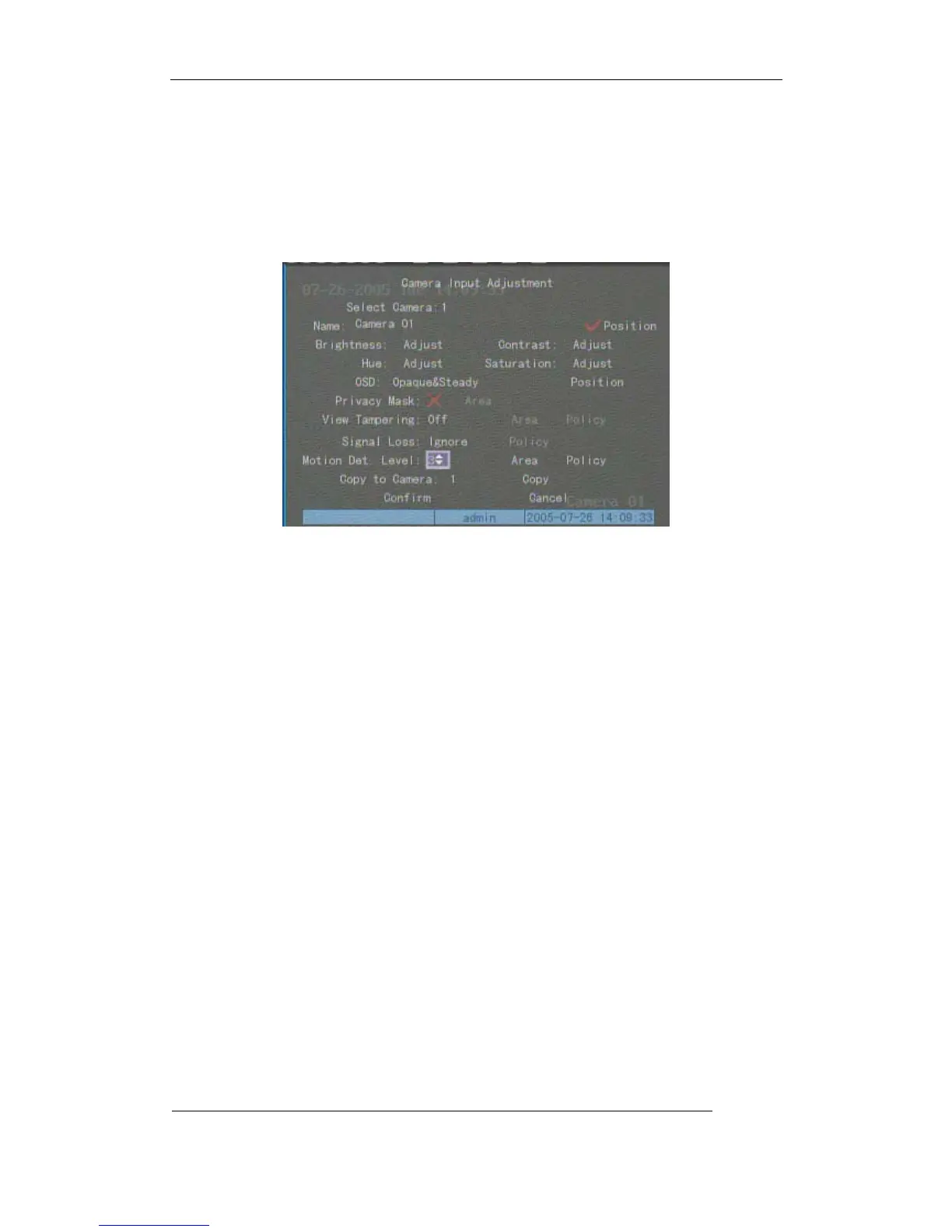

Step 1: Enter into “Image Setup” menu:
Step 2: Select camera: UseÇÈkey to select one camera.
Step 3: Select motion detection sensitivity: On the right side of “Motion Det. Level” item,
there is a list box. That is motion detection sensitivity. There are 7 options, from 0 (the lowest) to 5
(the highest) and “Off”. You can use↑↓keys to select one. If you select “Off” option, DVR will
not response even if there is motion detection. If you select other options, it will active “Motion
Area Setup” button and “Policy Setup” button. If you select low sensitivity such as 0, only when
there are great motion detection, DVR can response. On the other side, for high sensitivity such as 5,
DVR will response with small motion detection.
Step 4: Motion area setup: You must define motion areas so that DVR will response when
there is motion in those areas. Move “Active Frame” to “Area” buton on the right side of sensitivity
list box, pressENTERkey, you can enter into “Motion Area Setup” interface.
