All-in-One Server Quick Start Guide
10

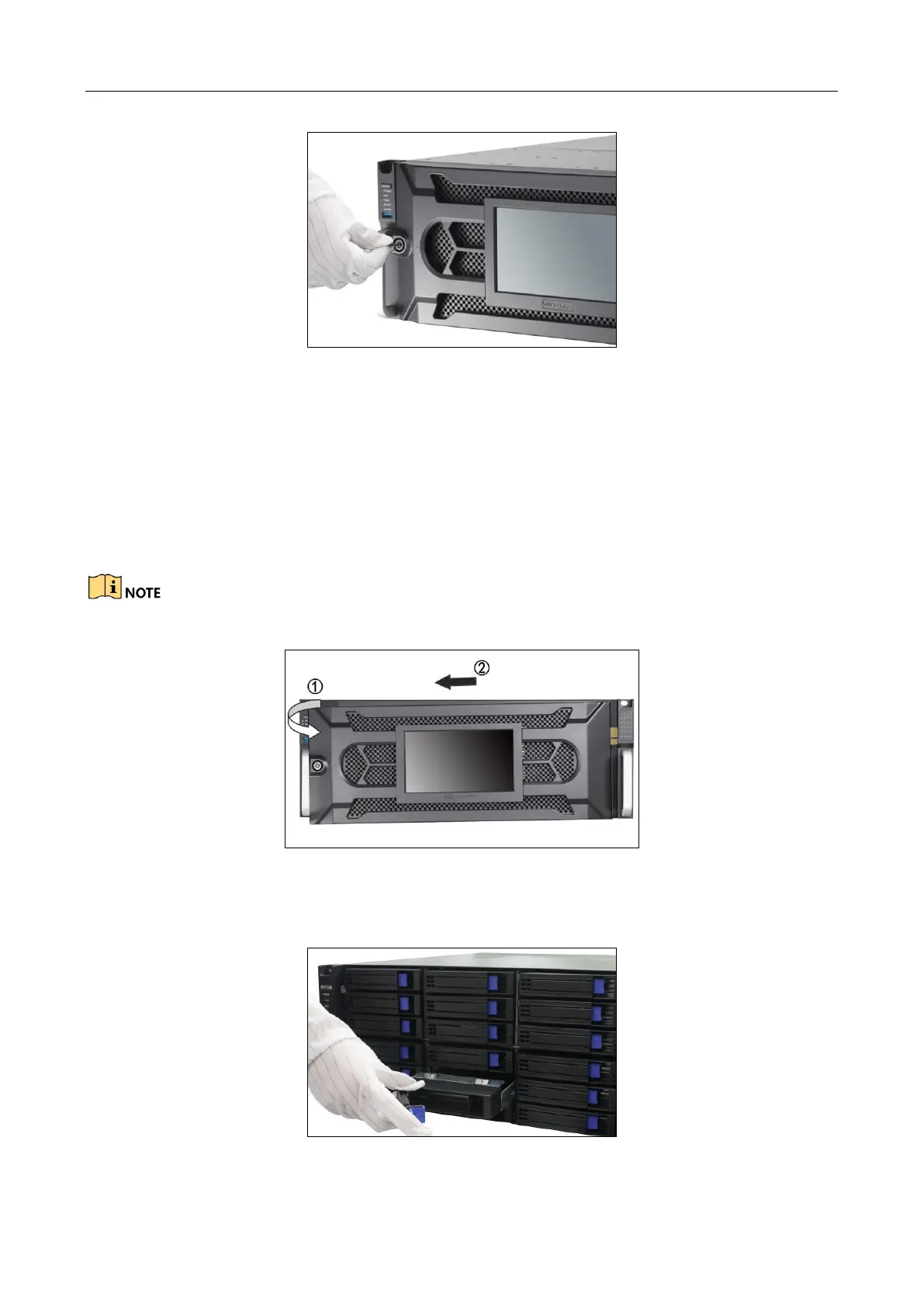

Figure 2-1 Unlock the Bezel
Step 2 To remove the bezel from front panel, follow steps below:
1) Slightly pull the bezel out of the device along the direction arrow ① and make it a
little above the left mounting ear. The angle between the bezel and the front panel
must be within 10°.
2) Pull the bezel out of the device along the direction arrow ②.
Handle with care to avoid damage.
Figure 2-2 Remove the Bezel
Step 3 Press the blue button to pop up the handle, hold the handle, and pull the HDD tray out of
the slot.
Figure 2-3 Pull out HDD Tray
