All-in-One Server Quick Start Guide
11
Step 4 Fix the HDD in the HDD tray.
1) Place an HDD in the HDD tray. The SATA interface must face the HDD tray bottom.
2) Adjust the HDD position. Ensure the HDD screw holes aligning with tray screw holes.
3) Use a screwdriver to fasten the four screws into the screw holes in both sides.

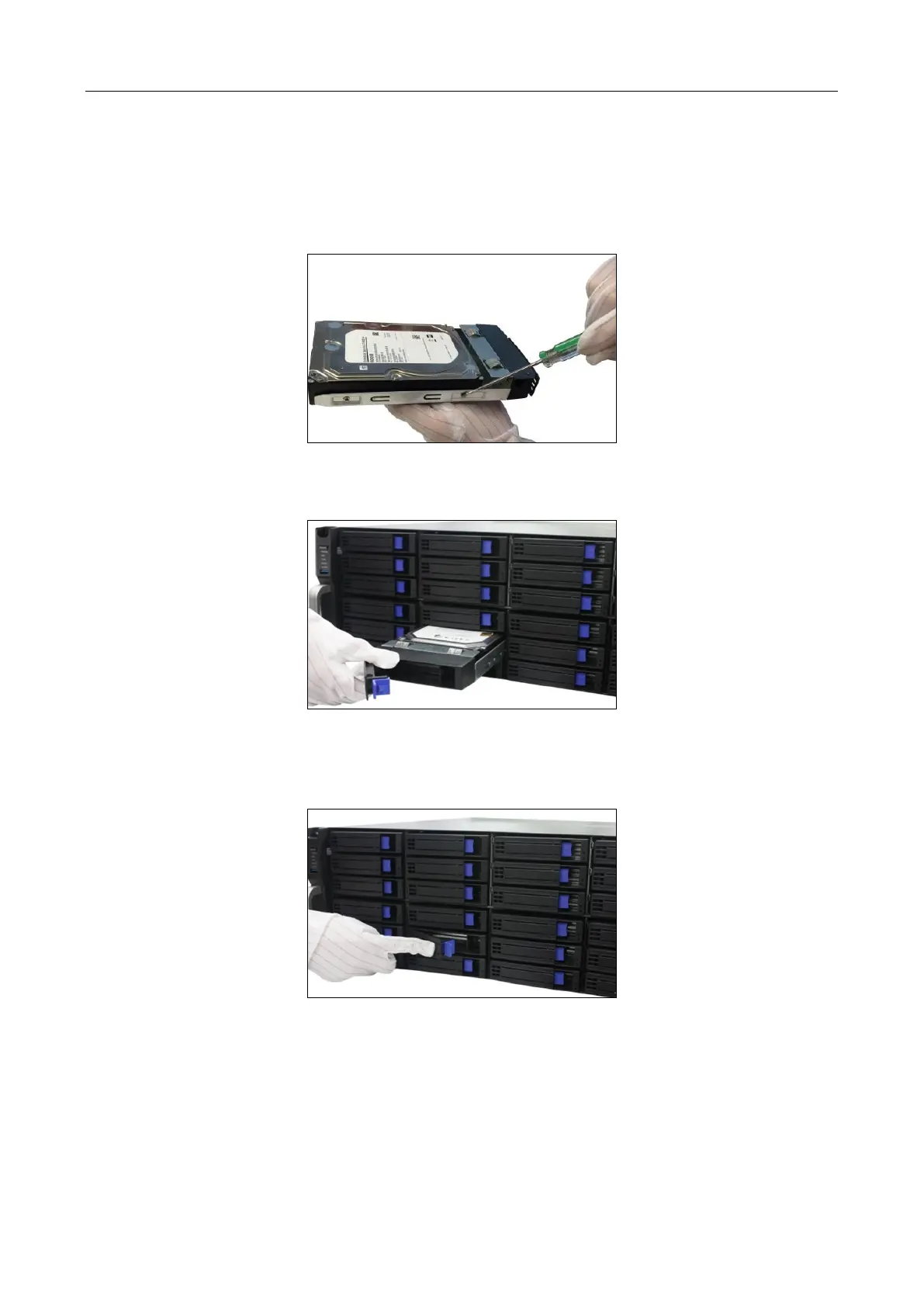

Figure 2-4 Fix the HDD
Step 5 Push the HDD tray back into the slot.
Figure 2-5 Push the HDD Tray into the Slot
Step 6 To fix the HDD tray, press the handle until you hear a click. Repeat above steps to install the
rest HDD trays.
Figure 2-6 Press the Handle
Step 7 Install the bezel back to front panel. And lock it with key.
To Next Page
