HIKVISION DS-9608NI-I8 User Manual

Network Video Recorder User Manual
175
10.2 Vehicle Detection
Purpose:
Vehicle Detection is available for the road traffic monitoring. In Vehicle Detection, the passed
vehicle can be detected and the picture of its license plate can be captured. You can send alarm
signal to notify the surveillance center and upload the captured picture to FTP server.
Step 1 Enter the VCA settings interface.
Menu> Camera> VCA
Step 2 Select the camera to configure the VCA.
Step 3 You can click the checkbox of Save VCA Picture to save the captured pictures of VCA
detection.
Step 4 Select the VCA detection type to Vehicle Detection.
Step 5 Check the Enable checkbox to enable this function.

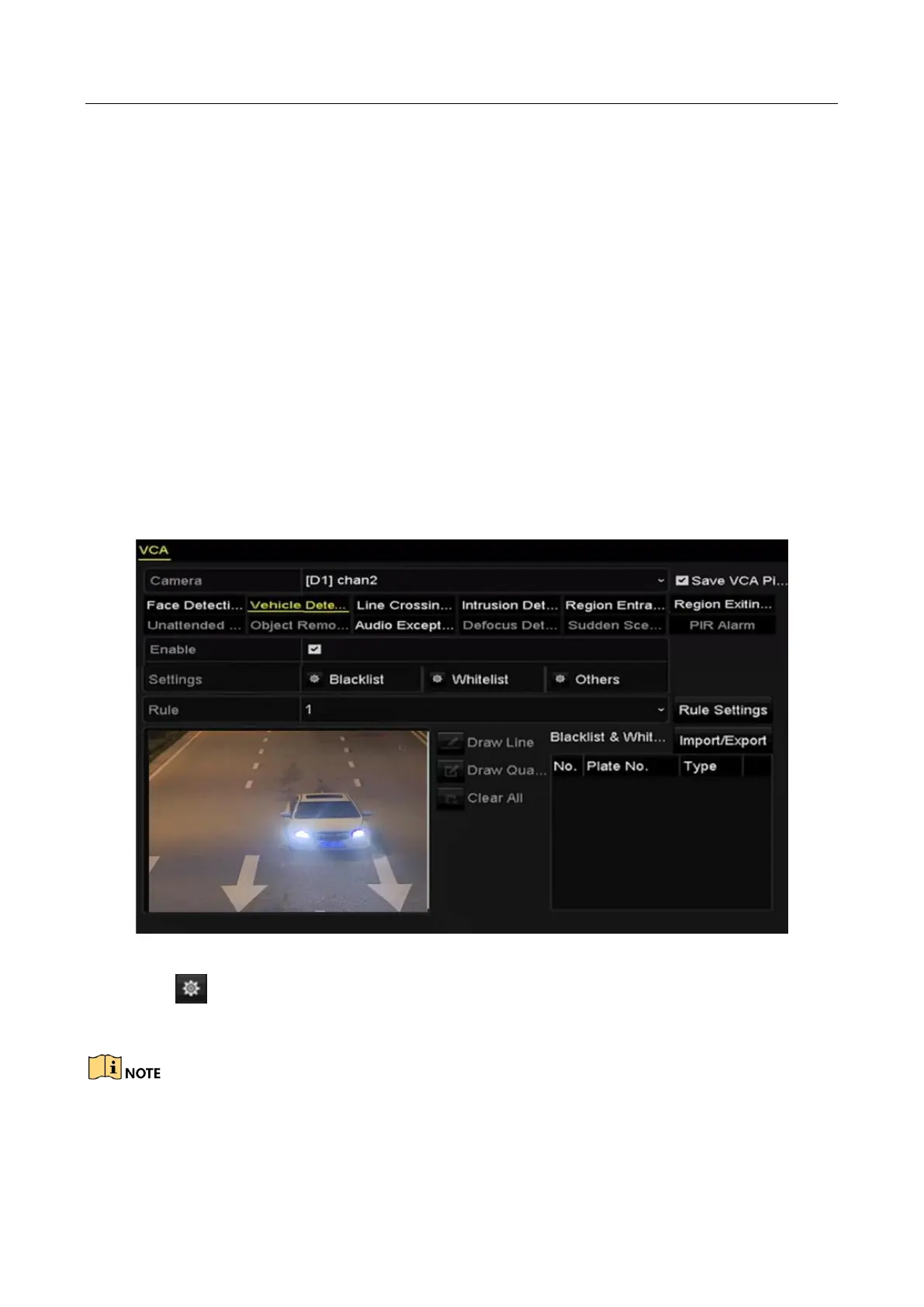

Figure 10-3 Set Vehicle Detection
Step 6 Click to configure the trigger channel, arming schedule and linkage actions for the
Blacklist, Whitelist and Others.
Up to 2, 048 backlists or whitelists are supported for import and export.

HIKVISION DS-9608NI-I8 Specifications

General

Model	DS-9608NI-I8
Category	Network Video Recorder
Video Input Channels	8
Decoding Format	H.265+/H.265/H.264+/H.264
Max Recording Resolution	12MP
Synchronous Playback	8 Channels
Hard Disk Interface	SATA
Outgoing Bandwidth	256 Mbps
USB Interface	2 × USB 2.0
Alarm In/Out	16/4
Operating Humidity	10% to 90%
Video Output	HDMI, VGA
HDMI Output Resolution	4K (3840 × 2160) / 30Hz
VGA Output Resolution	1920 × 1080
Audio Input	1 channel (RCA)
Audio Output	1 channel (RCA)
HDD Slots	8
Max HDD Capacity	10 TB per HDD
Total Max HDD Capacity	80 TB
Network Interface	1 × RJ45 10/100/1000 Mbps
Power Supply	100 to 240 VAC, 50 to 60 Hz
Working Temperature	-10°C to +55°C
