Network Video Recorder User Manual
231

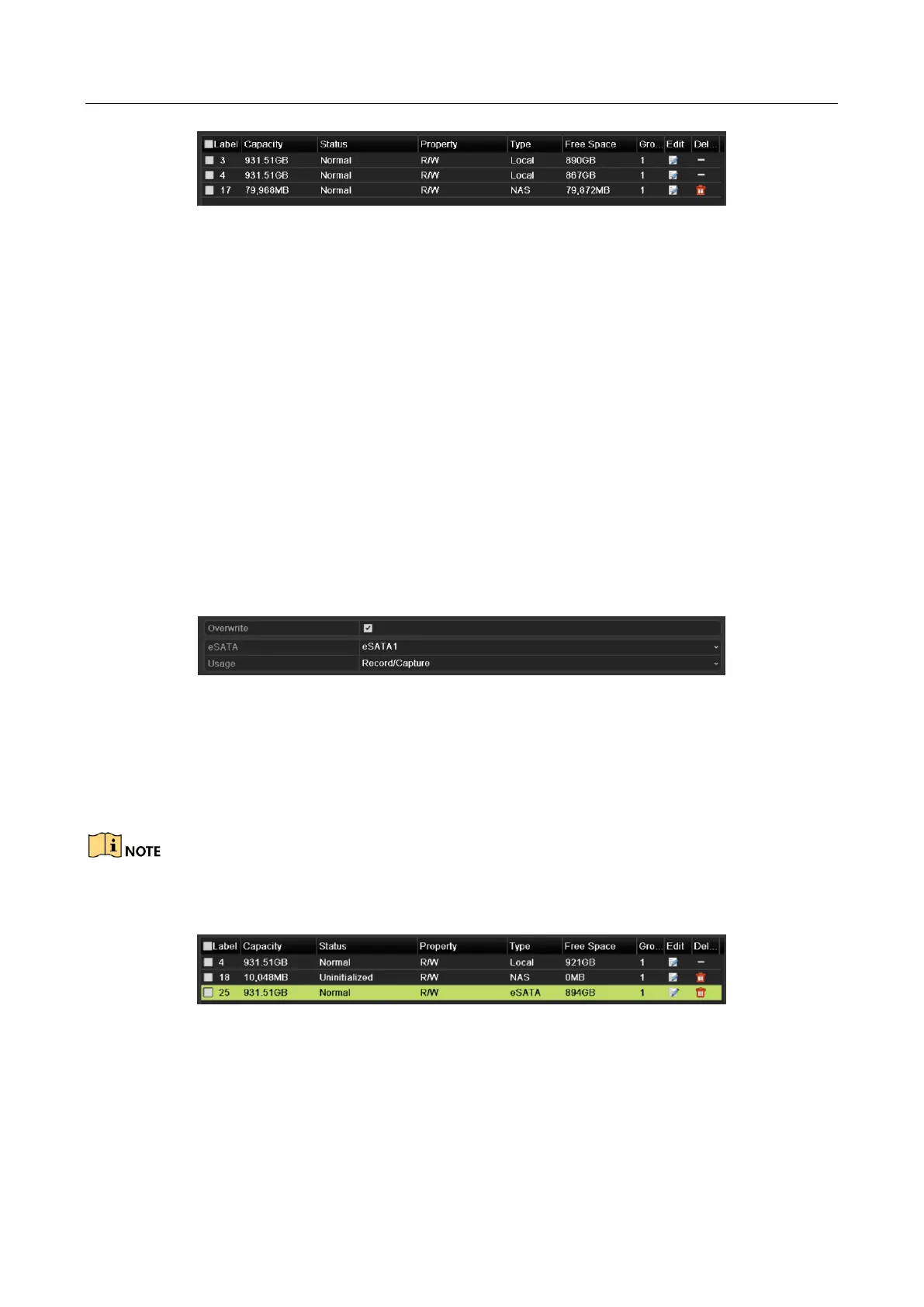

Figure 14-10 Initialize Added NetHDD
14.3 Managing eSATA
Purpose:
When there is an external eSATA device connected to NVR, you can configure eSATA for the use of
Record/Capture or Export, and you can manage the eSATA in the NVR.
Step 1 Enter the Advanced Record Settings interface.
Menu >Record>Advanced
Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.
Export: use the eSATA for backup. Refer to Backup using eSATA HDDs in Chapter Backing up
by Normal Video/Picture Search for operating instructions.
Record/Capture: use the eSATA for record/capture. Refer to the following steps for
operating instructions.
Figure 14-11 Set eSATA Mode
Step 3 When the eSATA type is selected to Record/Capture, enter the HDD Information interface.
Menu > HDD>General
Step 4 Edit the property of the selected eSATA, or initialize it is required.
Two storage modes can be configured for the eSATA when it is used for Record/Capture. Please
refer to Chapter Managing HDD Group and Chapter Configuring Quota Mode for details.
Figure 14-12 Initialize Added eSATA

HIKVISION DS-9608NI-I8 Specifications

General

Model	DS-9608NI-I8
Category	Network Video Recorder
Video Input Channels	8
Decoding Format	H.265+/H.265/H.264+/H.264
Max Recording Resolution	12MP
Synchronous Playback	8 Channels
Hard Disk Interface	SATA
Outgoing Bandwidth	256 Mbps
USB Interface	2 × USB 2.0
Alarm In/Out	16/4
Operating Humidity	10% to 90%
Video Output	HDMI, VGA
HDMI Output Resolution	4K (3840 × 2160) / 30Hz
VGA Output Resolution	1920 × 1080
Audio Input	1 channel (RCA)
Audio Output	1 channel (RCA)
HDD Slots	8
Max HDD Capacity	10 TB per HDD
Total Max HDD Capacity	80 TB
Network Interface	1 × RJ45 10/100/1000 Mbps
Power Supply	100 to 240 VAC, 50 to 60 Hz
Working Temperature	-10°C to +55°C
