HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
265

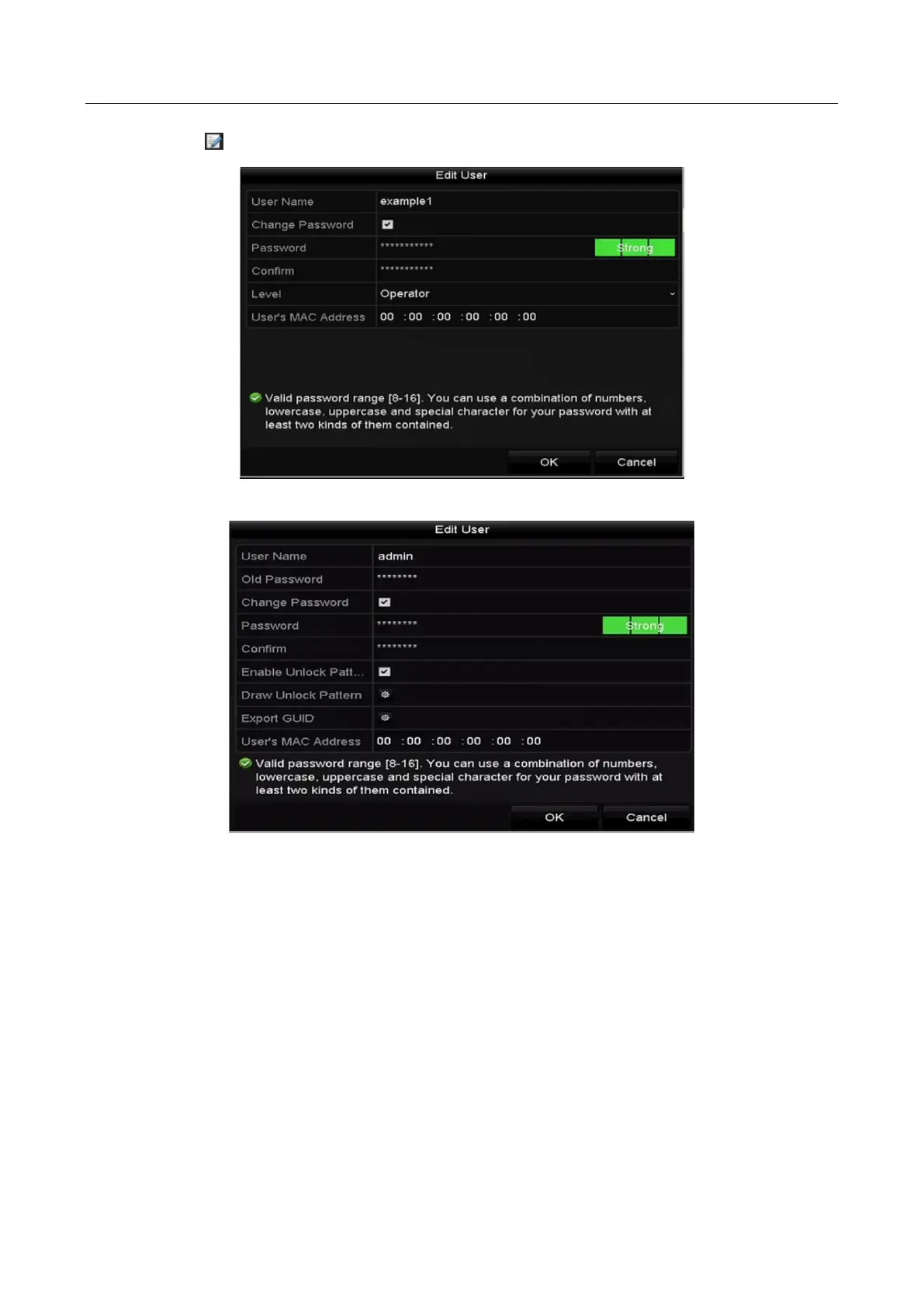

Step 3 Click the icon to enter the Edit User interface, as shown in Figure 17-12.
Figure 17-11 Edit User (Operator/Guest)
Figure 17-12 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
